Event Specification
Magnitude |
4.8 |
| Date & Time (UTC) | 2015-10-29 09:46:40.7 |
| Date & Time (Local) | 1394/8/7 13:16:40.7 |

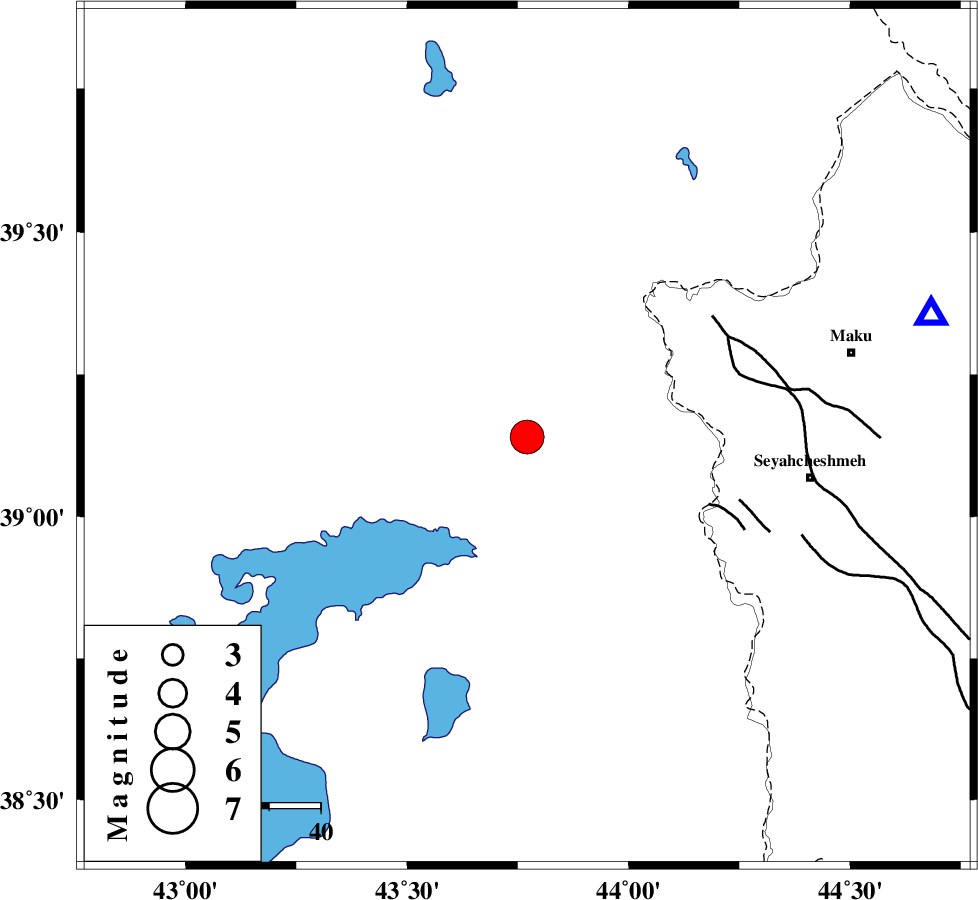

| Location | Lat:39.14 Lon: 43.771 |
| Region | Turkey, 56 km -West of Seyah Cheshmah |
Nearest Cities |
|
| 40 km North West of Sheykh selu-e bala, Azarbaijan Gharbi Province | |
| 42 km North West of Sheykh selu-e paein, Azarbaijan Gharbi Province | |
| 44 km South West of Arab dizaj, Azarbaijan Gharbi Province | |
| 47 km South West of Kelisa kandi, Azarbaijan Gharbi Province | |
| 52 km North West of Zavieh, Azarbaijan Gharbi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 38 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 123 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 134 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | >7.8 km |
| Error in Longitude | 6.5 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 102100 | IIEES | GRMI | N | 3254.3 | 1.08 | 2015-10-29 09:48:35 | 2015-10-31 10:48:00 | n |
| 102101 | IIEES | ZNJK | N | 553.5 | 0.92 | 2015-10-29 09:49:11 | 2015-10-31 10:48:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pn | E | 2015-10-29 09:47:33 | 0.52 | y | 359 | 95 | |||
| IIEES | GRMI | N | S | E | 2015-10-29 09:48:10 | -0.28 | y | 359 | 95 | |||
| IIEES | ZNJK | Z | Pn | E | 2015-10-29 09:47:51 | 0 | y | 512 | 121 | |||
| IIEES | ZNJK | N | Sg | E | 2015-10-29 09:49:03 | 0.12 | y | 512 | 121 | |||
| IIEES | SNGE | Z | Pn | E | 2015-10-29 09:47:56 | -0.1 | y | 550 | 144 | |||
| IIEES | SNGE | N | Sg | E | 2015-10-29 09:49:13 | 0.11 | y | 550 | 144 | |||
| IIEES | CHTH | Z | Pn | E | 2015-10-29 09:48:20 | -0.37 | y | 742 | 117 | |||
| IIEES | ASAO | Z | Pn | E | 2015-10-29 09:48:21 | -0.38 | y | 755 | 131 | |||
| IIEES | SHRO | Z | Pn | E | 2015-10-29 09:49:09 | 0.08 | y | 1135 | 104 | |||
| IIEES | ZHSF | Z | Pn | E | 2015-10-29 09:50:41 | 0.02 | y | 1882 | 119 | |||
