Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2016-05-10 17:49:30.6 |
| Date & Time (Local) | 1395/2/21 22:19:30.6 |

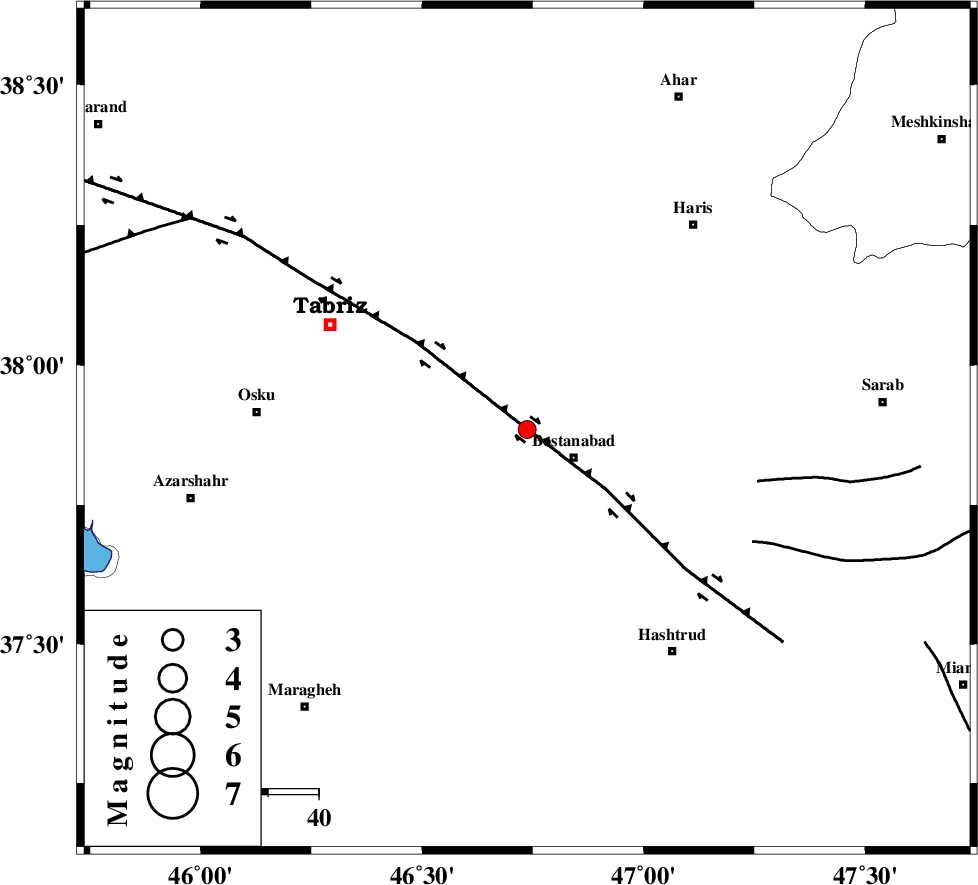

| Location | Lat:37.885 Lon: 46.737 |
| Region | Azarbaijan Sharghi Province, 11 km -West of Bostanabad |
Nearest Cities |
|
| 6 km North of Haj aqa, Azarbaijan Sharghi Province | |
| 7 km of Yusefabad, Azarbaijan Sharghi Province | |
| 11 km North West of Bostanabad, Azarbaijan Sharghi Province | |
| 13 km North of Bonah kahl, Azarbaijan Sharghi Province | |
| 15 km East of Saeedabad, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 5 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 47 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 79 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 6.3 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106090 | IIEES | GRMI | E | 69.1 | 0.23 | 2016-05-10 17:50:13 | 2016-05-11 06:03:00 | n |
| 106091 | IIEES | GRMI | N | 76.3 | 0.25 | 2016-05-10 17:50:16 | 2016-05-11 06:03:00 | n |
| 106092 | IIEES | ZNJK | N | 45.8 | 0.33 | 2016-05-10 17:50:35 | 2016-05-11 06:03:00 | n |
| 106093 | IIEES | ZNJK | E | 43 | 0.33 | 2016-05-10 17:50:36 | 2016-05-11 06:03:00 | n |
| 106094 | IIEES | CHTH | N | 3.2 | 0.53 | 2016-05-10 17:51:38 | 2016-05-11 06:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2016-05-10 17:49:55 | 0.51 | y | 144 | 44 | |||
| IIEES | GRMI | E | Sg | E | 2016-05-10 17:50:12 | -0.26 | y | 144 | 44 | |||
| IIEES | ZNJK | Z | Pg | E | 2016-05-10 17:50:06 | -0.13 | y | 219 | 127 | |||
| IIEES | ZNJK | N | Sg | E | 2016-05-10 17:50:32 | -0.12 | y | 219 | 127 | |||
| IIEES | MAKU | Z | Pn | E | 2016-05-10 17:50:08 | -0.21 | y | 242 | 313 | |||
| IIEES | CHTH | Z | Pn | E | 2016-05-10 17:50:42 | 8.68 | n | 4 | 448 | 118 | ||
| IIEES | ASAO | Z | Pn | E | 2016-05-10 17:50:37 | 0.33 | y | 474 | 140 | |||
| IIEES | MRVT | Z | Pn | E | 2016-05-10 17:51:20 | -0.07 | y | 824 | 89 | |||
