Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2016-05-21 10:36:59.9 |
| Date & Time (Local) | 1395/3/1 15:06:59.9 |

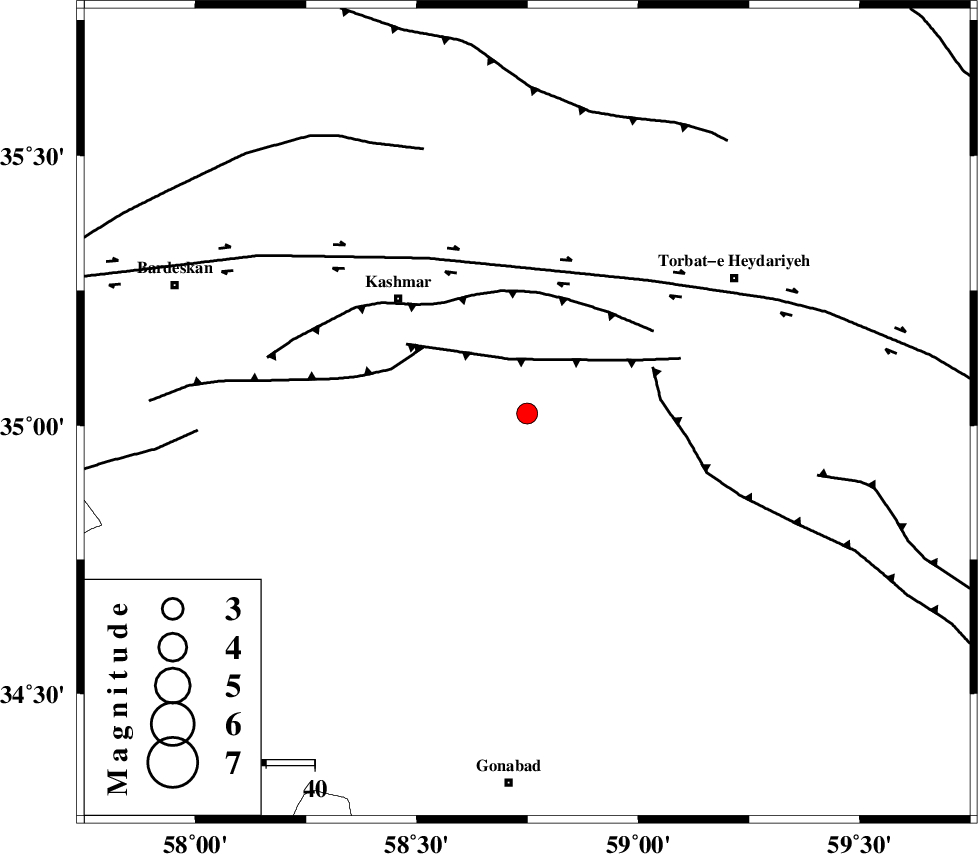

| Location | Lat:35.022 Lon: 58.749 |
| Region | Khorasan(center) Province, 36 km South-East of Kashmar |
Nearest Cities |
|
| 3 km North of Feizabad, Khorasan(center) Province | |
| 10 km North of Mahneh, Khorasan(center) Province | |
| 31 km South West of Shadmehr, Khorasan(center) Province | |
| 36 km South East of Kashmar, Khorasan(center) Province | |
| 37 km North East of Yoonesi, Khorasan(center) Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| DUGHABAD_F (Length: 62 km) , Distance to epicenter: 12 km | |
| KASHMAR_F (Length: 91 km) , Distance to epicenter: 25 km | |
| MEHDIABAD_F (Length: 64 km) , Distance to epicenter: 25 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >3 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 6.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106250 | IIEES | SHRT | N | 88.3 | 0.43 | 2016-05-21 10:38:04 | 2016-05-23 09:40:00 | n |
| 106251 | IIEES | SHRT | E | 122.2 | 0.35 | 2016-05-21 10:38:08 | 2016-05-23 09:40:00 | n |
| 106252 | IIEES | TABS | E | 45.1 | 0.49 | 2016-05-21 10:38:04 | 2016-05-23 09:40:00 | n |
| 106253 | IIEES | TABS | N | 103.4 | 0.15 | 2016-05-21 10:38:09 | 2016-05-23 09:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pg | E | 2016-05-21 10:37:34 | 0.05 | y | 208 | 137 | |||
| IIEES | SHRT | N | Sg | E | 2016-05-21 10:37:59 | 0.05 | y | 208 | 137 | |||
| IIEES | TABS | Z | Pg | E | 2016-05-21 10:37:34 | -0.34 | y | 214 | 225 | |||
| IIEES | TABS | N | Sg | E | 2016-05-21 10:38:00 | 0.39 | y | 214 | 225 | |||
| IIEES | SHRO | Z | Pn | E | 2016-05-21 10:37:40 | -0.26 | y | 271 | 295 | |||
| IIEES | BJRD | Z | Pn | E | 2016-05-21 10:37:47 | 0.11 | y | 321 | 338 | |||
| IIEES | BSRN | Z | Pn | E | 2016-05-21 10:37:49 | -0.1 | y | 341 | 174 | |||
| IIEES | MRVT | Z | Pn | E | 2016-05-21 10:37:54 | 0.39 | y | 378 | 322 | |||
| IIEES | YZKH | Z | Pn | E | 2016-05-21 10:38:07 | -0.15 | y | 483 | 234 | |||
| IIEES | NASN | Z | Pn | E | 2016-05-21 10:38:22 | -0.22 | y | 602 | 248 | |||
