Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2016-06-11 22:10:43.9 |
| Date & Time (Local) | 1395/3/23 02:40:43.9 |

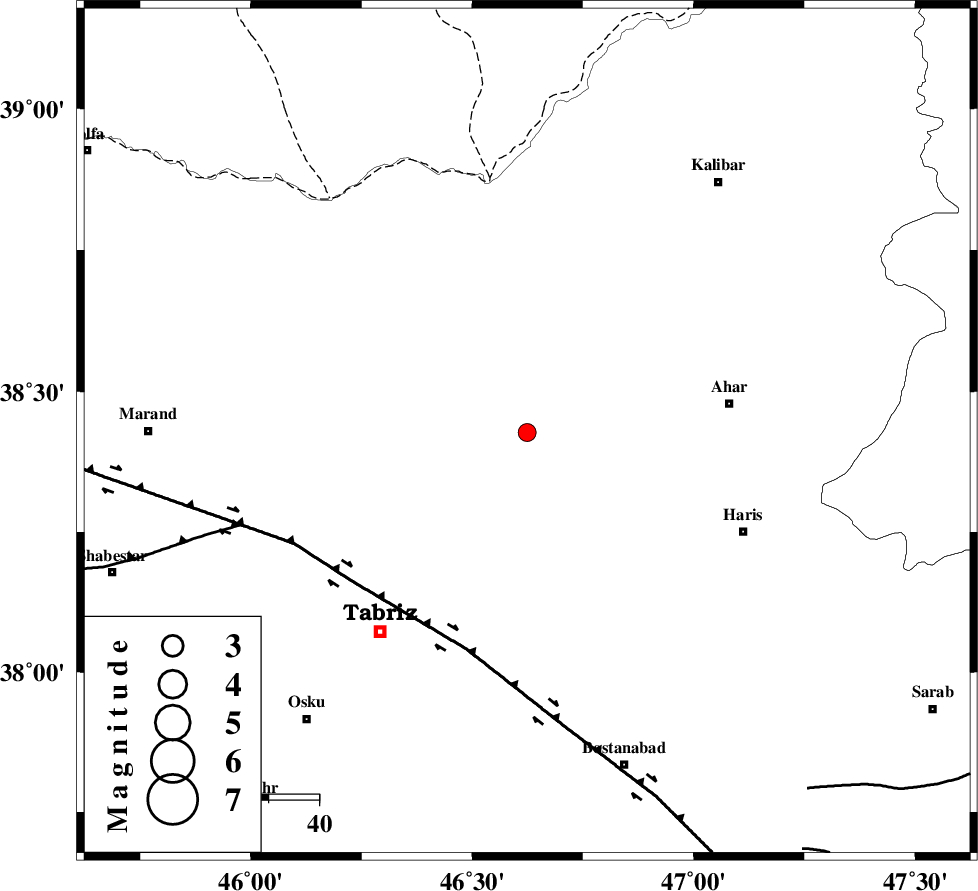

| Location | Lat:38.427 Lon: 46.624 |
| Region | Azarbaijan Sharghi Province, 40 km -West of Ahar |
Nearest Cities |
|
| 6 km of Varzagan, Azarbaijan Sharghi Province | |
| 15 km North of Sarand, Azarbaijan Sharghi Province | |
| 16 km South of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 24 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 26 km South West of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 45 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 59 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 90 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106741 | IIEES | GRMI | E | 116.5 | 0.28 | 2016-06-11 22:11:19 | 2016-06-12 04:29:00 | n |
| 106742 | IIEES | GRMI | N | 93.2 | 0.3 | 2016-06-11 22:11:20 | 2016-06-12 04:29:00 | n |
| 106743 | IIEES | DAGI | E | 14.5 | 0.58 | 2016-06-11 22:12:24 | 2016-06-12 04:29:00 | n |
| 106744 | IIEES | DAGI | N | 22.6 | 0.52 | 2016-06-11 22:12:26 | 2016-06-12 04:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2016-06-11 22:11:03 | -0.32 | y | 118 | 69 | |||
| IIEES | GRMI | N | Sg | E | 2016-06-11 22:11:18 | 0.21 | y | 118 | 69 | |||
| IIEES | MAKU | Z | Pg | E | 2016-06-11 22:11:16 | -0.02 | y | 197 | 302 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-06-11 22:11:25 | 0.49 | y | 267 | 136 | |||
| IIEES | ZNJK | N | Sg | E | 2016-06-11 22:11:59 | -0.17 | y | 267 | 136 | |||
| IIEES | DAGI | Z | Pn | E | 2016-06-11 22:11:33 | -0.2 | y | 334 | 119 | |||
