Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2017-01-24 08:54:09.7 |
| Date & Time (Local) | 1395/11/5 12:24:09.7 |

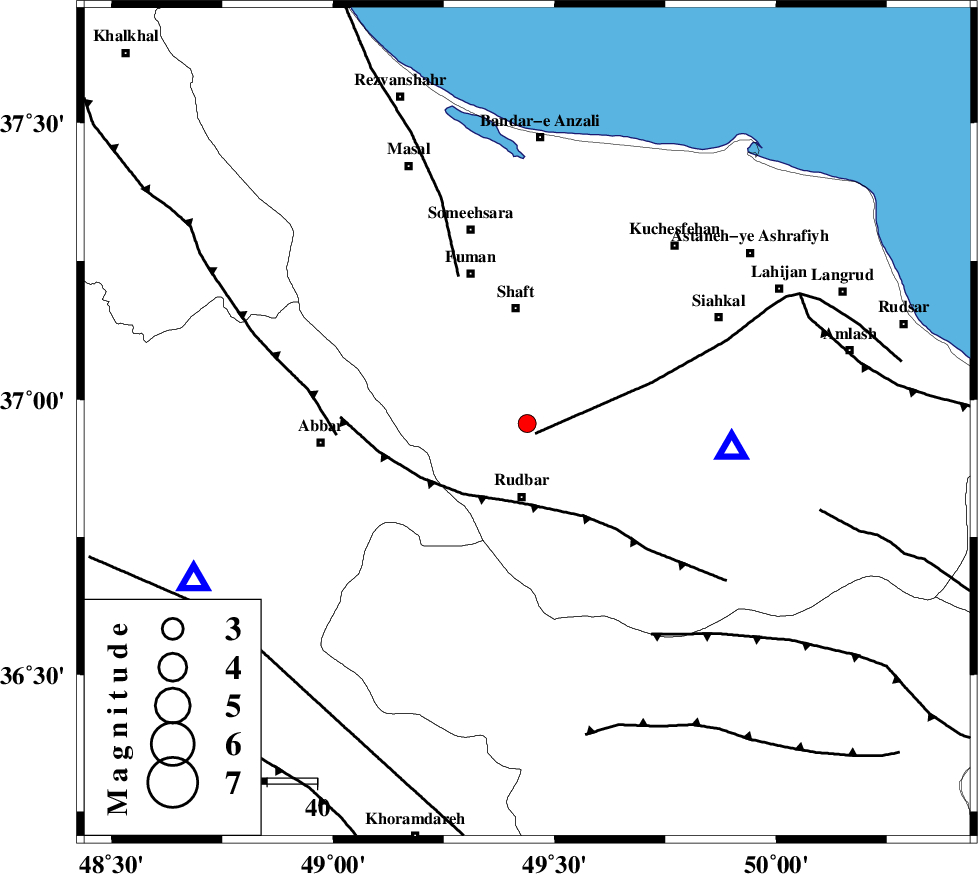

| Location | Lat:36.956 Lon: 49.438 |
| Region | Gilan Province, 15 km North of Rudbar |
Nearest Cities |
|
| 6 km of Nasir mahalleh, Gilan Province | |
| 12 km North of Rostamabad, Gilan Province | |
| 15 km North of Rudbar, Gilan Province | |
| 19 km West of Eskolak, Gilan Province | |
| 19 km West of Shahr-e bijar, Gilan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| LAHIJAN_F (Length: 92 km) , Distance to epicenter: 3 km | |
| RUDBAR_F (Length: 93 km) , Distance to epicenter: 16 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 33 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 5.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 112536 | IIEES | GIDE | E | 1108.2 | 0.21 | 2017-01-24 08:54:23 | 2017-01-24 11:49:00 | n |
| 112537 | IIEES | GIDE | N | 828 | 0.26 | 2017-01-24 08:54:23 | 2017-01-24 11:49:00 | n |
| 112538 | IIEES | THKV | N | 58.5 | 0.21 | 2017-01-24 08:55:01 | 2017-01-24 11:49:00 | n |
| 112539 | IIEES | THKV | E | 83.8 | 0.28 | 2017-01-24 08:55:10 | 2017-01-24 11:49:00 | n |
| 112540 | IIEES | CHTH | N | 34.9 | 0.23 | 2017-01-24 08:55:06 | 2017-01-24 11:49:00 | n |
| 112541 | IIEES | CHTH | E | 27.6 | 0.17 | 2017-01-24 08:55:06 | 2017-01-24 11:49:00 | n |
| 112542 | IIEES | GRMI | N | 27.9 | 0.29 | 2017-01-24 08:55:23 | 2017-01-24 11:49:00 | n |
| 112543 | IIEES | GRMI | E | 28 | 0.61 | 2017-01-24 08:55:23 | 2017-01-24 11:49:00 | n |
| 112544 | IIEES | DAMV | E | 23.1 | 0.42 | 2017-01-24 08:55:28 | 2017-01-24 11:49:00 | n |
| 112545 | IIEES | DAMV | N | 27.4 | 0.42 | 2017-01-24 08:55:28 | 2017-01-24 11:49:00 | n |
| 112546 | IIEES | GHVR | E | 26.8 | 0.58 | 2017-01-24 08:55:47 | 2017-01-24 11:49:00 | n |
| 112547 | IIEES | GHVR | N | 13.2 | 0.31 | 2017-01-24 08:55:52 | 2017-01-24 11:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GIDE | Z | Pg | E | 2017-01-24 08:54:17 | -0.06 | y | 42.2 | 95 | |||
| IIEES | GIDE | N | Sg | E | 2017-01-24 08:54:23 | -0.1 | y | 42.2 | 95 | |||
| IIEES | ZNJK | Z | Pg | E | 2017-01-24 08:54:22 | -0.16 | y | 74.3 | 245 | |||
| IIEES | THKV | Z | Pg | E | 2017-01-24 08:54:39 | 0.67 | y | 173 | 131 | |||
| IIEES | CHTH | Z | Pg | E | 2017-01-24 08:54:41 | -0.19 | y | 191 | 127 | |||
| IIEES | CHTH | N | Sg | E | 2017-01-24 08:55:04 | -0.11 | y | 191 | 127 | |||
| IIEES | GRMI | Z | Pn | E | 2017-01-24 08:54:48 | 0.08 | y | 247 | 327 | |||
| IIEES | DAMV | Z | Pn | E | 2017-01-24 08:54:53 | 2.76 | n | 4 | 271 | 122 | ||
| IIEES | ASAO | Z | Pn | E | 2017-01-24 08:54:51 | 0.06 | y | 272 | 169 | |||
| IIEES | SNGE | Z | Pn | E | 2017-01-24 08:54:55 | 3.31 | n | 4 | 280 | 223 | ||
| IIEES | GHVR | Z | Pn | E | 2017-01-24 08:54:56 | -0.2 | y | 320 | 149 | |||
