Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2017-04-02 04:39:18.9 |
| Date & Time (Local) | 1396/1/13 09:09:18.9 |

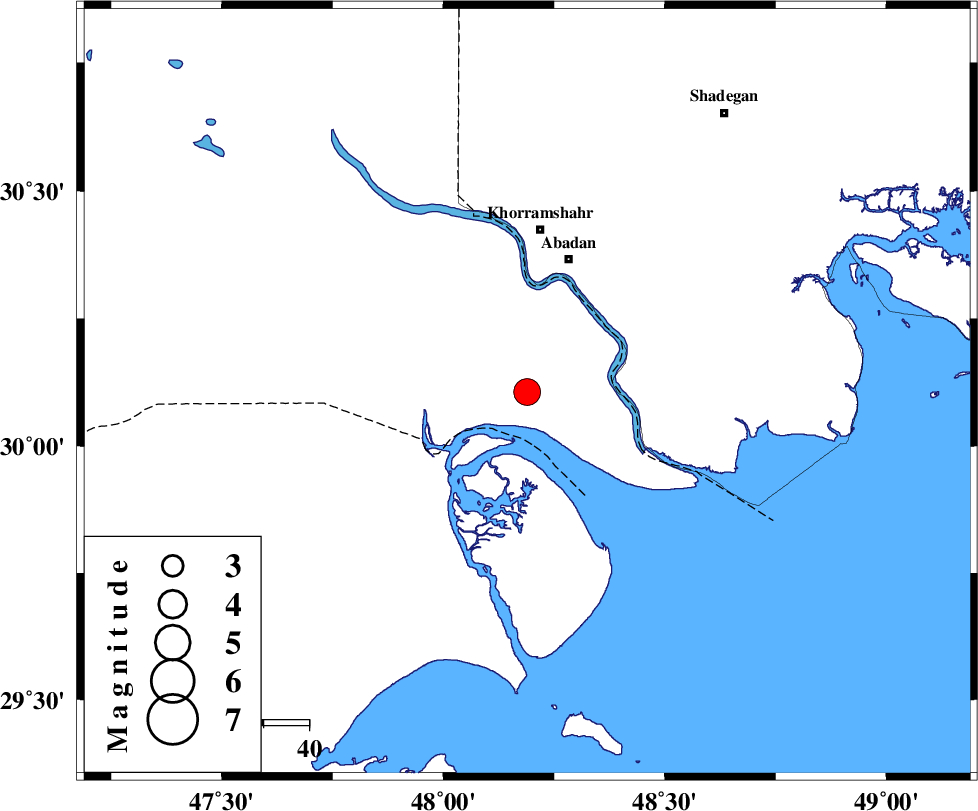

| Location | Lat:30.106 Lon: 48.189 |
| Region | Iraq, 36 km South of Khorramshahr |
Nearest Cities |
|
| 28 km South West of Farrokhzad, Khoozestan Province | |
| 30 km South of Abadan, Khoozestan Province | |
| 36 km South of Khorramshahr, Khoozestan Province | |
| 41 km South of Polno, Khoozestan Province | |
| 46 km North West of Arvandkenar, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 140 km | |
| Number of Phases | 14 |
| RMS | 0.3 |
| Number of Stations | 14 |
| Error in Latitude | >5.6 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 114401 | IIEES | AHRM | N | 427.7 | 0.33 | 2017-04-02 04:40:48 | 2017-04-03 05:02:00 | n |
| 114402 | IIEES | AHRM | E | 328.4 | 0.25 | 2017-04-02 04:40:48 | 2017-04-03 05:02:00 | n |
| 114403 | IIEES | ASAO | N | 42 | 0.61 | 2017-04-02 04:41:31 | 2017-04-03 05:02:00 | n |
| 114404 | IIEES | ASAO | E | 27.5 | 0.7 | 2017-04-02 04:41:32 | 2017-04-03 05:02:00 | n |
| 114405 | IIEES | NASN | E | 66.5 | 0.92 | 2017-04-02 04:41:32 | 2017-04-03 05:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2017-04-02 04:40:07 | 0.05 | y | 331 | 114 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-04-02 04:40:21 | 0.46 | y | 437 | 22 | |||
| IIEES | ASAO | Z | Pn | E | 2017-04-02 04:40:31 | 0.27 | y | 522 | 19 | |||
| IIEES | NASN | Z | Pn | E | 2017-04-02 04:40:33 | 0.3 | y | 531 | 55 | |||
| IIEES | SNGE | Z | Pn | E | 2017-04-02 04:40:35 | -0.24 | y | 559 | 352 | |||
| IIEES | YZKH | Z | Pn | E | 2017-04-02 04:40:48 | -0.29 | y | 660 | 66 | |||
| IIEES | CHTH | Z | Pn | E | 2017-04-02 04:40:53 | -0.59 | y | 700 | 22 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-04-02 04:40:57 | -0.05 | y | 730 | 3 | |||
| IIEES | GIDE | Z | Pn | E | 2017-04-02 04:41:02 | 0.01 | y | 773 | 11 | |||
| IIEES | KRBR | Z | Pn | E | 2017-04-02 04:41:09 | -0.26 | y | 827 | 89 | |||
| IIEES | BNDS | Z | Pn | E | 2017-04-02 04:41:10 | 0.28 | y | 835 | 109 | |||
| IIEES | TABS | Z | Pn | E | 2017-04-02 04:41:21 | -0.7 | y | 931 | 63 | |||
| IIEES | SHRO | Z | Pn | E | 2017-04-02 04:41:28 | 0.09 | y | 981 | 46 | |||
| IIEES | BSRN | Z | Pn | E | 2017-04-02 04:41:38 | -0.25 | y | 1064 | 76 | |||
