Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2017-06-10 08:40:04.3 |
| Date & Time (Local) | 1396/3/20 13:10:04.3 |

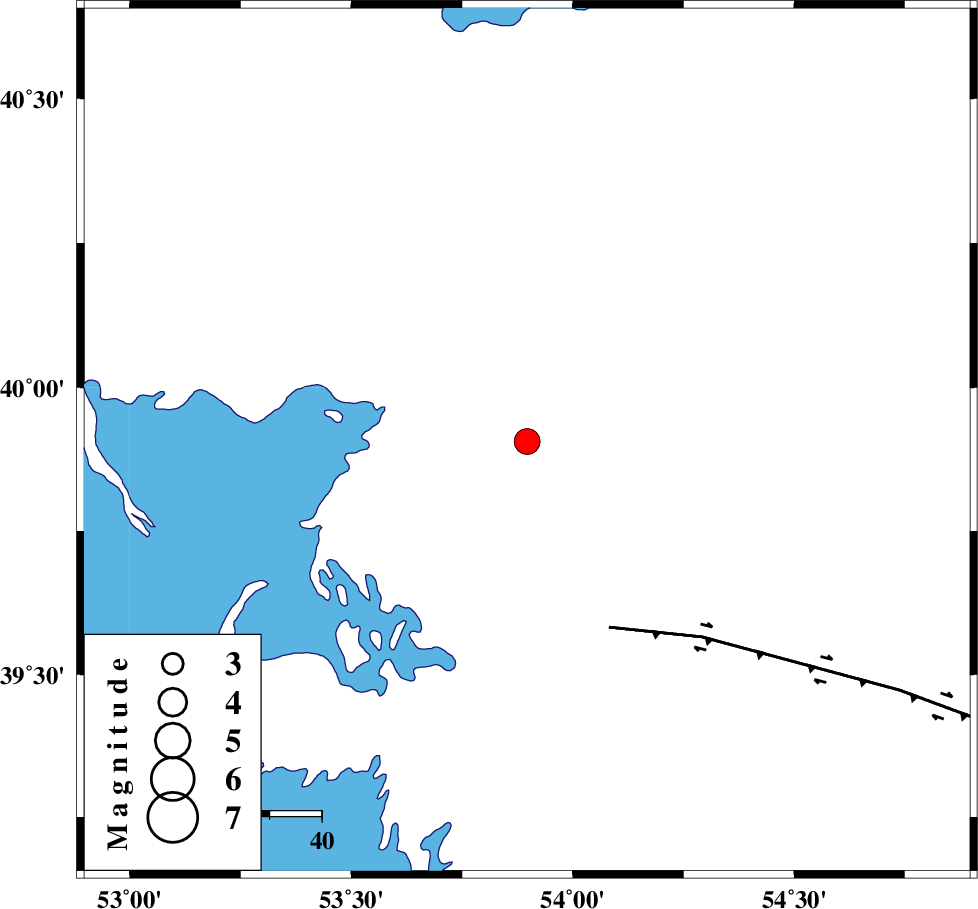

| Location | Lat:39.906 Lon: 53.897 |
| Region | Turkmenistan, 80 km South-East of Turkmenbasi |
Nearest Cities |
|
| 80 km South East of Turkmenbasi, Turkmenistan Province | |
| 258 km North West of Karand, Golestan Province | |
| 267 km North West of Dashliborun, Golestan Province | |
| 274 km North West of Qareh aghaj, Golestan Province | |
| 282 km North West of Enchehborun, Golestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 39 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 10 |
| Error in Latitude | >7.5 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 116670 | IIEES | MRVT | N | 67.2 | 0.37 | 2017-06-10 08:41:24 | 2017-06-11 05:18:00 | n |
| 116671 | IIEES | BJRD | E | 103.5 | 0.44 | 2017-06-10 08:41:43 | 2017-06-11 05:18:00 | n |
| 116672 | IIEES | BJRD | N | 115.2 | 0.31 | 2017-06-10 08:41:44 | 2017-06-11 05:18:00 | n |
| 116673 | IIEES | GIDE | E | 28.3 | 0.36 | 2017-06-10 08:42:01 | 2017-06-11 05:18:00 | n |
| 116674 | IIEES | GIDE | N | 30.8 | 0.19 | 2017-06-10 08:42:24 | 2017-06-11 05:18:00 | n |
| 116675 | IIEES | DAMV | N | 56.8 | 0.39 | 2017-06-10 08:42:07 | 2017-06-11 05:18:00 | n |
| 116676 | IIEES | DAMV | E | 56.5 | 0.46 | 2017-06-10 08:42:08 | 2017-06-11 05:18:00 | n |
| 116677 | IIEES | CHTH | N | 32.1 | 0.35 | 2017-06-10 08:42:07 | 2017-06-11 05:18:00 | n |
| 116678 | IIEES | CHTH | E | 32.6 | 0.41 | 2017-06-10 08:42:08 | 2017-06-11 05:18:00 | n |
| 116679 | IIEES | THKV | N | 46.5 | 0.4 | 2017-06-10 08:42:09 | 2017-06-11 05:18:00 | n |
| 116680 | IIEES | THKV | E | 43.6 | 0.3 | 2017-06-10 08:42:11 | 2017-06-11 05:18:00 | n |
| 116681 | IIEES | ZNJK | N | 22.1 | 0.59 | 2017-06-10 08:42:23 | 2017-06-11 05:18:00 | n |
| 116682 | IIEES | ZNJK | E | 22.1 | 0.34 | 2017-06-10 08:42:25 | 2017-06-11 05:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pn | E | 2017-06-10 08:40:50 | -0.22 | y | 314 | 142 | |||
| IIEES | BJRD | Z | Pn | E | 2017-06-10 08:41:00 | -0.05 | y | 391 | 128 | |||
| IIEES | SHRO | Z | Pn | E | 2017-06-10 08:41:10 | 0.27 | y | 471 | 156 | |||
| IIEES | GIDE | Z | Pn | E | 2017-06-10 08:41:11 | -0.15 | y | 480 | 228 | |||
| IIEES | DAMV | Z | Pn | E | 2017-06-10 08:41:15 | 0.23 | y | 504 | 200 | |||
| IIEES | CHTH | Z | Pn | E | 2017-06-10 08:41:14 | -0.38 | y | 506 | 210 | |||
| IIEES | THKV | Z | Pn | E | 2017-06-10 08:41:16 | 0.18 | y | 516 | 212 | |||
| IIEES | GRMI | Z | Pn | E | 2017-06-10 08:41:18 | 0.25 | y | 531 | 259 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-06-10 08:41:24 | -0.23 | y | 580 | 233 | |||
| IIEES | TABS | Z | Pn | E | 2017-06-10 08:41:45 | 0.28 | y | 751 | 157 | |||
