Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2018-08-11 15:03:34.7 |
| Date & Time (Local) | 1397/5/20 19:33:34.7 |

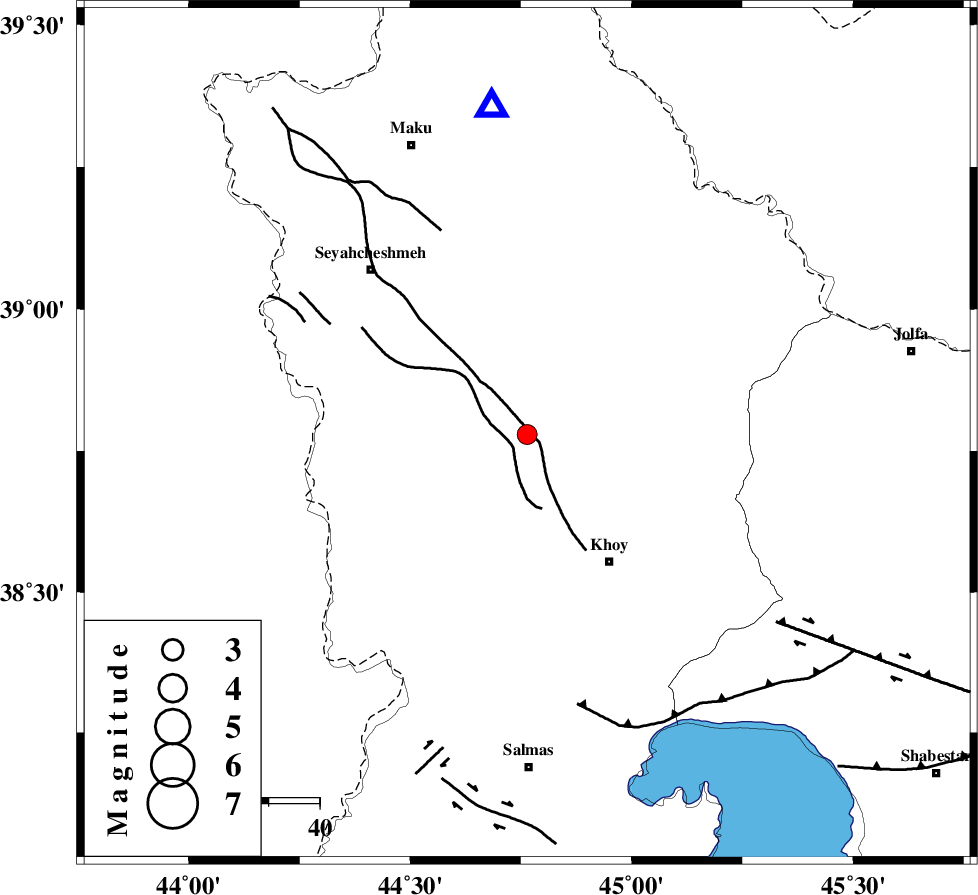

| Location | Lat:38.779 Lon: 44.764 |
| Region | Azarbaijan Gharbi Province, 30 km North-West of Khoy |
Nearest Cities |
|
| 19 km East of Zarabad, Azarbaijan Gharbi Province | |
| 20 km South West of Bastam, Azarbaijan Gharbi Province | |
| 22 km North West of Dizaj, Azarbaijan Gharbi Province | |
| 26 km West of Churas, Azarbaijan Gharbi Province | |
| 26 km North of Beyk sofla, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 9 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 54 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 61 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135514 | IIEES | MAKU | E | 533.1 | 0.29 | 2018-08-11 15:03:59 | 2018-08-12 04:19:00 | n |
| 135515 | IIEES | MAKU | N | 550.7 | 0.37 | 2018-08-11 15:03:59 | 2018-08-12 04:19:00 | n |
| 135516 | IIEES | GRMI | N | 47.4 | 0.35 | 2018-08-11 15:04:54 | 2018-08-12 04:19:00 | n |
| 135517 | IIEES | GRMI | E | 57.1 | 0.6 | 2018-08-11 15:04:57 | 2018-08-12 04:19:00 | n |
| 135518 | IIEES | SRSL | N | 37.4 | 0.58 | 2018-08-11 15:05:06 | 2018-08-12 04:19:00 | n |
| 135519 | IIEES | SRSL | E | 34.5 | 0.41 | 2018-08-11 15:05:15 | 2018-08-12 04:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2018-08-11 15:03:45 | -0.19 | y | 64.3 | 354 | |||
| IIEES | MAKU | N | Sg | E | 2018-08-11 15:03:54 | 0.13 | y | 64.3 | 354 | |||
| IIEES | GRMI | Z | Pn | E | 2018-08-11 15:04:16 | -0.05 | y | 272 | 88 | |||
| IIEES | GRMI | N | Sg | E | 2018-08-11 15:04:51 | -0.11 | y | 272 | 88 | |||
| IIEES | SRSL | Z | Pn | E | 2018-08-11 15:04:18 | -0.2 | y | 291 | 168 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-08-11 15:04:34 | 0.53 | y | 417 | 123 | |||
| IIEES | SNGE | Z | Pn | E | 2018-08-11 15:04:40 | -0.08 | y | 469 | 150 | |||
| IIEES | ILBA | Z | Pn | E | 2018-08-11 15:04:55 | 0.08 | y | 586 | 167 | |||
