Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2018-08-11 21:56:59.1 |
| Date & Time (Local) | 1397/5/21 02:26:59.1 |

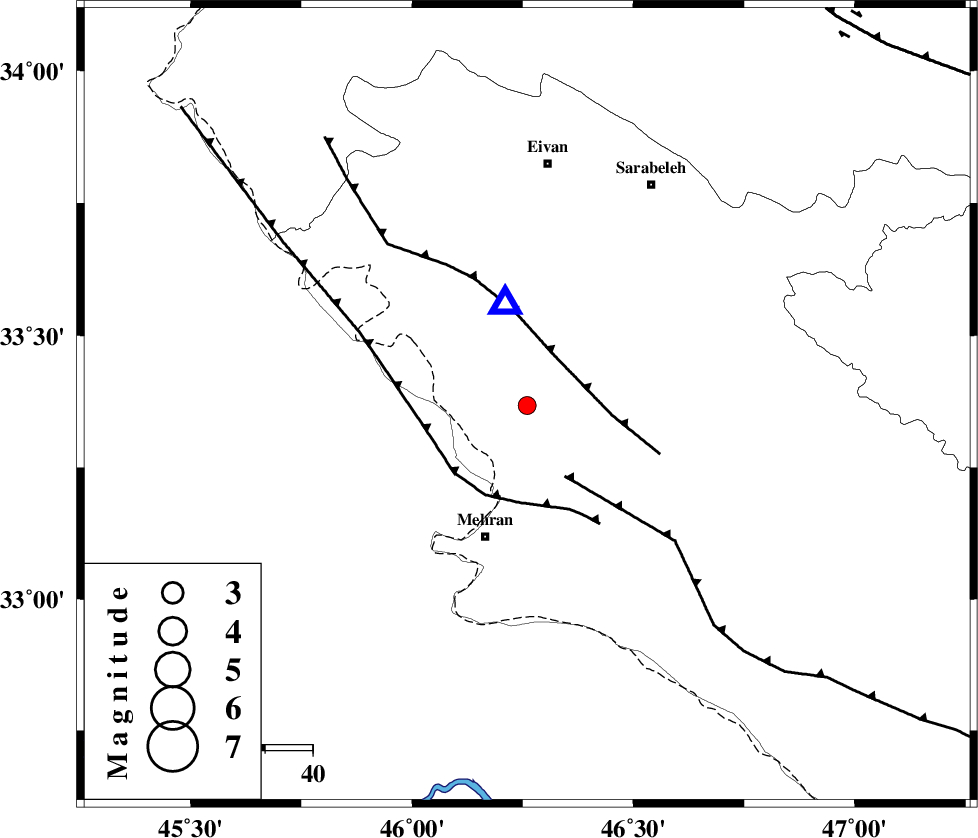

| Location | Lat:33.368 Lon: 46.26 |
| Region | Ilam Province, 29 km North of Mehran |
Nearest Cities |
|
| 13 km South of Salehabad, Ilam Province | |
| 17 km North West of Galeh-yedarre-hemalakshahi, Ilam Province | |
| 21 km West of Mehr, Ilam Province | |
| 29 km North of Mehran, Ilam Province | |
| 31 km North West of Gonbad-e pirmohammad, Ilam Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| MFF7 (Length: 99 km) , Distance to epicenter: 12 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 17 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 21 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >7.6 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135545 | IIEES | ILBA | E | 2003.5 | 0.21 | 2018-08-11 21:57:13 | 2018-08-12 08:18:00 | n |
| 135546 | IIEES | ILBA | N | 2248.3 | 0.5 | 2018-08-11 21:57:14 | 2018-08-12 08:18:00 | n |
| 135547 | IIEES | SNGE | E | 24.6 | 0.6 | 2018-08-11 21:58:09 | 2018-08-12 08:18:00 | n |
| 135548 | IIEES | SNGE | N | 26.7 | 0.65 | 2018-08-11 21:58:10 | 2018-08-12 08:18:00 | n |
| 135549 | IIEES | SRSL | E | 9.7 | 0.46 | 2018-08-11 21:58:43 | 2018-08-12 08:18:00 | n |
| 135550 | IIEES | SRSL | N | 10.6 | 0.37 | 2018-08-11 21:58:46 | 2018-08-12 08:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-08-11 21:57:04 | -0.26 | y | 28.9 | 350 | |||
| IIEES | SNGE | Z | Pn | E | 2018-08-11 21:57:34 | -0.19 | y | 216 | 27 | |||
| IIEES | SNGE | N | Sg | E | 2018-08-11 21:58:03 | 0.08 | y | 216 | 27 | |||
| IIEES | SRSL | Z | Pn | E | 2018-08-11 21:57:48 | 0.39 | y | 325 | 347 | |||
| IIEES | ASAO | Z | Pn | E | 2018-08-11 21:57:54 | 0.02 | y | 372 | 68 | |||
