Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2018-08-16 06:03:09.9 |
| Date & Time (Local) | 1397/5/25 10:33:09.9 |

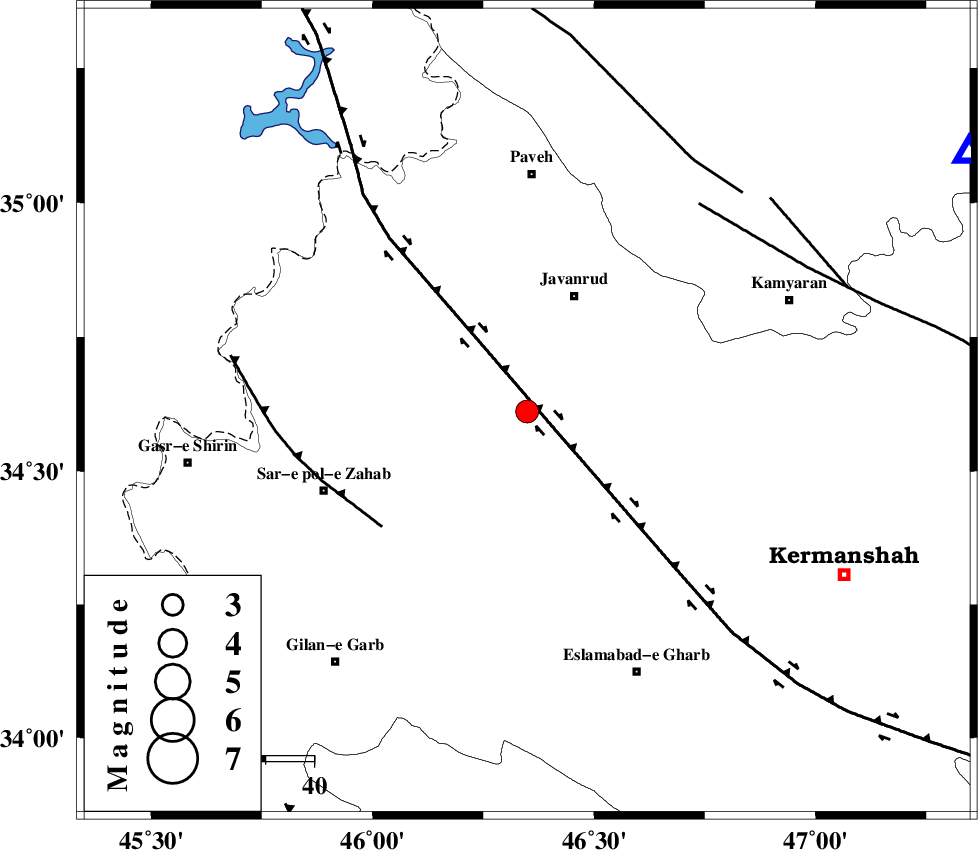

| Location | Lat:34.611 Lon: 46.349 |
| Region | Kermanshah Province, 26 km South-West of Javanrud |
Nearest Cities |
|
| 9 km of Mirabad, Kermanshah Province | |
| 13 km North of Zavleh olia, Kermanshah Province | |
| 14 km West of Dolatabad, Kermanshah Province | |
| 19 km South West of Sarukhan, Kermanshah Province | |
| 21 km South East of Qolqoleh, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 6 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 38 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 56 km | |
| Number of Phases | 11 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 4 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135912 | IIEES | ILBA | E | 470.6 | 0.37 | 2018-08-16 06:03:53 | 2018-08-20 07:24:00 | n |
| 135913 | IIEES | SRSL | N | 364.6 | 0.33 | 2018-08-16 06:04:09 | 2018-08-20 07:24:00 | n |
| 135914 | IIEES | SRSL | E | 383 | 0.49 | 2018-08-16 06:04:13 | 2018-08-20 07:24:00 | n |
| 135915 | IIEES | GHVR | E | 19.6 | 0.63 | 2018-08-16 06:05:32 | 2018-08-20 07:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2018-08-16 06:03:27 | -0.54 | y | 106 | 59 | |||
| IIEES | SNGE | N | Sg | E | 2018-08-16 06:03:40 | -0.3 | y | 106 | 59 | |||
| IIEES | ILBA | Z | Pg | E | 2018-08-16 06:03:28 | -0.15 | y | 110 | 187 | |||
| IIEES | SRSL | Z | Pg | E | 2018-08-16 06:03:42 | -0.18 | y | 196 | 335 | |||
| IIEES | SRSL | N | Sg | E | 2018-08-16 06:04:05 | -0.23 | y | 196 | 335 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-08-16 06:03:57 | 0.69 | y | 311 | 42 | |||
| IIEES | ASAO | Z | Pn | E | 2018-08-16 06:03:59 | 0.21 | y | 337 | 90 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-08-16 06:04:00 | -0.48 | y | 347 | 105 | |||
| IIEES | GHVR | Z | Pn | E | 2018-08-16 06:04:25 | 12.03 | n | 4 | 450 | 90 | ||
| IIEES | GRMI | Z | Pn | E | 2018-08-16 06:04:18 | 0.7 | y | 486 | 16 | |||
| IIEES | DAMV | Z | Pn | E | 2018-08-16 06:04:23 | 0.8 | y | 525 | 76 | |||
