Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2018-08-25 23:48:18.2 |
| Date & Time (Local) | 1397/6/4 04:18:18.2 |

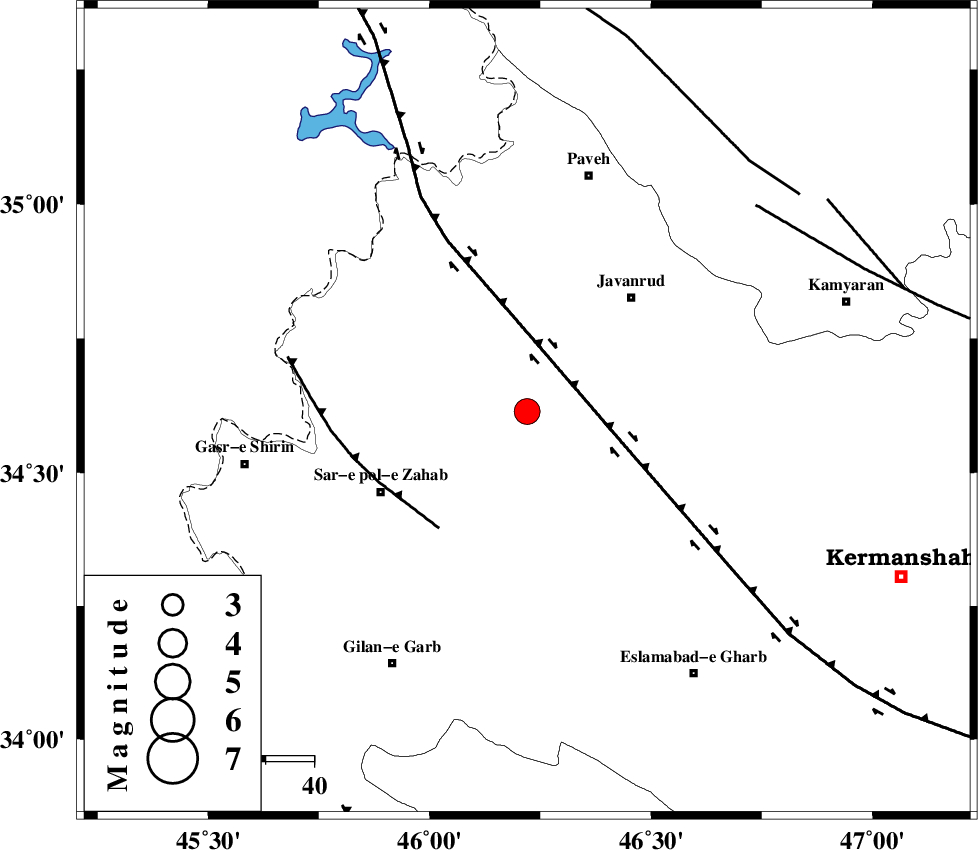

| Location | Lat:34.614 Lon: 46.22 |
| Region | Kermanshah Province, 32 km South-West of Javanrud |
Nearest Cities |
|
| 11 km of Mirabad, Kermanshah Province | |
| 13 km South of Qolqoleh, Kermanshah Province | |
| 16 km North of Zavleh olia, Kermanshah Province | |
| 24 km West of Dolatabad, Kermanshah Province | |
| 25 km North East of Rijab, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 15 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 30 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 64 km | |
| Number of Phases | 15 |
| RMS | 0.5 |
| Number of Stations | 12 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 136028 | IIEES | ILBA | N | 1344.5 | 0.45 | 2018-08-25 23:48:57 | 2018-08-26 04:12:00 | n |
| 136029 | IIEES | ILBA | E | 1819.7 | 0.45 | 2018-08-25 23:48:57 | 2018-08-26 04:12:00 | n |
| 136030 | IIEES | SRSL | N | 966.5 | 0.38 | 2018-08-25 23:49:17 | 2018-08-26 04:12:00 | n |
| 136031 | IIEES | SRSL | E | 855.4 | 0.38 | 2018-08-25 23:49:21 | 2018-08-26 04:12:00 | n |
| 136032 | IIEES | GIDE | N | 79.4 | 0.8 | 2018-08-25 23:50:36 | 2018-08-26 04:12:00 | n |
| 136033 | IIEES | GHVR | E | 52.1 | 0.5 | 2018-08-25 23:50:42 | 2018-08-26 04:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-08-25 23:48:36 | -0.35 | y | 110 | 181 | |||
| IIEES | SNGE | Z | Pg | E | 2018-08-25 23:48:36 | -0.95 | y | 116 | 62 | |||
| IIEES | SNGE | N | Sg | E | 2018-08-25 23:48:51 | -0.31 | y | 116 | 62 | |||
| IIEES | SRSL | Z | Pg | E | 2018-08-25 23:48:49 | -0.74 | y | 191 | 338 | |||
| IIEES | SRSL | N | Sg | E | 2018-08-25 23:49:13 | 0.42 | y | 191 | 338 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-08-25 23:49:06 | 0.58 | y | 319 | 44 | |||
| IIEES | ASAO | Z | Pn | E | 2018-08-25 23:49:10 | 0.65 | y | 349 | 90 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-08-25 23:49:10 | 0.26 | y | 359 | 105 | |||
| IIEES | GIDE | Z | Pn | E | 2018-08-25 23:49:18 | -0.2 | y | 421 | 51 | |||
| IIEES | THKV | Z | Pn | E | 2018-08-25 23:49:34 | 12.54 | n | 4 | 448 | 70 | ||
| IIEES | GHVR | Z | Pn | E | 2018-08-25 23:49:23 | 0.51 | y | 461 | 90 | |||
| IIEES | CHTH | Z | Pn | E | 2018-08-25 23:49:24 | 0.08 | y | 469 | 71 | |||
| IIEES | GRMI | Z | Pn | E | 2018-08-25 23:49:26 | 0.22 | y | 489 | 17 | |||
| IIEES | DAMV | Z | Pn | E | 2018-08-25 23:49:33 | 0.36 | y | 536 | 76 | |||
| IIEES | NASN | Z | Pn | E | 2018-08-25 23:49:46 | -0.01 | y | 643 | 106 | |||
