Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2018-12-06 14:31:43.0 |
| Date & Time (Local) | 1397/9/15 18:01:43.0 |

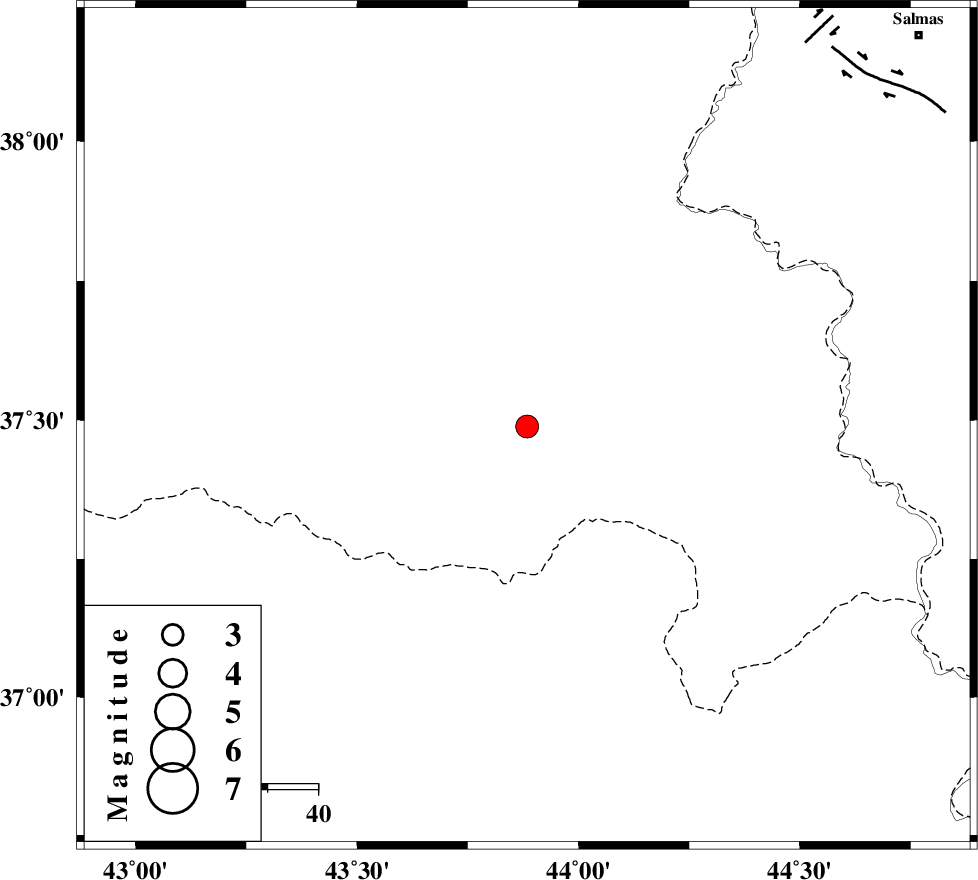

| Location | Lat:37.488 Lon: 43.884 |
| Region | Turkey |
Nearest Cities |
|
| 72 km South West of Sarv, Azarbaijan Gharbi Province | |
| 75 km South West of Delzi, Azarbaijan Gharbi Province | |
| 79 km South West of Ravand sofla, Azarbaijan Gharbi Province | |
| 81 km West of Movana, Azarbaijan Gharbi Province | |
| 82 km South West of Hashtyan, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SALMAS (Length: 20 km) , Distance to epicenter: 94 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 126 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 133 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >1.5 km |
| Error in Longitude | 7.3 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 139120 | IIEES | SRSL | N | 410.6 | 0.42 | 2018-12-06 14:32:47 | 2018-12-09 04:08:00 | n |
| 139121 | IIEES | SNGE | N | 20.8 | 0.33 | 2018-12-06 14:33:43 | 2018-12-09 04:08:00 | n |
| 139122 | IIEES | SNGE | E | 29.1 | 0.49 | 2018-12-06 14:33:49 | 2018-12-09 04:08:00 | n |
| 139123 | IIEES | ILBA | N | 42.7 | 0.51 | 2018-12-06 14:34:13 | 2018-12-09 04:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SRSL | Z | Pn | E | 2018-12-06 14:32:15 | 0.04 | y | 198 | 135 | |||
| IIEES | SRSL | N | Sg | E | 2018-12-06 14:32:39 | -0.02 | y | 198 | 135 | |||
| IIEES | MAKU | Z | Pn | E | 2018-12-06 14:32:17 | -0.07 | y | 219 | 18 | |||
| IIEES | MAKU | E | Sg | E | 2018-12-06 14:32:45 | 0.01 | y | 219 | 18 | |||
| IIEES | GRMI | Z | Pn | E | 2018-12-06 14:32:38 | 0.1 | y | 381 | 66 | |||
| IIEES | SNGE | Z | Pn | E | 2018-12-06 14:32:41 | -0.17 | y | 409 | 129 | |||
| IIEES | ILBA | Z | Pn | E | 2018-12-06 14:32:50 | 0.11 | y | 477 | 153 | |||
