Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2019-10-12 05:16:00.7 |
| Date & Time (Local) | 1398/7/20 08:46:00.7 |

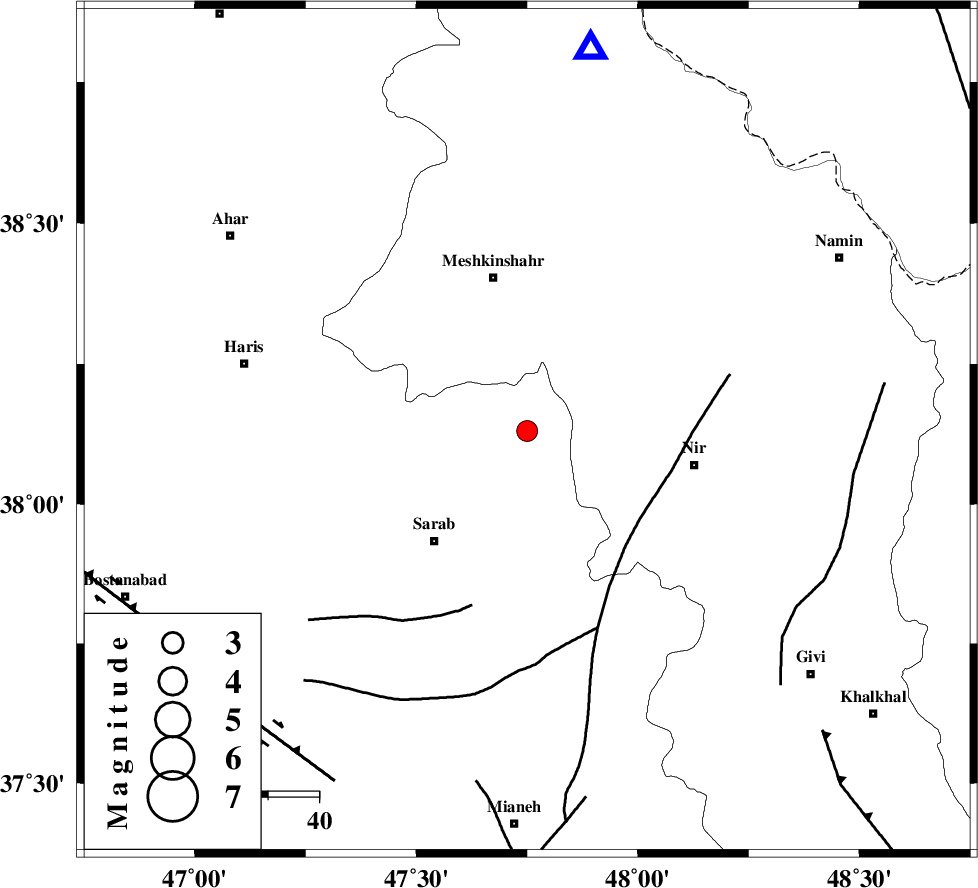

| Location | Lat:38.13 Lon: 47.75 |
| Region | Azarbaijan Sharghi Province, 31 km South of Meshgin Shahr |
Nearest Cities |
|
| 15 km North of Kalian, Azarbaijan Sharghi Province | |
| 16 km North of Aghmiun, Azarbaijan Sharghi Province | |
| 22 km North East of Razligh, Azarbaijan Sharghi Province | |
| 22 km South of Manueil, Ardebil Province | |
| 26 km West of Eslamabad, Ardebil Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 28 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 64 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 79 km | |
| Number of Phases | 6 |
| RMS | 0.5 |
| Number of Stations | 6 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 13 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 146632 | IIEES SC | GRMI | Z | 160 | 1 | 2019-10-12 05:16:25 | 2019-10-14 10:34:00 | n |
| 146633 | IIEES SC | AZR | Z | 410 | 1 | 2019-10-12 05:16:54 | 2019-10-14 10:34:00 | n |
| 146634 | IIEES SC | ZNJK | Z | 110 | 1 | 2019-10-12 05:17:00 | 2019-10-14 10:34:00 | n |
| 146635 | IIEES SC | MAHB | Z | 94 | 1 | 2019-10-12 05:17:12 | 2019-10-14 10:34:00 | n |
| 146636 | IIEES SC | SRSL | Z | 28 | 1 | 2019-10-12 05:17:29 | 2019-10-14 10:34:00 | n |
| 146637 | IIEES SC | QABG | Z | 7.6 | 1 | 2019-10-12 05:17:38 | 2019-10-14 10:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-10-12 05:16:14 | 0 | y | 77 | 9 | |||
| IIEES SC | AZR | Z | IP | I | 2019-10-12 05:16:27 | -0.6 | y | 166 | 252 | |||
| IIEES SC | ZNJK | N | IP | I | 2019-10-12 05:16:30 | -0.4 | y | 177 | 153 | |||
| IIEES SC | MAHB | N | IP | I | 2019-10-12 05:16:38 | 0 | y | 233 | 230 | |||
| IIEES SC | SRSL | N | IP | I | 2019-10-12 05:16:48 | 1.7 | y | 300 | 224 | |||
| IIEES SC | QABG | Z | IP | I | 2019-10-12 05:16:49 | 0.3 | y | 311 | 149 | |||
