Event Specification
Magnitude |
4.1 |
| Date & Time (UTC) | 2019-11-07 23:32:02.1 |
| Date & Time (Local) | 1398/8/17 03:02:02.1 |

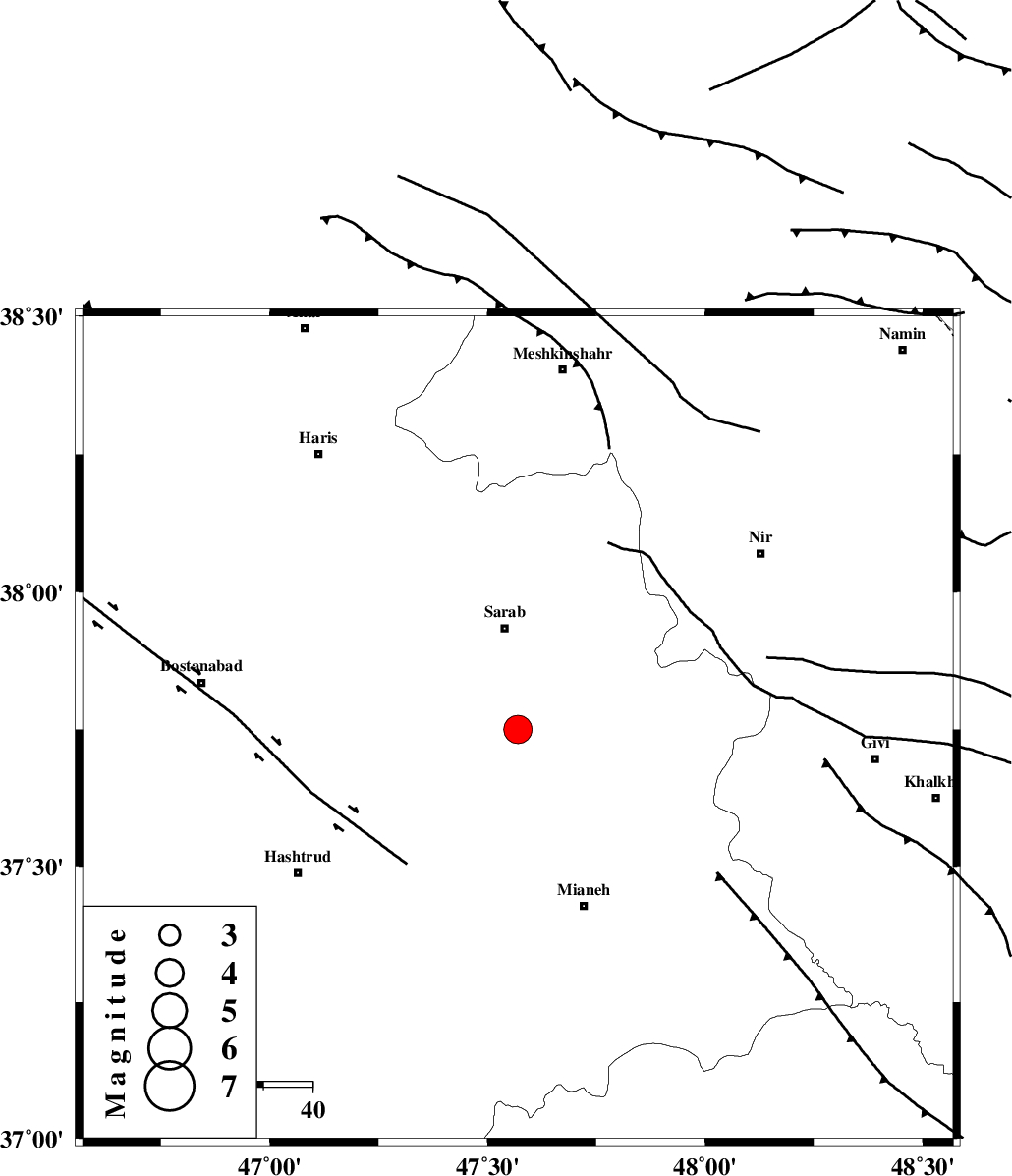

| Location | Lat:37.75 Lon: 47.57 |
| Region | Azarbaijan Sharghi Province, 21 km South of Sarab |
Nearest Cities |
|
| 10 km of Asbforushan, Azarbaijan Sharghi Province | |
| 15 km South West of Pataveh, Azarbaijan Sharghi Province | |
| 16 km North of Eshlaq, Azarbaijan Sharghi Province | |
| 19 km North East of Somee-ye olia, Azarbaijan Sharghi Province | |
| 21 km South of Sarab, Azarbaijan Sharghi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 9 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 35 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 66 km | |
| Number of Phases | 17 |
| RMS | 0.7 |
| Number of Stations | 19 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147607 | IIEES SC | GRMI | Z | 1400 | 1 | 2019-11-07 23:32:43 | 2019-11-08 03:37:00 | n |
| 147608 | IIEES SC | AZR | Z | 7700 | 1 | 2019-11-07 23:32:48 | 2019-11-08 03:37:00 | n |
| 147609 | IIEES SC | ZNJK | Z | 3.8 | 1 | 2019-11-07 23:32:54 | 2019-11-08 03:37:00 | n |
| 147610 | IIEES SC | MAHB | Z | 1300 | 1 | 2019-11-07 23:32:58 | 2019-11-08 03:37:00 | n |
| 147611 | IIEES SC | SRSL | Z | 650 | 1 | 2019-11-07 23:33:16 | 2019-11-08 03:37:00 | n |
| 147612 | IIEES SC | QABG | Z | 80 | 1 | 2019-11-07 23:33:34 | 2019-11-08 03:37:00 | n |
| 147613 | IIEES SC | SNGE | Z | 6.6 | 1 | 2019-11-07 23:34:30 | 2019-11-08 03:37:00 | n |
| 147614 | IIEES SC | THKV | Z | 370 | 1 | 2019-11-07 23:33:49 | 2019-11-08 03:37:00 | n |
| 147615 | IIEES SC | CHTH | Z | 2.3 | 1 | 2019-11-07 23:33:50 | 2019-11-08 03:37:00 | n |
| 147616 | IIEES SC | DAMV | Z | 4.6 | 1 | 2019-11-07 23:34:09 | 2019-11-08 03:37:00 | n |
| 147617 | IIEES SC | GHVR | Z | 170 | 1 | 2019-11-07 23:34:35 | 2019-11-08 03:37:00 | n |
| 147618 | IIEES SC | KHMZ | Z | 39 | 1 | 2019-11-07 23:34:38 | 2019-11-08 03:37:00 | n |
| 147619 | IIEES SC | GLO | Z | 230 | 1 | 2019-11-07 23:34:40 | 2019-11-08 03:37:00 | n |
| 147620 | IIEES SC | MRVT | Z | 19 | 1 | 2019-11-07 23:35:01 | 2019-11-08 03:37:00 | n |
| 147621 | IIEES SC | YZKH | Z | 11 | 1 | 2019-11-07 23:35:09 | 2019-11-08 03:37:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | N | IS | I | 2019-11-07 23:32:38 | 0.3 | y | 122 | 13 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-11-07 23:32:22 | -0.6 | y | 122 | 13 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-07 23:32:25 | -0.3 | y | 144 | 267 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-07 23:32:27 | -0.5 | y | 155 | 141 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-07 23:32:33 | -1.1 | y | 200 | 237 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-07 23:32:42 | 0.4 | y | 255 | 228 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-07 23:32:46 | -0.3 | y | 289 | 142 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-07 23:32:47 | 0.2 | y | 300 | 184 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-07 23:32:55 | 0 | y | 355 | 125 | |||
| IIEES SC | CHTH | N | IP | I | 2019-11-07 23:32:57 | 0.3 | y | 378 | 123 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-11-07 23:33:08 | 0.6 | y | 455 | 121 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-11-07 23:33:11 | 0.1 | y | 489 | 138 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-07 23:33:13 | 1.5 | y | 500 | 154 | |||
| IIEES SC | GLO | Z | IP | I | 2019-11-07 23:33:21 | -0.7 | y | 578 | 104 | |||
| IIEES SC | MRVT | Z | IP | I | 2019-11-07 23:33:42 | -1.3 | y | 756 | 91 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-11-07 23:33:58 | -0.4 | y | 878 | 133 | |||
| IIEES SC | AKL | Z | IP | I | 2019-11-07 23:34:13 | -1 | y | 1000 | 97 | |||
