Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2019-11-08 01:11:33.2 |
| Date & Time (Local) | 1398/8/17 04:41:33.2 |

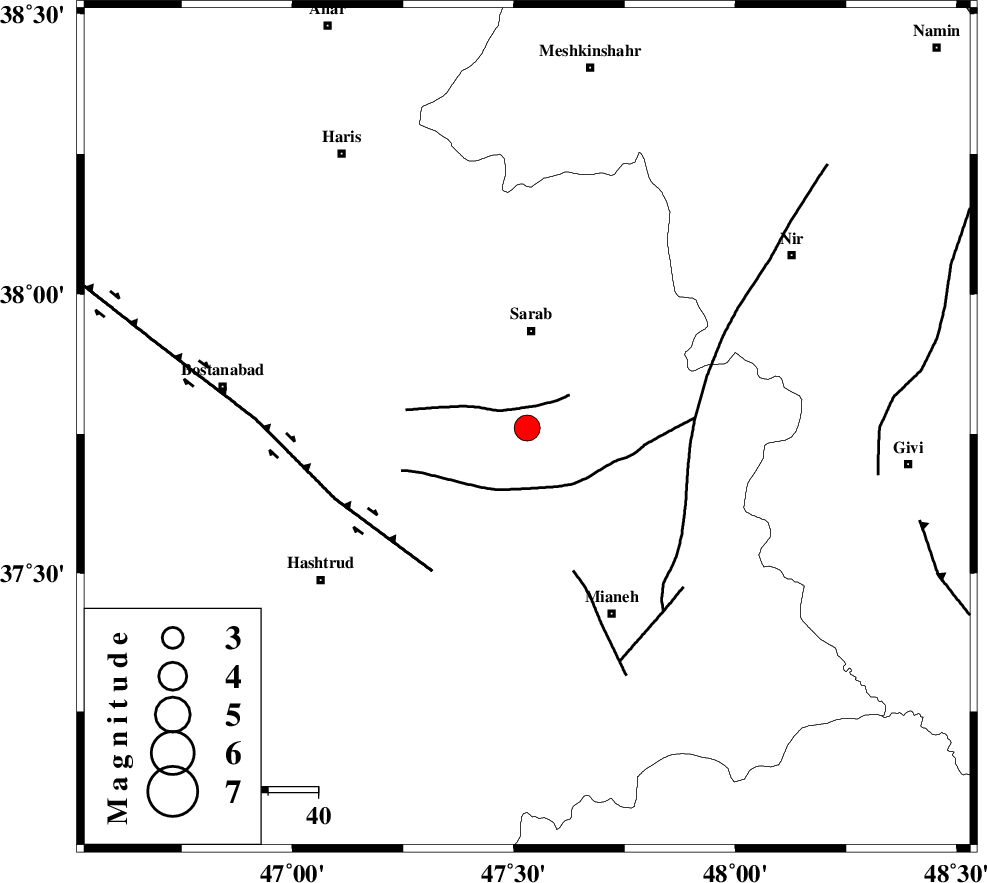

| Location | Lat:37.76 Lon: 47.53 |
| Region | Azarbaijan Sharghi Province, 19 km South of Sarab |
Nearest Cities |
|
| 9 km of Asbforushan, Azarbaijan Sharghi Province | |
| 17 km West of Pataveh, Azarbaijan Sharghi Province | |
| 18 km South East of Abarghan, Azarbaijan Sharghi Province | |
| 18 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 19 km North of Eshlaq, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 8 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 34 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 70 km | |
| Number of Phases | 11 |
| RMS | 0.7 |
| Number of Stations | 11 |
| Error in Latitude | >6 km |
| Error in Longitude | 0 km |
| Error in Depth | 21 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147708 | IIEES SC | GRMI | Z | 430 | 1 | 2019-11-08 01:12:15 | 2019-11-08 12:52:00 | n |
| 147709 | IIEES SC | AZR | Z | 2200 | 1 | 2019-11-08 01:12:28 | 2019-11-08 12:52:00 | n |
| 147710 | IIEES SC | MAHB | Z | 480 | 1 | 2019-11-08 01:12:34 | 2019-11-08 12:52:00 | n |
| 147711 | IIEES SC | SRSL | Z | 230 | 1 | 2019-11-08 01:12:48 | 2019-11-08 12:52:00 | n |
| 147712 | IIEES SC | QABG | Z | 53 | 1 | 2019-11-08 01:13:00 | 2019-11-08 12:52:00 | n |
| 147713 | IIEES SC | SNGE | Z | 7.4 | 1 | 2019-11-08 01:12:35 | 2019-11-08 12:52:00 | n |
| 147714 | IIEES SC | ILBA | Z | 8.9 | 1 | 2019-11-08 01:14:17 | 2019-11-08 12:52:00 | n |
| 147715 | IIEES SC | GHVR | Z | 84 | 1 | 2019-11-08 01:14:03 | 2019-11-08 12:52:00 | n |
| 147716 | IIEES SC | KHMZ | Z | 26 | 1 | 2019-11-08 01:14:02 | 2019-11-08 12:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-08 01:11:53 | -0.2 | y | 122 | 16 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-08 01:11:56 | 0.6 | y | 133 | 266 | |||
| IIEES SC | MAHB | N | IS | I | 2019-11-08 01:12:26 | -2 | y | 200 | 236 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-08 01:12:03 | -1 | y | 200 | 236 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-08 01:12:13 | 0.7 | y | 255 | 227 | |||
| IIEES SC | QABG | E | IS | I | 2019-11-08 01:12:51 | 0.8 | y | 289 | 141 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-08 01:12:16 | -1 | y | 289 | 141 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-08 01:12:18 | 0.2 | y | 300 | 183 | |||
| IIEES SC | ILBA | Z | IP | I | 2019-11-08 01:12:45 | 6 | y | 478 | 195 | |||
| IIEES SC | GHVR | N | IP | I | 2019-11-08 01:12:42 | -0.4 | y | 500 | 137 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-08 01:12:43 | 0.7 | y | 500 | 154 | |||
