Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2020-04-07 22:22:19.5 |
| Date & Time (Local) | 1399/1/20 02:52:19.5 |

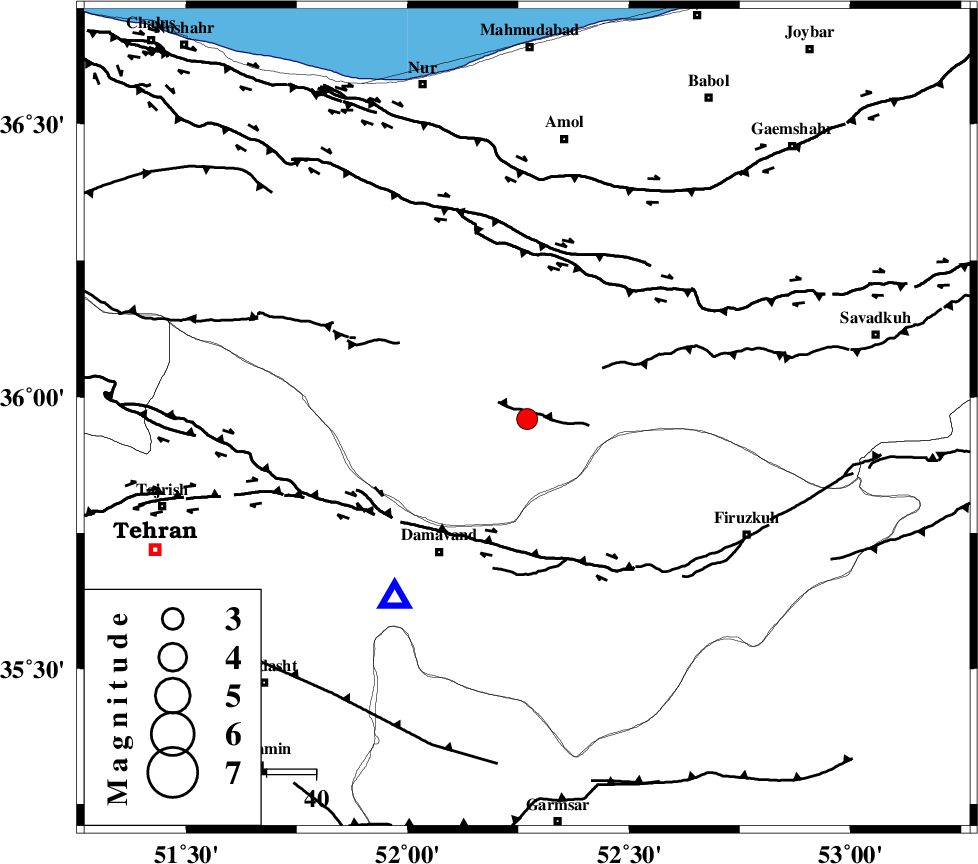

| Location | Lat:35.96 Lon: 52.27 |
| Region | Mazandaran Province, 33 km North-East of Damavand |
Nearest Cities |
|
| 3 km of Baijan, Mazandaran Province | |
| 9 km North of Gaznak, Mazandaran Province | |
| 13 km North East of Rineh, Mazandaran Province | |
| 29 km North West of Arjomand, Tehran Province | |
| 32 km North East of Abali, Tehran Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 27 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 34 km | |
| KANDOVAN_F (Length: 90 km) , Distance to epicenter: 43 km | |
| Number of Phases | 15 |
| RMS | 0.6 |
| Number of Stations | 15 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 152877 | IIEES SC | DAMV | Z | 3.6 | 1 | 2020-04-07 22:23:01 | 2020-04-08 11:56:00 | n |
| 152878 | IIEES SC | CHTH | Z | 48 | 1 | 2020-04-07 22:22:58 | 2020-04-08 11:56:00 | n |
| 152879 | IIEES SC | THKV | Z | 150 | 1 | 2020-04-07 22:23:06 | 2020-04-08 11:56:00 | n |
| 152880 | IIEES SC | ANJ | Z | 57 | 1 | 2020-04-07 22:23:04 | 2020-04-08 11:56:00 | n |
| 152881 | IIEES SC | GHVR | Z | 330 | 1 | 2020-04-07 22:23:29 | 2020-04-08 11:56:00 | n |
| 152882 | IIEES SC | GIDE | Z | 180 | 1 | 2020-04-07 22:23:32 | 2020-04-08 11:56:00 | n |
| 152883 | IIEES SC | QABG | Z | 11 | 1 | 2020-04-07 22:23:33 | 2020-04-08 11:56:00 | n |
| 152884 | IIEES SC | KHMZ | Z | 20 | 1 | 2020-04-07 22:23:58 | 2020-04-08 11:56:00 | n |
| 152885 | IIEES SC | ZNJK | Z | 4.5 | 1 | 2020-04-07 22:24:39 | 2020-04-08 11:56:00 | n |
| 152886 | IIEES SC | SHRO | Z | 2.3 | 1 | 2020-04-07 22:25:23 | 2020-04-08 11:56:00 | n |
| 152887 | IIEES SC | NASN | Z | 18 | 1 | 2020-04-07 22:24:09 | 2020-04-08 11:56:00 | n |
| 152888 | IIEES SC | MRVT | Z | 15 | 1 | 2020-04-07 22:24:17 | 2020-04-08 11:56:00 | n |
| 152889 | IIEES SC | YZKH | Z | 16 | 1 | 2020-04-07 22:24:35 | 2020-04-08 11:56:00 | n |
| 152890 | IIEES SC | GRMI | Z | 16 | 1 | 2020-04-07 22:24:26 | 2020-04-08 11:56:00 | n |
| 152891 | IIEES SC | TABS | Z | 2.1 | 1 | 2020-04-07 22:25:00 | 2020-04-08 11:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DAMV | Z | IP | I | 2020-04-07 22:22:26 | -1 | y | 44 | 216 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-04-07 22:22:36 | -0.6 | y | 100 | 267 | |||
| IIEES SC | THKV | Z | IP | I | 2020-04-07 22:22:41 | 0.4 | y | 122 | 268 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-04-07 22:22:45 | -0.1 | y | 155 | 110 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-04-07 22:22:50 | -0.3 | y | 189 | 210 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-04-07 22:22:58 | 0.8 | y | 233 | 297 | |||
| IIEES SC | QABG | Z | IP | I | 2020-04-07 22:22:59 | 1.1 | y | 244 | 263 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-04-07 22:23:09 | 0.9 | y | 322 | 221 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-04-07 22:23:07 | -1.2 | y | 333 | 284 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-04-07 22:23:09 | 0.2 | y | 333 | 89 | |||
| IIEES SC | NASN | Z | IP | I | 2020-04-07 22:23:12 | 0.6 | y | 355 | 172 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-04-07 22:23:15 | -0.3 | y | 389 | 61 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-04-07 22:23:23 | 0.1 | y | 455 | 152 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-04-07 22:23:29 | -0.1 | y | 500 | 309 | |||
| IIEES SC | TABS | Z | IP | I | 2020-04-07 22:23:31 | -0.2 | y | 511 | 120 | |||
