Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2020-04-21 11:27:08.4 |
| Date & Time (Local) | 1399/2/2 15:57:08.4 |
| Location | Lat:34.83 Lon: 50.7 |
| Region | Qom Province, 25 km North-West of Qom |
Nearest Cities |
|
| 17 km North East of Gazran, Qom Province | |
| 21 km South East of Taraznahid, Markazi Province | |
| 25 km North West of Qom, Qom Province | |
| 31 km East of Qareh chay, Markazi Province | |
| 36 km North West of Qamrud, Qom Province | |
| Depth | 10 km |
| Agency | |

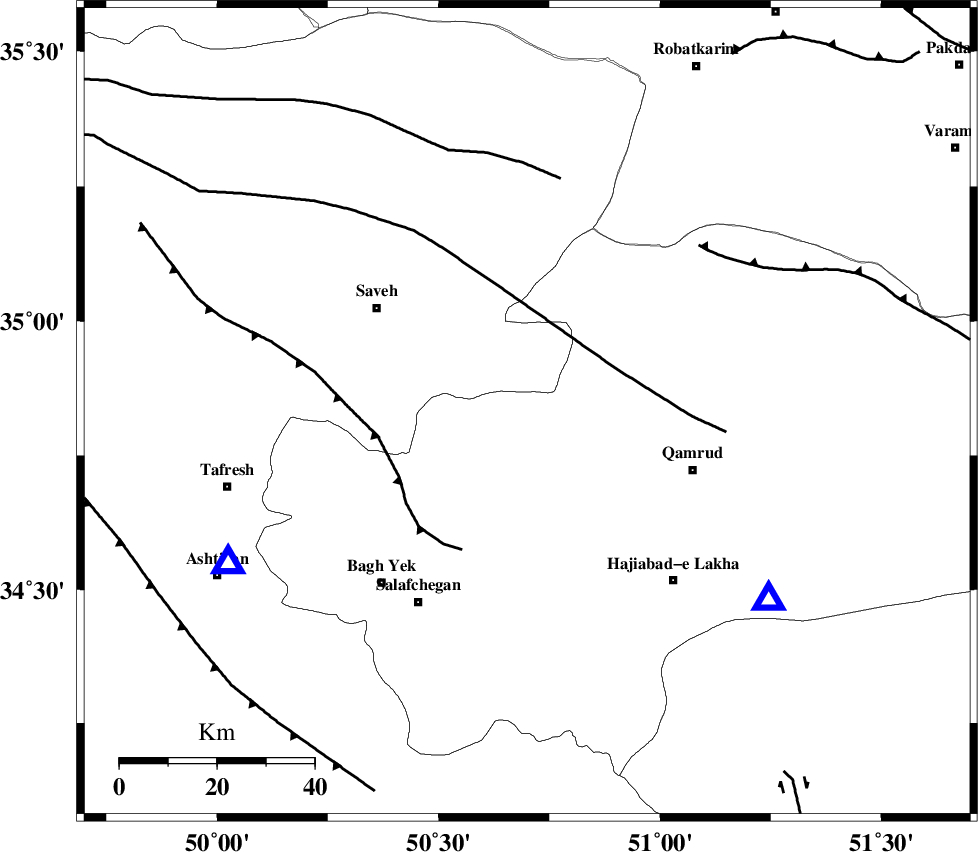

Faults within 150 km: |
|
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 20 km | |
| INDES_F (Length: 98 km) , Distance to epicenter: 30 km | |
| S_PARANDAK_F (Length: 116 km) , Distance to epicenter: 49 km | |
| Number of Phases | 14 |
| RMS | 0.8 |
| Number of Stations | 12 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 153195 | IIEES SC | GHVR | Z | 280 | 1 | 2020-04-21 11:27:31 | 2020-04-25 01:51:00 | n |
| 153196 | IIEES SC | THKV | Z | 280 | 1 | 2020-04-21 11:27:45 | 2020-04-25 01:51:00 | n |
| 153197 | IIEES SC | CHTH | Z | 30 | 1 | 2020-04-21 11:27:49 | 2020-04-25 01:51:00 | n |
| 153198 | IIEES SC | KHMZ | Z | 67 | 1 | 2020-04-21 11:27:49 | 2020-04-25 01:51:00 | n |
| 153199 | IIEES SC | QABG | Z | 18 | 1 | 2020-04-21 11:27:52 | 2020-04-25 01:51:00 | n |
| 153200 | IIEES SC | DAMV | Z | 3.8 | 1 | 2020-04-21 11:28:15 | 2020-04-25 01:51:00 | n |
| 153201 | IIEES SC | GIDE | Z | 65 | 1 | 2020-04-21 11:28:28 | 2020-04-25 01:51:00 | n |
| 153202 | IIEES SC | ZNJK | Z | 5.2 | 1 | 2020-04-21 11:29:18 | 2020-04-25 01:51:00 | n |
| 153203 | IIEES SC | NASN | Z | 17 | 1 | 2020-04-21 11:28:37 | 2020-04-25 01:51:00 | n |
| 153204 | IIEES SC | GTMR | Z | 11 | 1 | 2020-04-21 11:28:47 | 2020-04-25 01:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GHVR | Z | IP | I | 2020-04-21 11:27:19 | -0.2 | y | 66 | 128 | |||
| IIEES SC | THKV | N | IS | I | 2020-04-21 11:27:44 | 0.4 | y | 122 | 8 | |||
| IIEES SC | THKV | Z | IP | I | 2020-04-21 11:27:28 | -0.1 | y | 122 | 8 | |||
| IIEES SC | CHTH | N | IS | I | 2020-04-21 11:27:44 | -0.7 | y | 122 | 18 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-04-21 11:27:29 | -0.6 | y | 122 | 18 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-04-21 11:27:30 | -1.1 | y | 144 | 209 | |||
| IIEES SC | QABG | Z | IP | I | 2020-04-21 11:27:31 | -1 | y | 144 | 314 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-04-21 11:27:32 | -0.6 | y | 144 | 53 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-04-21 11:27:47 | 0.7 | y | 244 | 343 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-04-21 11:27:52 | 1.3 | y | 278 | 318 | |||
| IIEES SC | NASN | Z | IP | I | 2020-04-21 11:27:54 | 0.8 | y | 300 | 139 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-04-21 11:28:01 | 7.2 | n | 4 | 300 | 77 | ||
| IIEES SC | GTMR | Z | IP | I | 2020-04-21 11:27:54 | 0.8 | y | 300 | 209 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-04-21 11:28:01 | 6.6 | n | 4 | 311 | 275 | ||
