Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2020-05-09 22:21:24.0 |
| Date & Time (Local) | 1399/2/21 02:51:24.0 |

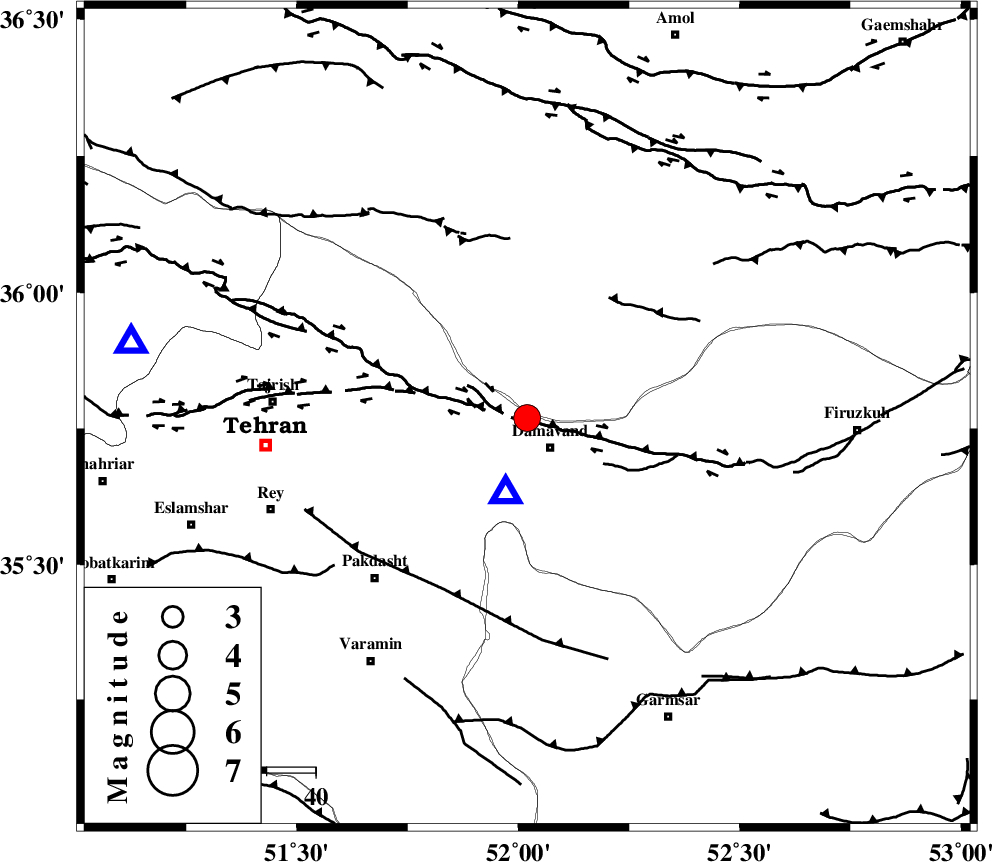

| Location | Lat:35.77 Lon: 52.02 |
| Region | Tehran Province, 8 km of Damavand |
Nearest Cities |
|
| 1 km North of Abali, Tehran Province | |
| 8 km North of Damavand, Tehran Province | |
| 13 km North of Ab sard, Tehran Province | |
| 14 km North East of Rudehen, Tehran Province | |
| 14 km North East of Bumehen, Tehran Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 3 km | |
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 22 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 39 km | |
| Number of Phases | 24 |
| RMS | 0.3 |
| Number of Stations | 22 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 153726 | IIEES SC | CHTH | Z | 1900 | 1 | 2020-05-09 22:21:48 | 2020-05-11 11:39:00 | n |
| 153727 | IIEES SC | THKV | Z | 3900 | 1 | 2020-05-09 22:21:57 | 2020-05-11 11:39:00 | n |
| 153728 | IIEES SC | GHVR | Z | 1400 | 1 | 2020-05-09 22:22:30 | 2020-05-11 11:39:00 | n |
| 153729 | IIEES SC | ANJ | Z | 320 | 1 | 2020-05-09 22:22:34 | 2020-05-11 11:39:00 | n |
| 153730 | IIEES SC | QABG | Z | 170 | 1 | 2020-05-09 22:22:29 | 2020-05-11 11:39:00 | n |
| 153731 | IIEES SC | GIDE | Z | 1300 | 1 | 2020-05-09 22:22:40 | 2020-05-11 11:39:00 | n |
| 153732 | IIEES SC | KHMZ | Z | 270 | 1 | 2020-05-09 22:22:50 | 2020-05-11 11:39:00 | n |
| 153733 | IIEES SC | ZNJK | Z | 59 | 1 | 2020-05-09 22:23:16 | 2020-05-11 11:39:00 | n |
| 153734 | IIEES SC | SHRO | Z | 2.5 | 1 | 2020-05-09 22:24:25 | 2020-05-11 11:39:00 | n |
| 153735 | IIEES SC | MRVT | Z | 54 | 1 | 2020-05-09 22:23:38 | 2020-05-11 11:39:00 | n |
| 153736 | IIEES SC | YZKH | Z | 58 | 1 | 2020-05-09 22:23:42 | 2020-05-11 11:39:00 | n |
| 153737 | IIEES SC | GRMI | Z | 29 | 1 | 2020-05-09 22:23:01 | 2020-05-11 11:39:00 | n |
| 153738 | IIEES SC | SBZV | Z | 29 | 1 | 2020-05-09 22:24:00 | 2020-05-11 11:39:00 | n |
| 153739 | IIEES SC | AKL | Z | 5.6 | 1 | 2020-05-09 22:24:27 | 2020-05-11 11:39:00 | n |
| 153740 | IIEES SC | AKL | Z | 4.7 | 0.48 | 2020-05-09 22:23:12 | 2020-05-11 11:39:00 | n |
| 153741 | IIEES SC | TBJM | Z | 12 | 1 | 2020-05-09 22:25:26 | 2020-05-11 11:39:00 | n |
| 153742 | IIEES SC | TBJM | Z | 6.7 | 1.05 | 2020-05-09 22:23:06 | 2020-05-11 11:39:00 | n |
| 153743 | IIEES SC | BSRN | Z | 5.9 | 1 | 2020-05-09 22:25:26 | 2020-05-11 11:39:00 | n |
| 153744 | IIEES SC | BSRN | Z | 8.5 | 0.64 | 2020-05-09 22:23:09 | 2020-05-11 11:39:00 | n |
| 153745 | IIEES SC | SHRT | Z | 7.8 | 1 | 2020-05-09 22:25:34 | 2020-05-11 11:39:00 | n |
| 153746 | IIEES SC | SHRT | Z | 5.9 | 0.57 | 2020-05-09 22:23:15 | 2020-05-11 11:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DAMV | Z | IP | I | 2020-05-09 22:21:27 | 0.1 | y | 11 | 195 | |||
| IIEES SC | CHTH | N | IS | I | 2020-05-09 22:21:48 | -0.9 | y | 77 | 281 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-05-09 22:21:38 | -0.3 | y | 77 | 281 | |||
| IIEES SC | THKV | N | IS | I | 2020-05-09 22:21:55 | 0.1 | y | 100 | 279 | |||
| IIEES SC | THKV | Z | IP | I | 2020-05-09 22:21:42 | 0.2 | y | 100 | 279 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-05-09 22:21:50 | 0.3 | y | 155 | 206 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-05-09 22:21:52 | -0.1 | y | 177 | 101 | |||
| IIEES SC | GLO | Z | IP | I | 2020-05-09 22:21:54 | 0.6 | n | 4 | 177 | 64 | ||
| IIEES SC | QABG | Z | IP | I | 2020-05-09 22:21:59 | -0.4 | y | 222 | 268 | |||
| IIEES SC | GIDE | N | IS | I | 2020-05-09 22:22:28 | 0.7 | y | 233 | 304 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-05-09 22:22:02 | 1.7 | y | 233 | 304 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-05-09 22:22:08 | 0.1 | y | 289 | 220 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-05-09 22:22:11 | 0.3 | y | 311 | 288 | |||
| IIEES SC | NASN | Z | IP | I | 2020-05-09 22:22:14 | 0.2 | y | 333 | 168 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-05-09 22:22:16 | -0.1 | y | 366 | 86 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-05-09 22:22:24 | 0.1 | y | 422 | 60 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-05-09 22:22:27 | -0.3 | y | 444 | 148 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-05-09 22:22:34 | 0.5 | y | 500 | 313 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-05-09 22:22:35 | 0.1 | y | 511 | 82 | |||
| IIEES SC | AKL | Z | IP | I | 2020-05-09 22:22:48 | 0.1 | y | 611 | 81 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-05-09 22:23:05 | -0.6 | y | 756 | 94 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-05-09 22:23:08 | -0.4 | y | 778 | 123 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-05-09 22:23:10 | -0.5 | y | 789 | 107 | |||
| IIEES SC | AKL | Z | IVmB_BB | 2020-05-09 22:23:12 | y | 1 | 611 | 81 | ||||
