Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2020-07-30 18:50:09.8 |
| Date & Time (Local) | 1399/5/9 23:20:09.8 |

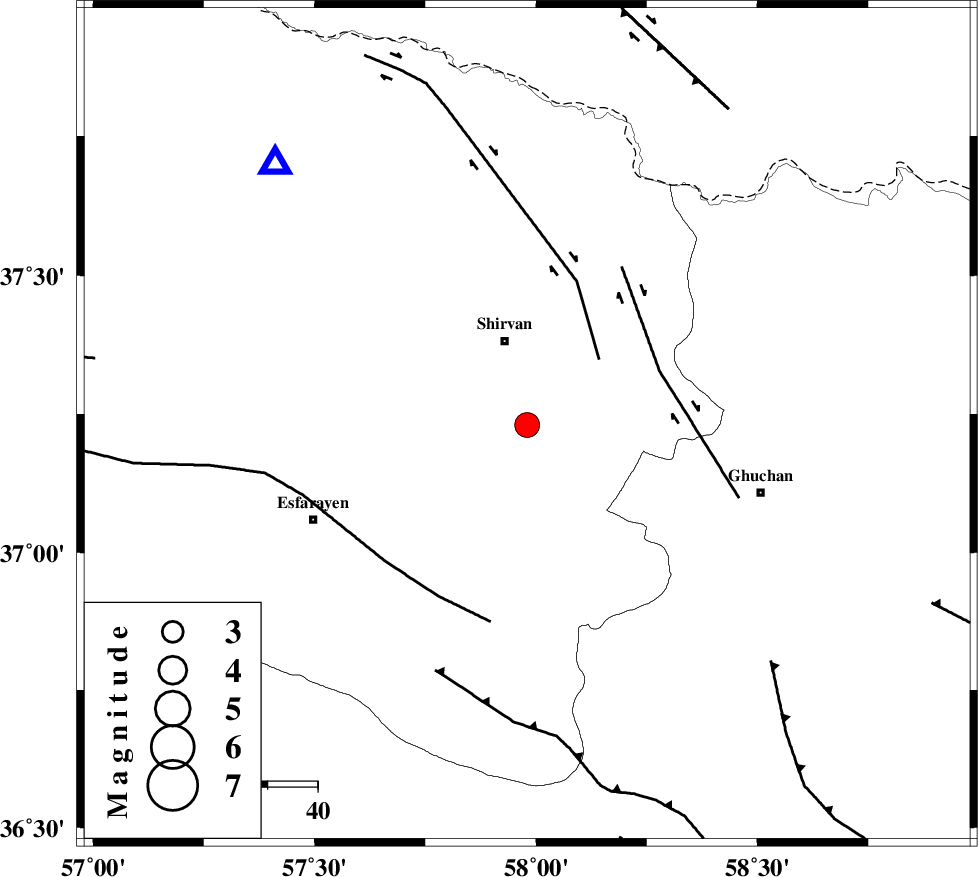

| Location | Lat:37.23 Lon: 57.98 |
| Region | Khorasan(north) Province, 17 km South of Shirvan |
Nearest Cities |
|
| 6 km North of Maviyan, Khorasan(center) Province | |
| 7 km North of Geliyan, Khorasan(north) Province | |
| 17 km South of Amirabad, Khorasan(north) Province | |
| 17 km South of Shirvan, Khorasan(north) Province | |
| 18 km North West of Chari, Khorasan(center) Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 20 km | |
| GHUCHAN_F (Length: 50 km) , Distance to epicenter: 29 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 39 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 155984 | IIEES SC | BJRD | Z | 610 | 1 | 2020-07-30 18:50:38 | 2020-08-01 10:21:00 | n |
| 155985 | IIEES SC | MRVT | Z | 480 | 1 | 2020-07-30 18:51:07 | 2020-08-01 10:21:00 | n |
| 155986 | IIEES SC | KAGH | Z | 200 | 1 | 2020-07-30 18:51:10 | 2020-08-01 10:21:00 | n |
| 155987 | IIEES SC | SHRO | Z | 2.6 | 1 | 2020-07-30 18:51:39 | 2020-08-01 10:21:00 | n |
| 155988 | IIEES SC | TABS | Z | 59 | 1 | 2020-07-30 18:52:22 | 2020-08-01 10:21:00 | n |
| 155989 | IIEES SC | SHRT | Z | 33 | 1 | 2020-07-30 18:52:47 | 2020-08-01 10:21:00 | n |
| 155990 | IIEES SC | BSRN | Z | 7.1 | 1 | 2020-07-30 18:53:17 | 2020-08-01 10:21:00 | n |
| 155991 | IIEES SC | BSRN | Z | 5.1 | 0.72 | 2020-07-30 18:51:50 | 2020-08-01 10:21:00 | n |
| 155992 | IIEES SC | YZKH | Z | 13 | 1 | 2020-07-30 18:53:21 | 2020-08-01 10:21:00 | n |
| 155993 | IIEES SC | YZKH | Z | 12 | 0.88 | 2020-07-30 18:51:59 | 2020-08-01 10:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BJRD | Z | IP | I | 2020-07-30 18:50:22 | 0 | y | 77 | 316 | |||
| IIEES SC | AKL | Z | IP | I | 2020-07-30 18:50:25 | -1.2 | y | 100 | 136 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-07-30 18:50:26 | -0.4 | y | 100 | 200 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-07-30 18:50:38 | 0.4 | y | 177 | 286 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-07-30 18:50:39 | -0.1 | y | 177 | 100 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-07-30 18:50:45 | -0.5 | y | 222 | 232 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-07-30 18:50:56 | 0.8 | y | 300 | 136 | |||
| IIEES SC | TABS | Z | IP | I | 2020-07-30 18:51:08 | 0.5 | y | 400 | 191 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-07-30 18:51:14 | 0.4 | y | 444 | 152 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-07-30 18:51:32 | 0.8 | y | 589 | 170 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-07-30 18:51:35 | 0.1 | y | 622 | 210 | |||
