Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2022-11-04 14:04:15.4 |
| Date & Time (Local) | 1401/8/13 17:34:15.4 |

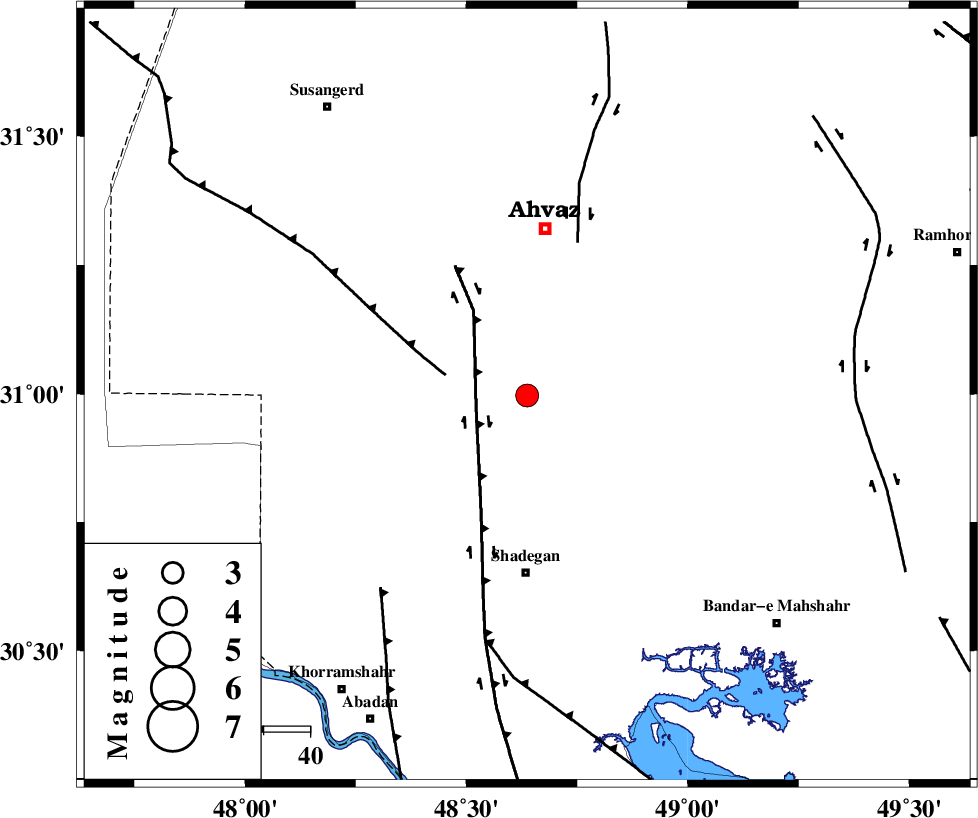

| Location | Lat:30.997 Lon: 48.637 |
| Region | Khoozestan Province, 38 km North of Shadegan |
Nearest Cities |
|
| 16 km South of Abunangeh, Khoozestan Province | |
| 22 km South of Bahr, Khoozestan Province | |
| 27 km North West of Gharibeh, Khoozestan Province | |
| 35 km North East of Darkhovin, Khoozestan Province | |
| 36 km South of Ahvaz, Khoozestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 38 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 61 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 111 km | |
| Number of Phases | 12 |
| RMS | 0.3 |
| Number of Stations | 12 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 3.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 174807 | IIEES SC | GTMR | Z | 0.9 | 1 | 2022-11-04 14:04:43 | 2022-11-05 08:29:00 | n |
| 174808 | IIEES SC | KLNJ | Z | 0.1 | 1 | 2022-11-04 14:04:58 | 2022-11-05 08:29:00 | n |
| 174809 | IIEES SC | KHMZ | Z | 0.1 | 1 | 2022-11-04 14:05:03 | 2022-11-05 08:29:00 | n |
| 174810 | IIEES SC | ASAO | Z | 0.06 | 1 | 2022-11-04 14:05:15 | 2022-11-05 08:29:00 | n |
| 174811 | IIEES SC | GHVR | Z | 0.05 | 1 | 2022-11-04 14:05:19 | 2022-11-05 08:29:00 | n |
| 174812 | IIEES SC | SNGE | Z | 0.03 | 1 | 2022-11-04 14:05:21 | 2022-11-05 08:29:00 | n |
| 174813 | IIEES SC | HGHA | Z | 0.08 | 1 | 2022-11-04 14:05:24 | 2022-11-05 08:29:00 | n |
| 174814 | IIEES SC | TAFT | Z | 0.03 | 1 | 2022-11-04 14:05:29 | 2022-11-05 08:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AHWZ | Z | EPg | E | 2022-11-04 14:04:22 | -0.1 | y | 0 | 37 | 1 | ||
| IIEES SC | GTMR | Z | EPg | E | 2022-11-04 14:04:43 | 0.6 | y | 0 | 170 | 15 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-11-04 14:04:58 | 0.2 | y | 0 | 282 | 90 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-11-04 14:05:03 | -0.4 | y | 0 | 329 | 22 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-11-04 14:05:09 | 0 | y | 0 | 370 | 322 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-11-04 14:05:15 | 0.4 | y | 0 | 415 | 18 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-11-04 14:05:18 | 0.2 | y | 0 | 442 | 63 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-11-04 14:05:19 | -0.2 | y | 0 | 457 | 32 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-11-04 14:05:21 | 0.1 | y | 0 | 470 | 345 | ||
| IIEES SC | HGHA | Z | EPn | E | 2022-11-04 14:05:24 | -0.5 | y | 0 | 499 | 2 | ||
| IIEES SC | TAFT | Z | EPn | E | 2022-11-04 14:05:29 | -0.6 | y | 0 | 533 | 81 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-11-04 14:05:36 | 0.1 | y | 0 | 585 | 75 | ||
