Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2020-08-28 07:05:06.3 |
| Date & Time (Local) | 1399/6/7 11:35:06.3 |

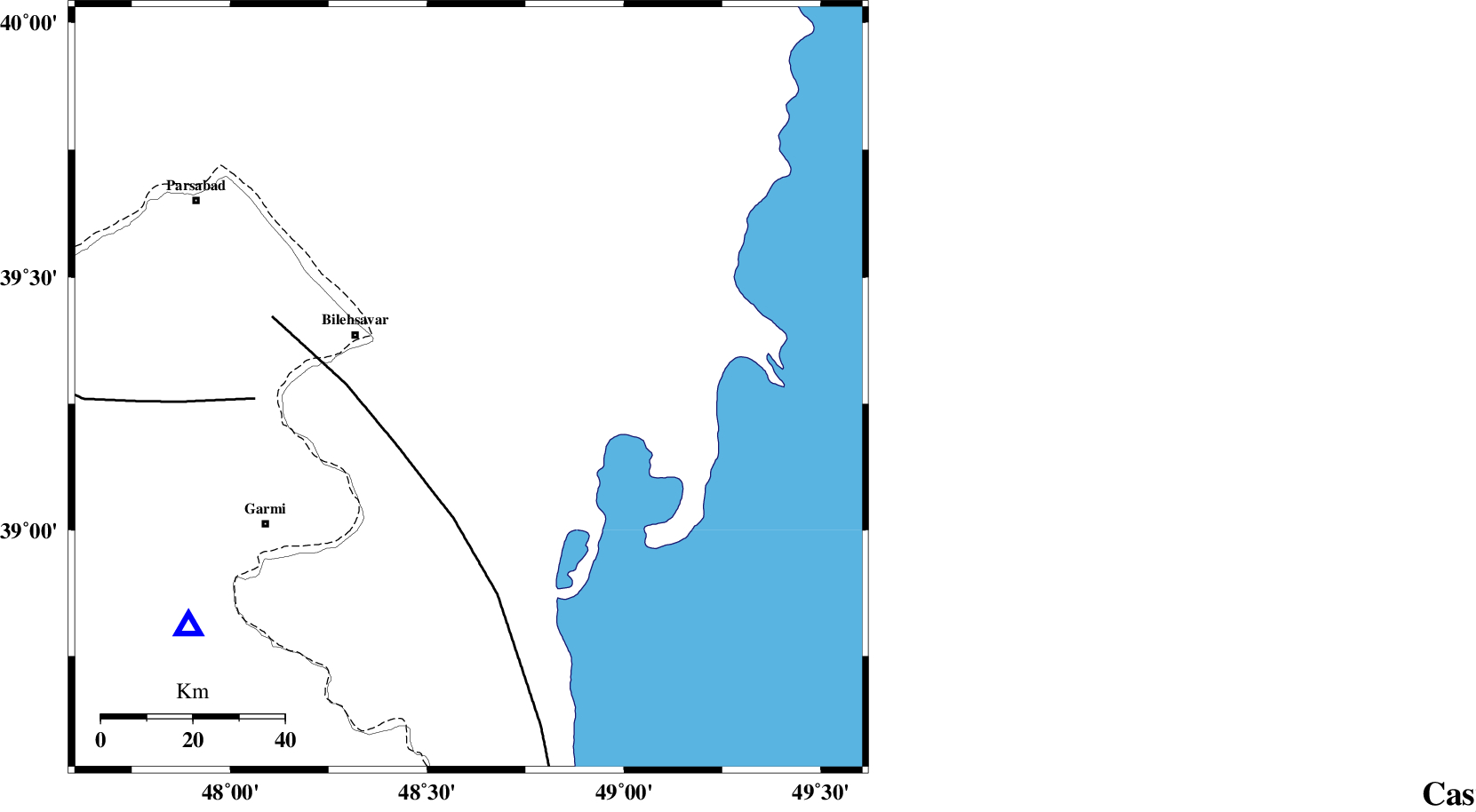

| Location | Lat:39.28 Lon: 48.605 |
| Region | Azerbaijan, 27 km South-East of Bileh Savar |
Nearest Cities |
|
| 27 km South East of Bileh Savar, Ardebil Province | |
| 35 km North East of Hasan khanlu, Ardebil Province | |
| 37 km East of Gorg tappeh, Ardebil Province | |
| 42 km North East of Anjirlu, Ardebil Province | |
| 42 km North East of Moradlu, Ardebil Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 20 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 47 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 118 km | |
| Number of Phases | 17 |
| RMS | 0.5 |
| Number of Stations | 17 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 6.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 194425 | IIEES SC | GRMI | Z | 4 | 1 | 2020-08-28 07:05:30 | 2024-08-14 09:58:00 | n |
| 194426 | IIEES SC | GRMI | Z | 4 | 1 | 2020-08-28 07:05:21 | 2024-08-14 09:58:00 | n |
| 194427 | IIEES SC | GIDE | Z | 0.3 | 1 | 2020-08-28 07:05:49 | 2024-08-14 09:58:00 | n |
| 194428 | IIEES SC | ZNJK | Z | 0.07 | 1 | 2020-08-28 07:05:50 | 2024-08-14 09:58:00 | n |
| 194429 | IIEES SC | THKV | Z | 0.1 | 1 | 2020-08-28 07:06:07 | 2024-08-14 09:58:00 | n |
| 194430 | IIEES SC | SNGE | Z | 0.02 | 1 | 2020-08-28 07:06:13 | 2024-08-14 09:58:00 | n |
| 194431 | IIEES SC | DAMV | Z | 0.03 | 1 | 2020-08-28 07:06:17 | 2024-08-14 09:58:00 | n |
| 194432 | IIEES SC | ASAO | Z | 0.01 | 1 | 2020-08-28 07:06:21 | 2024-08-14 09:58:00 | n |
| 194433 | IIEES SC | KHMZ | Z | 0.01 | 1 | 2020-08-28 07:06:32 | 2024-08-14 09:58:00 | n |
| 194434 | IIEES SC | SHRO | Z | 0.006 | 1 | 2020-08-28 07:06:47 | 2024-08-14 09:58:00 | n |
| 194435 | IIEES SC | BJRD | Z | 0.01 | 1 | 2020-08-28 07:06:52 | 2024-08-14 09:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | EPg | E | 2020-08-28 07:05:21 | 1 | y | 0 | 81 | 230 | ||
| IIEES SC | GRMI | Z | ESg | E | 2020-08-28 07:05:30 | 0 | y | 0 | 81 | 230 | ||
| IIEES SC | GIDE | Z | EPn | E | 2020-08-28 07:05:49 | -0.2 | y | 0 | 283 | 158 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2020-08-28 07:05:50 | -0.2 | y | 0 | 290 | 179 | ||
| IIEES SC | MAKU | Z | EPn | E | 2020-08-28 07:05:56 | -0.4 | y | 0 | 338 | 271 | ||
| IIEES SC | THKV | Z | EPn | E | 2020-08-28 07:06:07 | 0.6 | y | 0 | 424 | 152 | ||
| IIEES SC | CHTH | Z | EPn | E | 2020-08-28 07:06:07 | -0.8 | y | 0 | 436 | 149 | ||
| IIEES SC | SRSL | Z | EPn | E | 2020-08-28 07:06:08 | -0.2 | y | 0 | 440 | 219 | ||
| IIEES SC | SNGE | Z | EPn | E | 2020-08-28 07:06:13 | -0.8 | y | 0 | 478 | 194 | ||
| IIEES SC | DAMV | Z | EPn | E | 2020-08-28 07:06:17 | 0.3 | y | 0 | 503 | 144 | ||
| IIEES SC | ASAO | Z | EPn | E | 2020-08-28 07:06:21 | 0.2 | y | 0 | 540 | 166 | ||
| IIEES SC | ABGH | Z | EPn | E | 2020-08-28 07:06:30 | 0.4 | y | 0 | 613 | 117 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2020-08-28 07:06:32 | 0.5 | y | 0 | 627 | 169 | ||
| IIEES SC | MRVT | Z | EPn | E | 2020-08-28 07:06:38 | 0.3 | y | 0 | 678 | 105 | ||
| IIEES SC | SHRO | Z | EPn | E | 2020-08-28 07:06:47 | 0.2 | y | 0 | 748 | 119 | ||
| IIEES SC | BJRD | Z | EPn | E | 2020-08-28 07:06:52 | 0.2 | y | 0 | 788 | 103 | ||
| IIEES SC | KAGH | Z | EPn | E | 2020-08-28 07:07:21 | -0.6 | y | 0 | 1029 | 105 | ||
