Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2007-04-22 03:41:00.5 |
| Date & Time (Local) | 1386/2/2 07:11:00.5 |

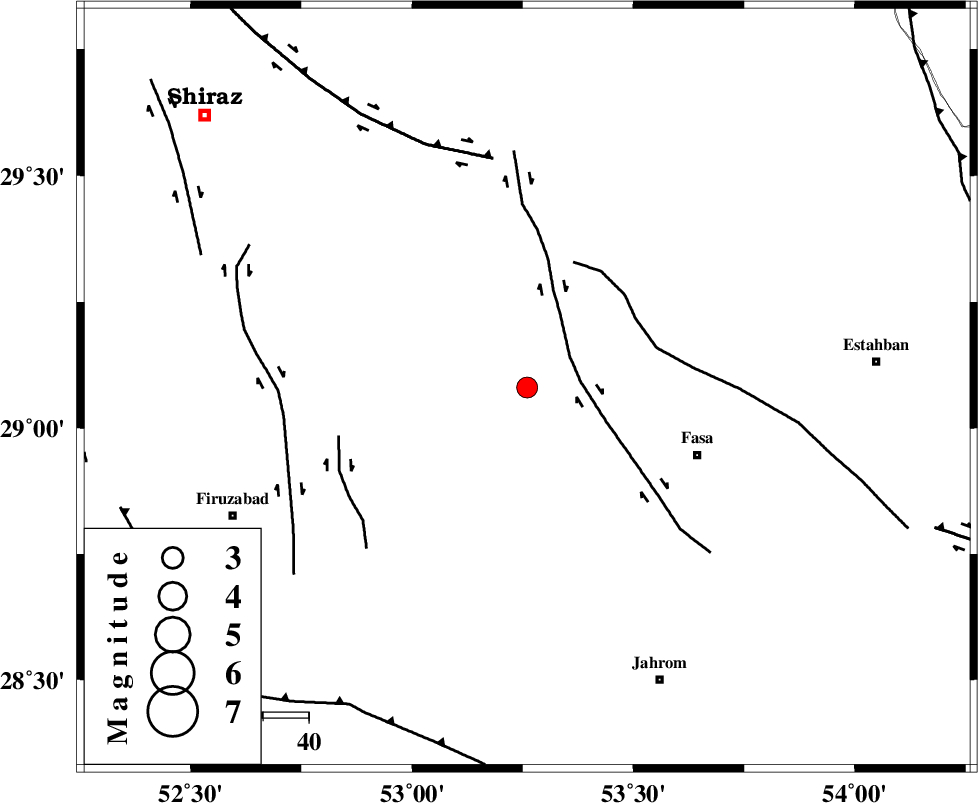

| Location | Lat:29.08 Lon: 53.26 |
| Region | 40 km North-West of Fasa, Fars Province |
Nearest Cities |
|
| 8 km North of Khavaran, Fars Province | |
| 12 km North of Babanar, Fars Province | |
| 18 km North of Golberenji, Fars Province | |
| 22 km South of Sarvestan, Fars Province | |
| 29 km North of Tadvan, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SARVESTAN_F (Length: 94 km) , Distance to epicenter: 12 km | |
| BAKHTEGAN_F (Length: 94 km) , Distance to epicenter: 28 km | |
| SABZ_PUSHAN_F_Z2 (Length: 24 km) , Distance to epicenter: 43 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >5.1 km |
| Error in Longitude | 6.9 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 38436 | IIEES | BNDS | N | 78.1 | 0.57 | 2007-04-22 03:43:03 | 2007-07-30 02:44:00 | n |
| 38437 | IIEES | KRBR | N | 43.4 | 0.54 | 2007-04-22 03:43:10 | 2007-07-30 02:44:00 | n |
| 38438 | IIEES | NASN | N | 15.4 | 0.37 | 2007-04-22 03:42:58 | 2007-07-30 02:44:00 | n |
| 38439 | IIEES | NASN | E | 20.6 | 0.34 | 2007-04-22 03:42:58 | 2007-07-30 02:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pn | E | 2007-04-22 03:41:50 | -0.1 | y | 341 | 122 | |||
| IIEES | KRBR | Z | Pn | E | 2007-04-22 03:41:52 | 0 | y | 354 | 73 | |||
| IIEES | NASN | Z | PN5 | E | 2007-04-22 03:42:00 | 0.2 | y | 414 | 354 | |||
| IIEES | NASN | E | Sg | E | 2007-04-22 03:42:56 | -0.1 | y | 414 | 354 | |||
| IIEES | GHVR | Z | PN5 | E | 2007-04-22 03:42:26 | -0.1 | y | 628 | 343 | |||
