Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2007-11-29 13:52:10.8 |
| Date & Time (Local) | 1386/9/8 17:22:10.8 |

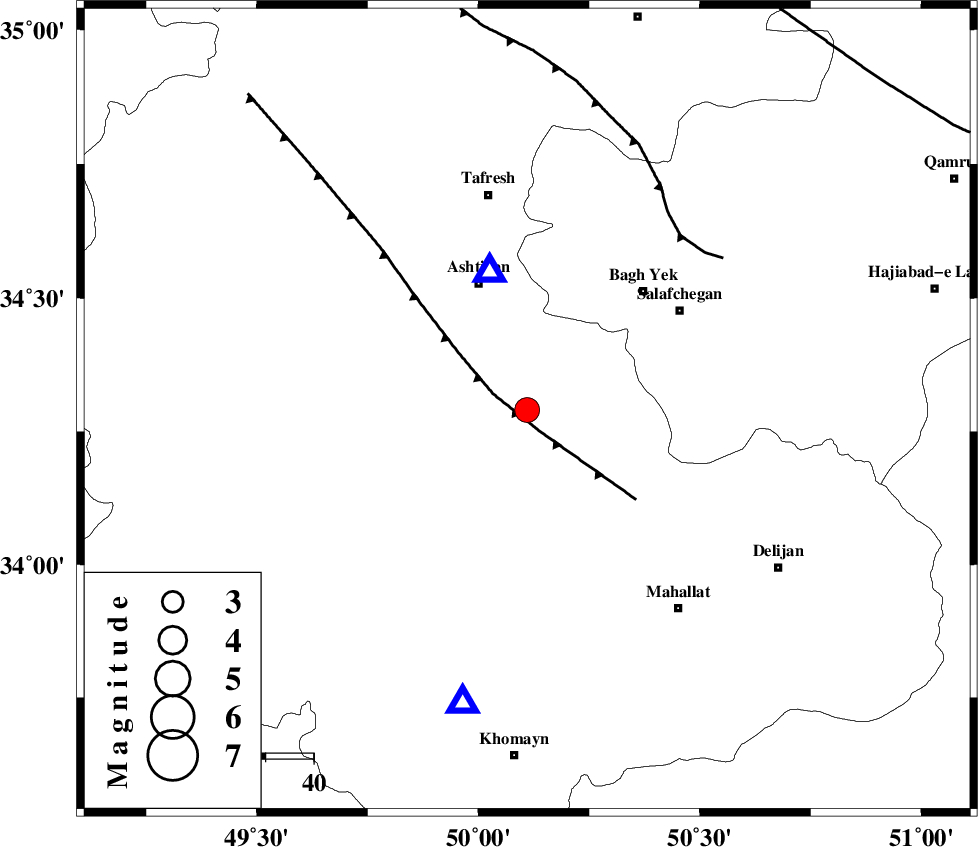

| Location | Lat:34.29 Lon: 50.11 |
| Region | 28 km South-East of Ashtiyan, Markazi Province |
Nearest Cities |
|
| 12 km North of Ebrahimabad, Markazi Province | |
| 13 km of Salehabad, Markazi Province | |
| 22 km East of Davoodabad, Markazi Province | |
| 28 km South East of Ashtiyan, Markazi Province | |
| 31 km South West of Dastjerd, Qom Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| TAFRESH_F (Length: 117 km) , Distance to epicenter: 5 km | |
| INDES_F (Length: 98 km) , Distance to epicenter: 48 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 98 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >6 km |
| Error in Longitude | 8.1 km |
| Error in Depth | 12 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 40319 | IIEES | GHVR | E | 1315.3 | 0.28 | 2007-11-29 13:52:47 | 2008-04-12 10:47:00 | n |
| 40320 | IIEES | THKV | N | 820.4 | 0.32 | 2007-11-29 13:53:11 | 2008-04-12 10:47:00 | n |
| 40321 | IIEES | THKV | E | 443.6 | 0.66 | 2007-11-29 13:53:21 | 2008-04-12 10:47:00 | n |
| 40322 | IIEES | DAMV | E | 328.5 | 0.44 | 2007-11-29 13:53:20 | 2008-04-12 10:47:00 | n |
| 40323 | IIEES | DAMV | N | 353.4 | 0.52 | 2007-11-29 13:53:22 | 2008-04-12 10:47:00 | n |
| 40324 | IIEES | SHGR | N | 252.4 | 0.56 | 2007-11-29 13:53:28 | 2008-04-12 10:47:00 | n |
| 40325 | IIEES | SHGR | E | 196 | 0.48 | 2007-11-29 13:53:33 | 2008-04-12 10:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ASAO | Z | Pg | E | 2007-11-29 13:52:16 | 0.4 | y | 30.1 | 346 | |||
| IIEES | GHVR | Z | Pg | E | 2007-11-29 13:52:29 | 0.5 | y | 107 | 78 | |||
| IIEES | THKV | Z | Pg | E | 2007-11-29 13:52:43 | -0.4 | y | 194 | 21 | |||
| IIEES | CHTH | Z | Pg | E | 2007-11-29 13:52:44 | -0.8 | y | 203 | 27 | |||
| IIEES | CHTH | E | Sg | E | 2007-11-29 13:53:11 | 0.2 | y | 203 | 27 | |||
| IIEES | DAMV | Z | Pn | E | 2007-11-29 13:52:47 | -0.2 | y | 226 | 48 | |||
| IIEES | SHGR | Z | Pn | E | 2007-11-29 13:52:52 | -0.2 | y | 270 | 207 | |||
| IIEES | ZNJK | Z | Pn | E | 2007-11-29 13:52:56 | 0.3 | y | 294 | 334 | |||
| IIEES | NASN | Z | Pn | E | 2007-11-29 13:52:57 | 0.1 | y | 300 | 123 | |||
