Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2009-01-25 11:22:10.1 |
| Date & Time (Local) | 1387/11/6 14:52:10.1 |

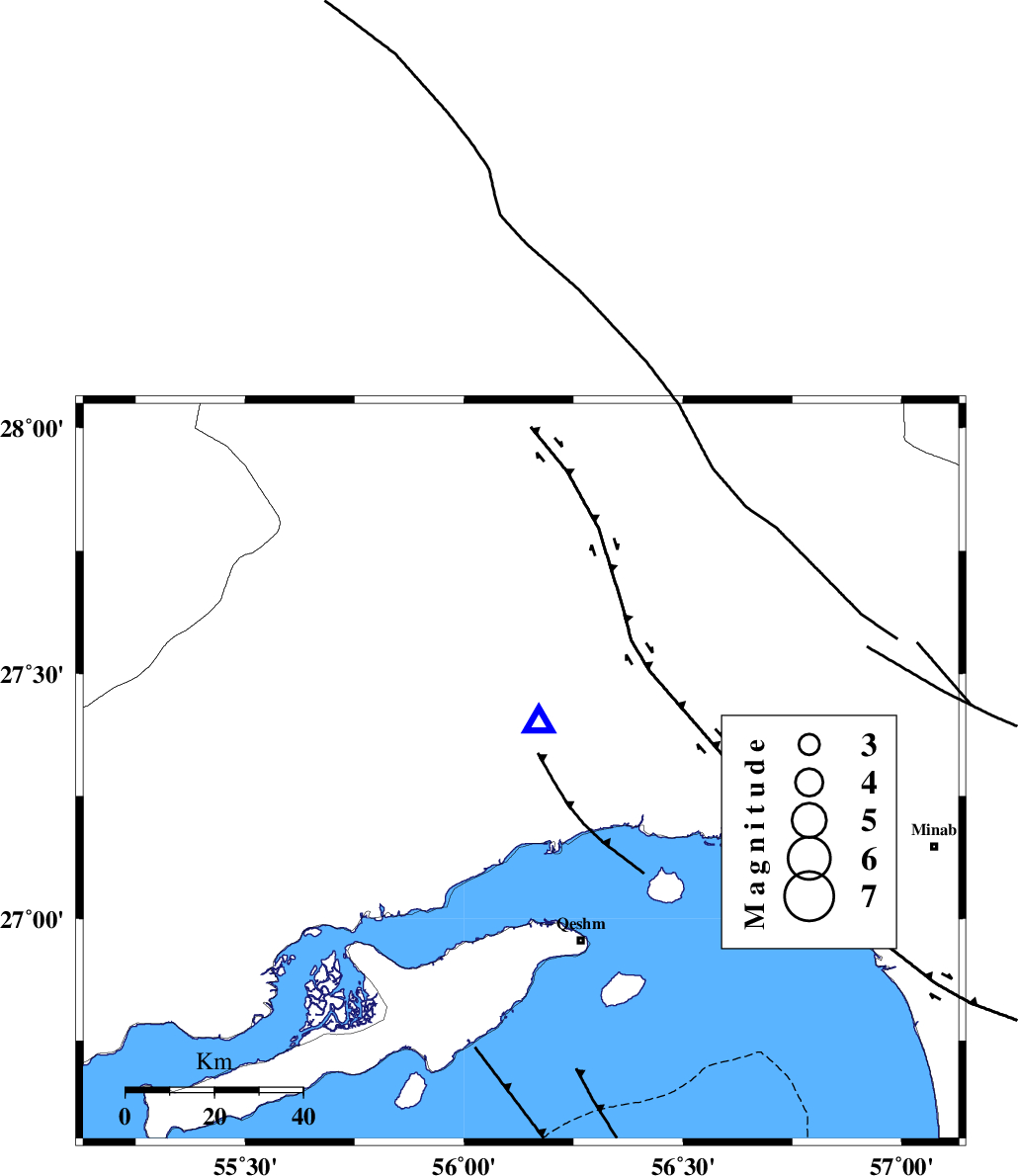

| Location | Lat:27.3 Lon: 56.13 |
| Region | 19 km North-West of Bandar-e abbas, Hormozgan Province |
Nearest Cities |
|
| 20 km North West of Bandar-e abbas, Hormozgan Province | |
| 41 km North West of Qeshm, Hormozgan Province | |
| 44 km South East of Fin, Hormozgan Province | |
| 59 km North of Suza, Hormozgan Province | |
| 66 km North East of Bandar-e khamir, Hormozgan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 47 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 56 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 84 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >4.4 km |
| Error in Longitude | 7.1 km |
| Error in Depth | 3.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 51760 | IIEES | BNDS | N | 6354.3 | 0.38 | 2009-01-25 11:22:36 | 2009-06-27 08:52:00 | n |
| 51761 | IIEES | KRBR | N | 263.5 | 0.7 | 2009-01-25 11:23:48 | 2009-06-27 08:52:00 | n |
| 51762 | IIEES | GHIR | N | 133.6 | 0.78 | 2009-01-25 11:24:00 | 2009-06-27 08:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2009-01-25 11:22:13 | 0 | y | 11.7 | 19 | |||
| IIEES | KRBR | Z | Pn | E | 2009-01-25 11:22:55 | 0 | y | 304 | 12 | |||
| IIEES | KRBR | N | Sg | E | 2009-01-25 11:23:35 | 0 | y | 304 | 12 | |||
| IIEES | GHIR | Z | Pn | E | 2009-01-25 11:22:58 | 0.1 | y | 329 | 290 | |||
| IIEES | NASN | Z | Pn | E | 2009-01-25 11:23:43 | -0.3 | y | 689 | 333 | |||
