Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2009-06-05 13:20:26.5 |
| Date & Time (Local) | 1388/3/15 17:50:26.5 |
| Location | Lat:29.92 Lon: 57.7 |
| Region | 72 km South-East of Kerman, Kerman Province |
Nearest Cities |
|
| 10 km North of Golbaft, Kerman Province | |
| 22 km South of Jushan, Kerman Province | |
| 33 km South East of Sirch, Kerman Province | |
| 42 km North East of Dehmirza, Kerman Province | |
| 42 km South East of Mahan, Kerman Province | |
| Depth | 14 km |
| Agency | |

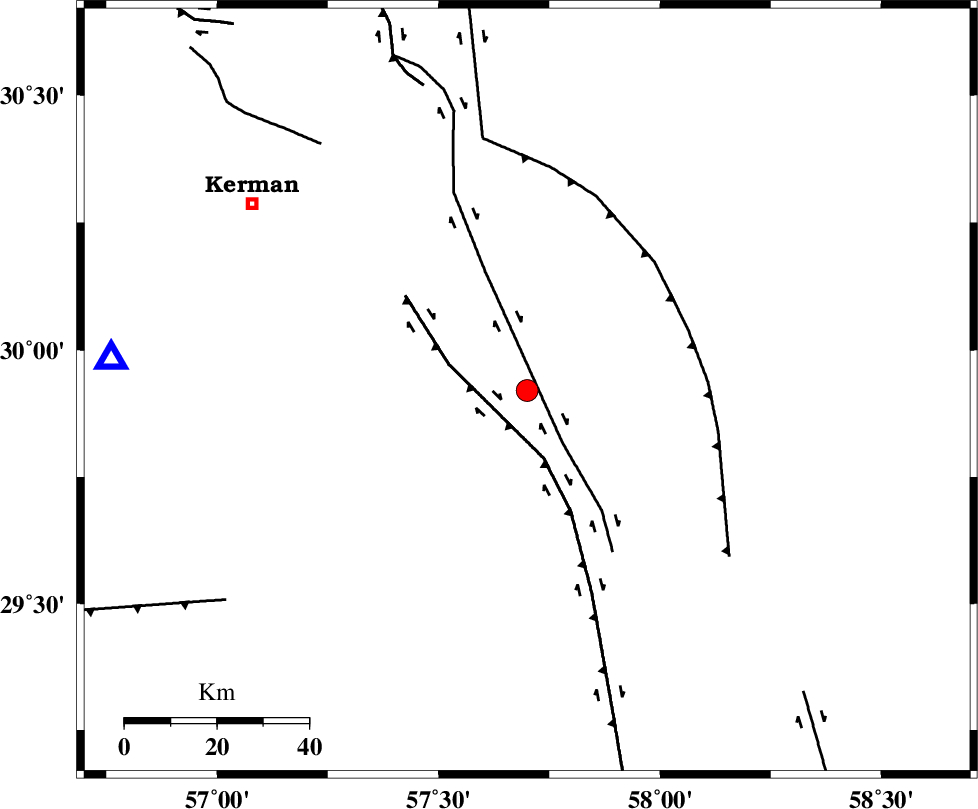

Faults within 150 km: |
|
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 14 km | |
| GOWK_F (Length: 152 km) , Distance to epicenter: 15 km | |
| SHAHDAD_F (Length: 108 km) , Distance to epicenter: 37 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 8.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 52886 | IIEES | KRBR | E | 971.2 | 0.23 | 2009-06-05 13:20:56 | 2009-07-13 01:52:00 | n |
| 52887 | IIEES | KRBR | N | 732.3 | 0.04 | 2009-06-05 13:20:57 | 2009-07-13 01:52:00 | n |
| 52888 | IIEES | ZHSF | N | 67.8 | 0.42 | 2009-06-05 13:21:53 | 2009-07-13 01:52:00 | n |
| 52889 | IIEES | BNDS | E | 72.2 | 0.24 | 2009-06-05 13:22:00 | 2009-07-13 01:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2009-06-05 13:20:42 | -0.2 | y | 90.7 | 275 | |||
| IIEES | KRBR | N | Sg | E | 2009-06-05 13:20:53 | 0.1 | y | 90.7 | 275 | |||
| IIEES | ZHSF | Z | Pn | E | 2009-06-05 13:21:11 | 0 | y | 300 | 96 | |||
| IIEES | BNDS | Z | Pn | E | 2009-06-05 13:21:13 | 0.2 | y | 316 | 208 | |||
| IIEES | BNDS | E | Sg | E | 2009-06-05 13:21:55 | -0.1 | y | 316 | 208 | |||
