Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2009-06-30 17:21:37.3 |
| Date & Time (Local) | 1388/4/9 21:51:37.3 |

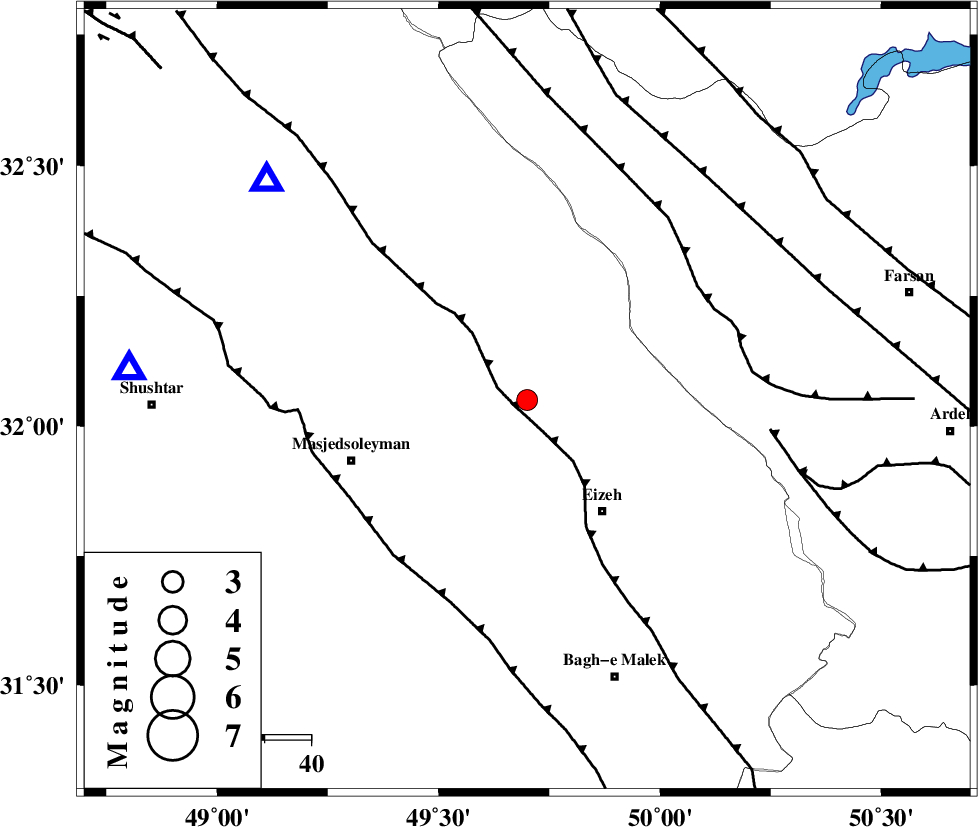

| Location | Lat:32.05 Lon: 49.7 |
| Region | 28 km North-West of Izeh, Khoozestan Province |
Nearest Cities |
|
| 13 km North West of Torshak, Khoozestan Province | |
| 23 km North West of Rasvand, Khoozestan Province | |
| 29 km North West of Izeh, Khoozestan Province | |
| 30 km South East of Paabshalal, Khoozestan Province | |
| 30 km South East of Qale-yekhvaju, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 3 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 43 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 44 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 53096 | IIEES | SHGR | E | 762 | 0.15 | 2009-06-30 17:22:04 | 2009-07-13 01:52:00 | n |
| 53097 | IIEES | SHGR | N | 612.2 | 0.15 | 2009-06-30 17:22:04 | 2009-07-13 01:52:00 | n |
| 53098 | IIEES | KHMZ | N | 143.5 | 0.56 | 2009-06-30 17:22:40 | 2009-07-13 01:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2009-06-30 17:21:51 | 0 | y | 85.3 | 275 | |||
| IIEES | KHMZ | Z | Pg | E | 2009-06-30 17:22:08 | 0 | y | 189 | 7 | |||
| IIEES | ASAO | Z | Pn | E | 2009-06-30 17:22:19 | 0 | y | 279 | 6 | |||
| IIEES | NASN | Z | Pn | E | 2009-06-30 17:22:22 | 0 | y | 304 | 73 | |||
