Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2009-07-14 03:16:40.6 |
| Date & Time (Local) | 1388/4/23 07:46:40.6 |

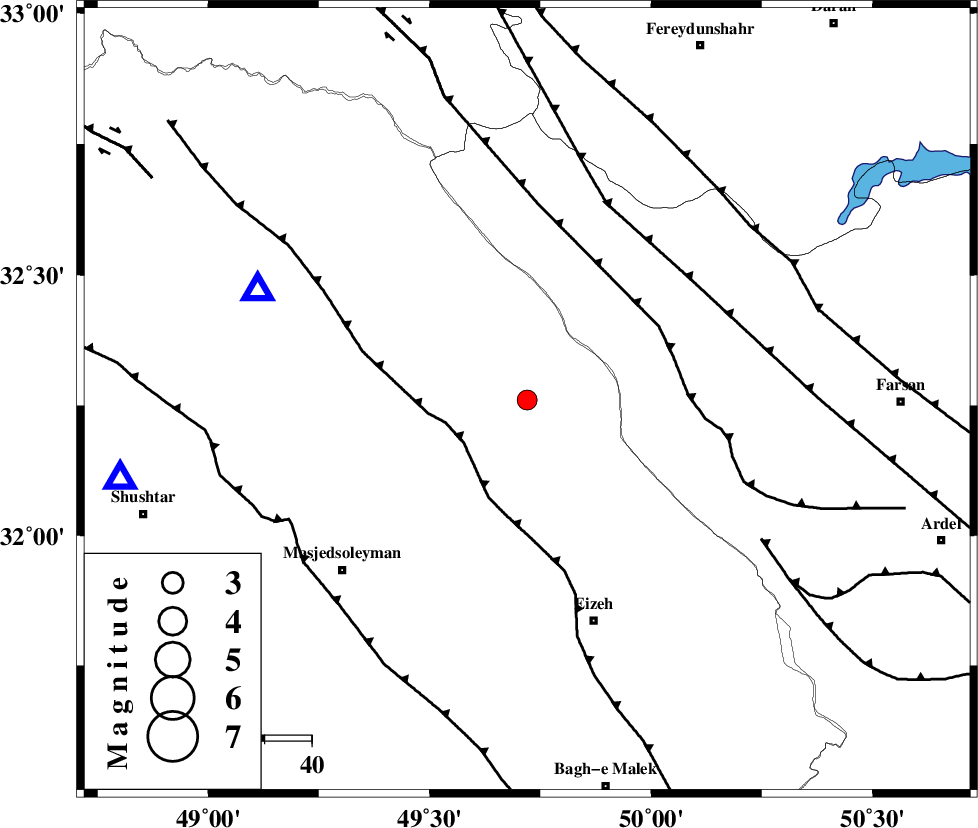

| Location | Lat:32.26 Lon: 49.72 |
| Region | Khoozestan Province, 49 km North-West of Izeh |
Nearest Cities |
|
| 15 km East of Paabshalal, Khoozestan Province | |
| 27 km North East of Qale-yekhvaju, Khoozestan Province | |
| 31 km North West of Torshak, Khoozestan Province | |
| 44 km South West of Chelgard, Chaharmahal Bakhtiari Province | |
| 45 km North of Rasvand, Khoozestan Province | |
| Depth | 46 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 16 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 32 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 43 km | |
| Number of Phases | 7 |
| RMS | 0.5 |
| Number of Stations | 5 |
| Error in Latitude | >9.6 km |
| Error in Longitude | 13.4 km |
| Error in Depth | 11.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 57901 | IIEES | SHGR | E | 530.3 | 0.64 | 2009-07-14 03:17:13 | 2009-10-25 09:10:00 | n |
| 57902 | IIEES | SHGR | N | 517.7 | 0.76 | 2009-07-14 03:17:14 | 2009-10-25 09:10:00 | n |
| 57903 | IIEES | KHMZ | N | 79.6 | 0.4 | 2009-07-14 03:17:32 | 2009-10-25 09:10:00 | n |
| 57904 | IIEES | KHMZ | E | 107.6 | 0.44 | 2009-07-14 03:17:35 | 2009-10-25 09:10:00 | n |
| 57905 | IIEES | ASAO | N | 43.5 | 0.52 | 2009-07-14 03:18:00 | 2009-10-25 09:10:00 | n |
| 57906 | IIEES | GHVR | E | 50.1 | 0.56 | 2009-07-14 03:18:05 | 2009-10-25 09:10:00 | n |
| 57907 | IIEES | GHVR | N | 47.6 | 0.52 | 2009-07-14 03:18:08 | 2009-10-25 09:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2009-07-14 03:16:56 | 0 | y | 88.1 | 260 | |||
| IIEES | KHMZ | Z | PN5 | E | 2009-07-14 03:17:05 | -0.8 | y | 166 | 8 | |||
| IIEES | KHMZ | E | Sg | E | 2009-07-14 03:17:28 | 0.7 | y | 166 | 8 | |||
| IIEES | ASAO | Z | Pn | E | 2009-07-14 03:17:17 | 0.3 | y | 256 | 6 | |||
| IIEES | GHVR | Z | Pn | E | 2009-07-14 03:17:20 | -0.2 | y | 285 | 30 | |||
| IIEES | GHVR | N | Sg | E | 2009-07-14 03:17:58 | -0.5 | y | 285 | 30 | |||
| IIEES | NASN | Z | Pn | E | 2009-07-14 03:17:22 | 0.5 | y | 296 | 77 | |||
