Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2010-05-28 20:11:05.6 |
| Date & Time (Local) | 1389/3/8 00:41:05.6 |
| Location | Lat:33.16 Lon: 54.81 |
| Region | Esfahan Province, 119 km North-East of Ardakan |
Nearest Cities |
|
| 12 km North West of Hajiabad, Yazd Province | |
| 45 km North East of Zarrin, Yazd Province | |
| 50 km South West of Mehranjan, Esfahan Province | |
| 65 km South East of Chupanan, Esfahan Province | |
| 72 km North West of Robat-e posht-e badam, Yazd Province | |
| Depth | 46 km |
| Agency | |

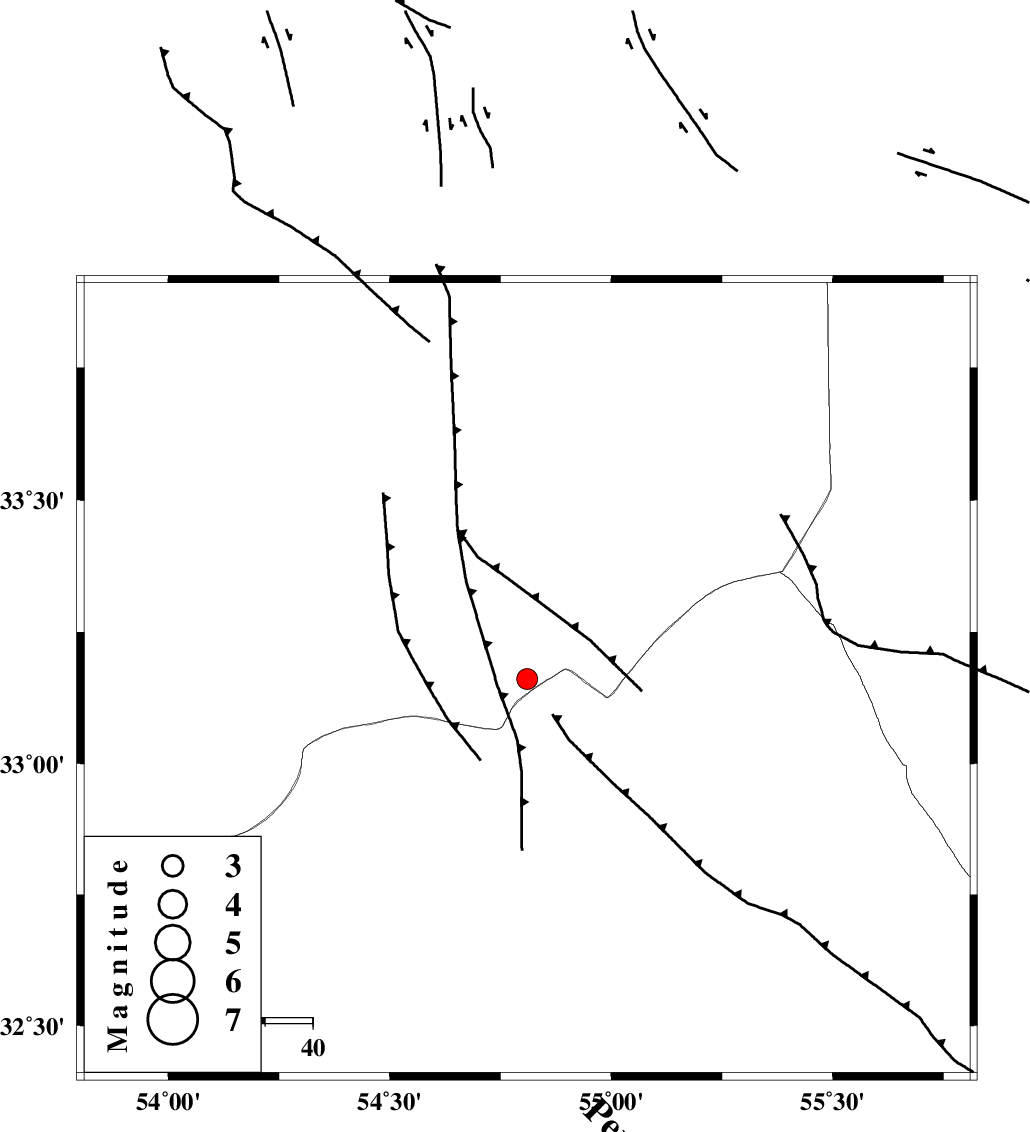

Faults within 150 km: |
|
| BIABANAK_F (Length: 162 km) , Distance to epicenter: 29 km | |
| POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 66 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 82 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >4.5 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 63270 | IIEES | NASN | N | 82.6 | 0.36 | 2010-05-28 20:12:01 | 2010-05-28 08:27:00 | n |
| 63271 | IIEES | TABS | N | 61.8 | 0.6 | 2010-05-28 20:12:16 | 2010-05-28 08:27:00 | n |
| 63272 | IIEES | KRBR | N | 52.8 | 0.63 | 2010-05-28 20:12:57 | 2010-05-28 08:27:00 | n |
| 63273 | IIEES | KRBR | E | 37.5 | 0.24 | 2010-05-28 20:12:58 | 2010-05-28 08:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pn | E | 2010-05-28 20:11:34 | 0.1 | y | 191 | 259 | |||
| IIEES | NASN | N | Sg | E | 2010-05-28 20:11:59 | 0 | y | 191 | 259 | |||
| IIEES | TABS | Z | Pn | E | 2010-05-28 20:11:38 | 0.3 | y | 222 | 75 | |||
| IIEES | SHRO | Z | Pn | E | 2010-05-28 20:11:51 | -0.2 | y | 335 | 19 | |||
| IIEES | KRBR | N | Pn | E | 2010-05-28 20:11:59 | -0.2 | y | 398 | 152 | |||
