Event Specification
Magnitude |
5.1 |
| Date & Time (UTC) | 2010-07-20 19:50:08.9 |
| Date & Time (Local) | 1389/4/30 00:20:08.9 |

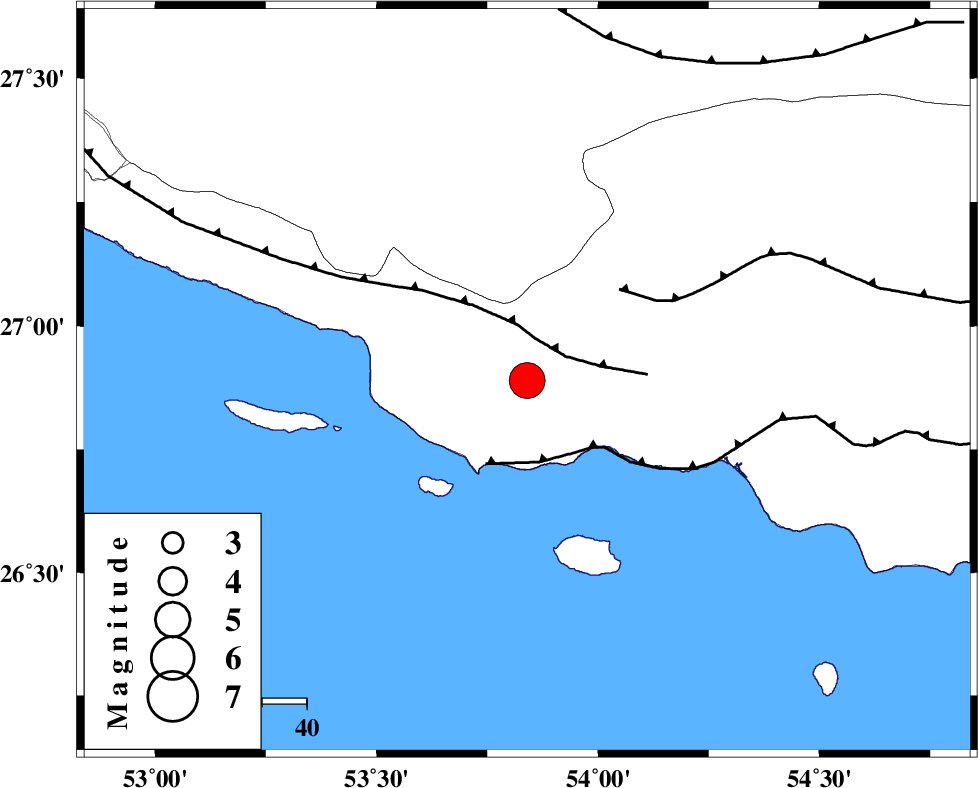

| Location | Lat:26.89 Lon: 53.84 |
| Region | Hormozgan Province, 62 km South-West of Bastak |
Nearest Cities |
|
| 33 km South East of Ahl, Fars Province | |
| 43 km South East of Ashkenan, Fars Province | |
| 46 km South West of Jenah, Hormozgan Province | |
| 62 km South West of Bastak, Hormozgan Province | |
| 68 km South East of Beyram, Fars Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 10 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 19 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 29 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >9.5 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 66070 | IIEES | GHIR | N | 30619.5 | 0.68 | 2010-07-20 19:51:05 | 2010-07-20 08:26:00 | n |
| 66071 | IIEES | GHIR | E | 30250.2 | 0.6 | 2010-07-20 19:51:06 | 2010-07-20 08:26:00 | n |
| 66072 | IIEES | KRBR | N | 1671.5 | 0.56 | 2010-07-20 19:52:21 | 2010-07-20 08:26:00 | n |
| 66073 | IIEES | KRBR | E | 1784.5 | 0.72 | 2010-07-20 19:52:32 | 2010-07-20 08:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2010-07-20 19:50:39 | 0.1 | y | 176 | 332 | |||
| IIEES | BNDS | Z | Pn | E | 2010-07-20 19:50:46 | -0.1 | y | 238 | 76 | |||
| IIEES | AHRM | Z | Pn | E | 2010-07-20 19:50:58 | 0.1 | y | 332 | 312 | |||
| IIEES | AHRM | E | Sg | E | 2010-07-20 19:51:47 | -0.1 | y | 332 | 312 | |||
| IIEES | KRBR | Z | Pn | E | 2010-07-20 19:51:12 | 0 | y | 447 | 39 | |||
