Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2010-07-29 16:02:26.6 |
| Date & Time (Local) | 1389/5/7 20:32:26.6 |

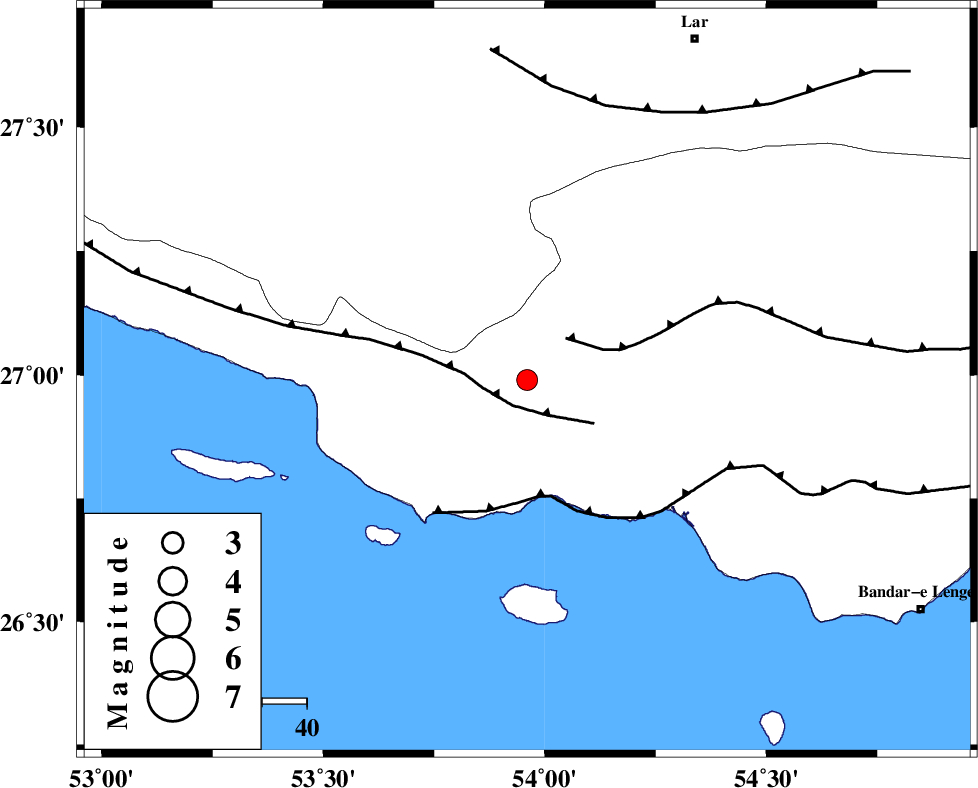

| Location | Lat:26.99 Lon: 53.96 |
| Region | Hormozgan Province, 46 km South-West of Bastak |
Nearest Cities |
|
| 30 km South East of Ahl, Fars Province | |
| 32 km West of Jenah, Hormozgan Province | |
| 43 km South East of Ashkenan, Fars Province | |
| 46 km South West of Bastak, Hormozgan Province | |
| 57 km South of Bagh, Fars Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 7 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 13 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 26 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >8.1 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 6.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 67050 | IIEES | GHIR | N | 143 | 0.56 | 2010-07-29 16:03:21 | 2010-07-29 04:13:00 | n |
| 67051 | IIEES | GHIR | E | 133.9 | 0.4 | 2010-07-29 16:03:21 | 2010-07-29 04:13:00 | n |
| 67052 | IIEES | BNDS | N | 144.8 | 0.48 | 2010-07-29 16:03:37 | 2010-07-29 04:13:00 | n |
| 67053 | IIEES | BNDS | E | 128 | 0.6 | 2010-07-29 16:03:39 | 2010-07-29 04:13:00 | n |
| 67054 | IIEES | KRBR | N | 33 | 0.48 | 2010-07-29 16:04:36 | 2010-07-29 04:13:00 | n |
| 67055 | IIEES | KRBR | E | 31.2 | 0.56 | 2010-07-29 16:04:41 | 2010-07-29 04:13:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pn | E | 2010-07-29 16:02:55 | 0 | y | 173 | 327 | |||
| IIEES | GHIR | N | Sg | E | 2010-07-29 16:03:16 | 0 | y | 173 | 327 | |||
| IIEES | BNDS | Z | Pn | E | 2010-07-29 16:03:02 | 0 | y | 224 | 78 | |||
| IIEES | BNDS | N | Sg | E | 2010-07-29 16:03:30 | 0 | y | 224 | 78 | |||
| IIEES | KRBR | Z | Pn | E | 2010-07-29 16:03:28 | 0 | y | 431 | 39 | |||
