Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2010-09-08 02:30:06.5 |
| Date & Time (Local) | 1389/6/17 07:00:06.5 |

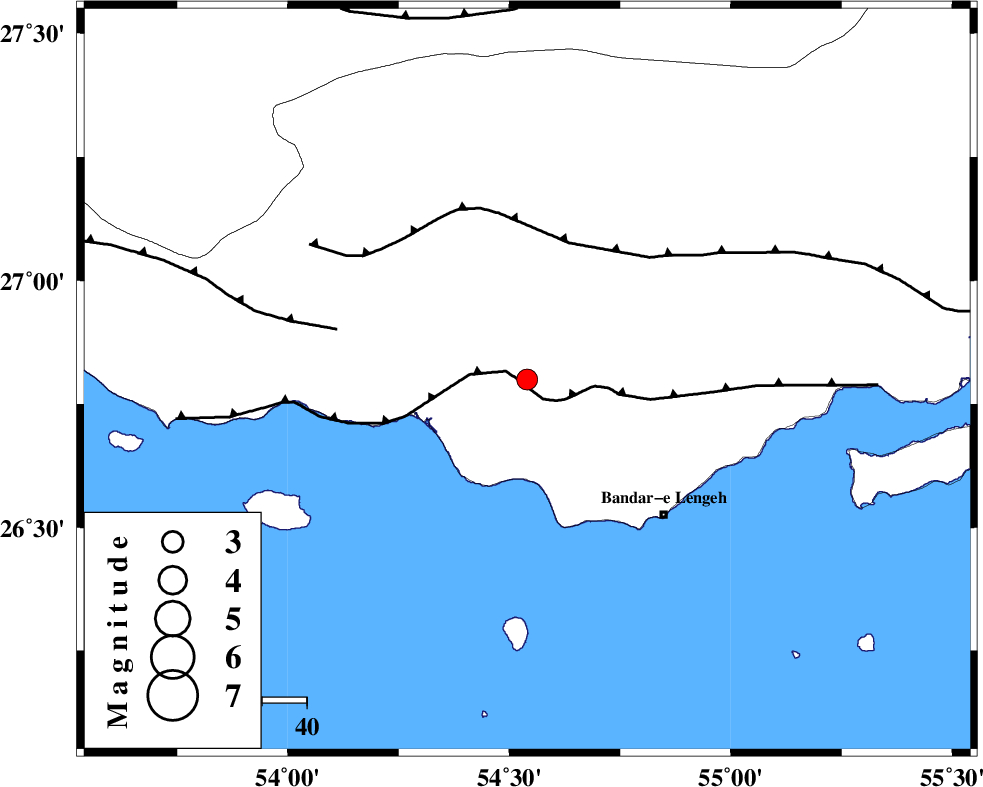

| Location | Lat:26.8 Lon: 54.54 |
| Region | Hormozgan Province, 48 km South-East of Bastak |
Nearest Cities |
|
| 35 km South East of Jenah, Hormozgan Province | |
| 43 km North West of Bandar-e lengeh, Hormozgan Province | |
| 48 km South East of Bastak, Hormozgan Province | |
| 90 km South East of Ahl, Fars Province | |
| 92 km South East of Bagh, Fars Province | |
| Depth | 44 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 3 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 32 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 44 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >7.6 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 4.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 70072 | IIEES | BNDS | E | 192.4 | 0 | 2010-09-08 02:31:00 | 2010-09-08 03:49:00 | n |
| 70073 | IIEES | BNDS | N | 212.5 | 0.11 | 2010-09-08 02:31:02 | 2010-09-08 03:49:00 | n |
| 70074 | IIEES | GHIR | N | 115.2 | 0.36 | 2010-09-08 02:31:19 | 2010-09-08 03:49:00 | n |
| 70075 | IIEES | GHIR | E | 122.7 | 0.85 | 2010-09-08 02:31:20 | 2010-09-08 03:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2010-09-08 02:30:35 | 0.1 | y | 175 | 67 | |||
| IIEES | BNDS | E | Sg | E | 2010-09-08 02:30:56 | -0.1 | y | 175 | 67 | |||
| IIEES | GHIR | Z | Pg | E | 2010-09-08 02:30:42 | -0.1 | y | 225 | 317 | |||
| IIEES | GHIR | N | Sg | E | 2010-09-08 02:31:09 | 0.1 | y | 225 | 317 | |||
| IIEES | KRBR | Z | Pn | E | 2010-09-08 02:31:03 | 0.2 | y | 414 | 31 | |||
| IIEES | NASN | Z | Pn | E | 2010-09-08 02:31:36 | -0.3 | y | 686 | 346 | |||
