Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2010-10-01 16:11:44.9 |
| Date & Time (Local) | 1389/7/9 19:41:44.9 |
| Location | Lat:30.83 Lon: 49.76 |
| Region | Khoozestan Province, 9 km Omidiyeh |
Nearest Cities |
|
| 9 km North of Omidiyeh, Khoozestan Province | |
| 10 km of Jayzan, Khoozestan Province | |
| 12 km North of Chah-e salem, Khoozestan Province | |
| 14 km North West of Jolaki, Khoozestan Province | |
| 16 km North of Aghajari, Khoozestan Province | |
| Depth | 14 km |
| Agency | |

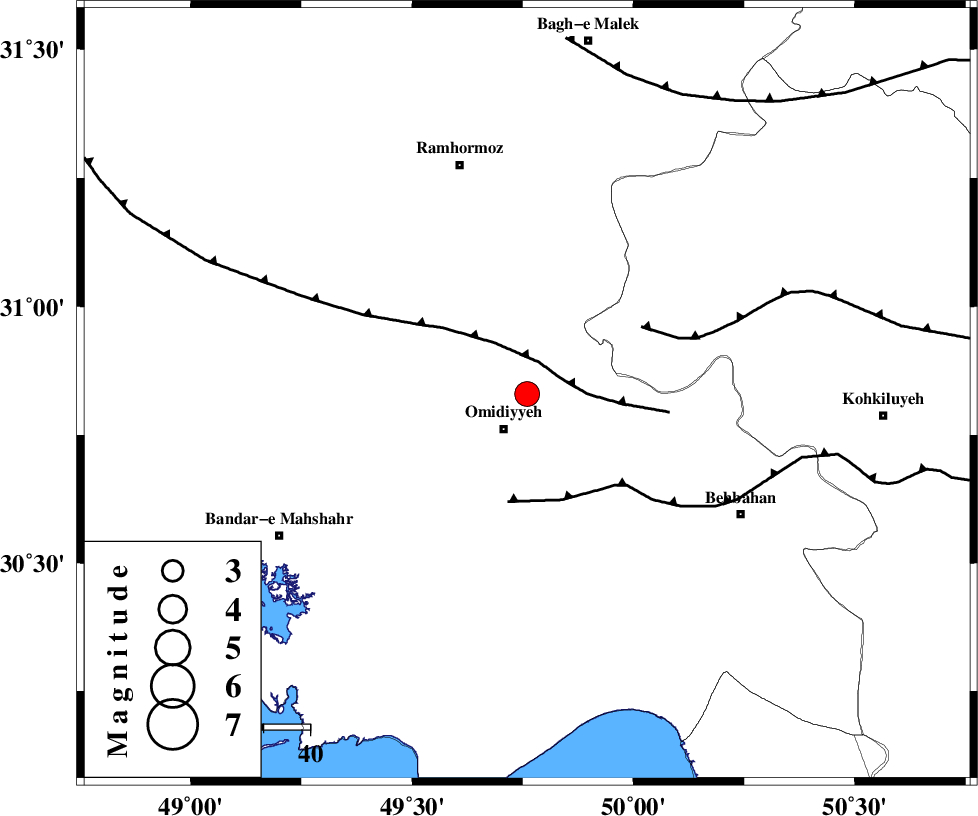

Faults within 150 km: |
|
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 13 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 25 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 39 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 71330 | IIEES | AHRM | N | 261.1 | 0.6 | 2010-10-01 16:13:12 | 2010-10-01 04:30:00 | n |
| 71331 | IIEES | AHRM | E | 276.9 | 0.6 | 2010-10-01 16:13:14 | 2010-10-01 04:30:00 | n |
| 71332 | IIEES | GHIR | N | 56.6 | 0.52 | 2010-10-01 16:14:09 | 2010-10-01 04:30:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | P | E | 2010-10-01 16:12:12 | -0.1 | y | 169 | 327 | |||
| IIEES | AHRM | Z | Pn | E | 2010-10-01 16:12:25 | 0 | y | 263 | 145 | |||
| IIEES | AHRM | E | Sg | E | 2010-10-01 16:12:58 | -0.1 | y | 263 | 145 | |||
| IIEES | KHMZ | Z | P | E | 2010-10-01 16:12:33 | 0.1 | y | 323 | 3 | |||
| IIEES | NASN | Z | Pn | E | 2010-10-01 16:12:37 | -0.2 | y | 362 | 52 | |||
| IIEES | GHIR | Z | P | E | 2010-10-01 16:12:45 | 0.2 | y | 421 | 131 | |||
