Magnitude
 3.4
Date & Time (UTC) 2010-10-28 13:56:11.7
Date & Time (Local) 1389/8/6  17:26:11.7

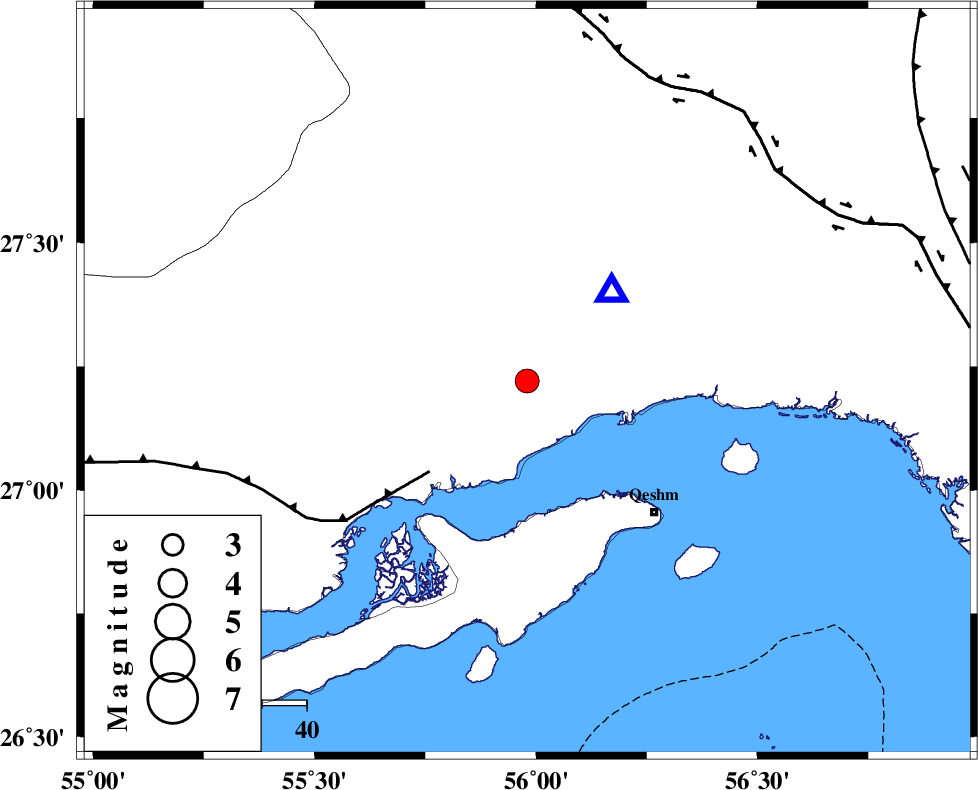

Location Lat:27.22 Lon: 55.98
Region Hormozgan Province, 30 km West of Bandar-e abbas
Nearest Cities
30 km North West of Bandar-e abbas, Hormozgan Province
41 km North West of Qeshm, Hormozgan Province
47 km South of Fin, Hormozgan Province
49 km North East of Bandar-e khamir, Hormozgan Province
50 km North of Suza, Hormozgan Province
Depth 7 km
Agency
Faults within 150 km:
MFF1 (Length: 180 km) , Distance to epicenter: 30 km
HZF2 (Length: 437 km) , Distance to epicenter: 73 km
ZFF1 (Length: 165 km) , Distance to epicenter: 80 km
Number of Phases 4
RMS 0
Number of Stations 3
Error in Latitude >11.1 km
Error in Longitude 8.8 km
Error in Depth 6.6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
72530IIEESBNDSE 7411.40.222010-10-28 13:56:232010-10-28 02:47:00n
72531IIEESBNDSN 7669.70.482010-10-28 13:56:252010-10-28 02:47:00n
72532IIEESKRBRE 108.80.362010-10-28 13:57:452010-10-28 02:47:00n
72533IIEESKRBRN 136.90.522010-10-28 13:57:472010-10-28 02:47:00n
72534IIEESGHIRN 980.482010-10-28 13:57:592010-10-28 02:47:00n
72535IIEESGHIRE 89.20.482010-10-28 13:58:032010-10-28 02:47:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESBNDSZ Pg E2010-10-28 13:56:160y27.143
IIEESBNDSN Sg E2010-10-28 13:56:200y27.143
IIEESKRBRN Pn E2010-10-28 13:56:590y31514
IIEESGHIRZ Pn E2010-10-28 13:56:590y318292
