Event Specification
Magnitude |
5.2 |
| Date & Time (UTC) | 2011-01-08 00:24:27.7 |
| Date & Time (Local) | 1389/10/18 03:54:27.7 |
| Location | Lat:30.18 Lon: 51.71 |
| Region | Fars Province, 19 km East of Nurabad |
Nearest Cities |
|
| 20 km North East of Nurabad, Fars Province | |
| 20 km North East of Gachgaran, Fars Province | |
| 20 km East of Masiri, Fars Province | |
| 24 km East of Fahlian-e olia, Fars Province | |
| 28 km West of Ardakan, Fars Province | |
| Depth | 39 km |
| Agency | |

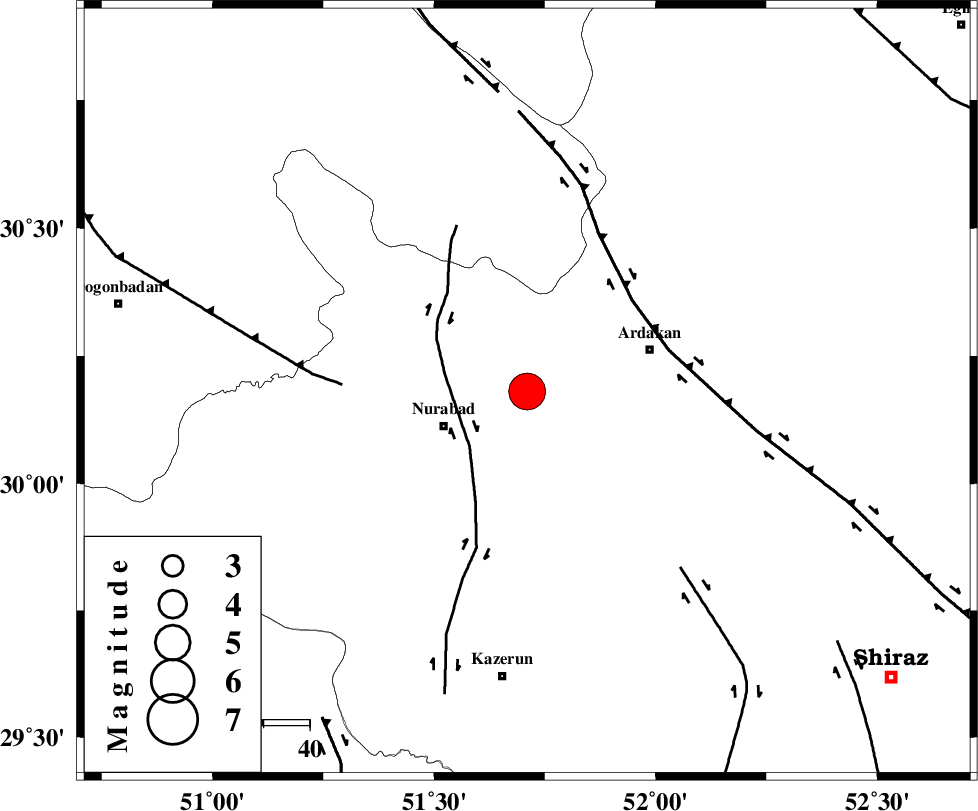

Faults within 150 km: |
|
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 17 km | |
| HZF3 (Length: 197 km) , Distance to epicenter: 30 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 40 km | |
| Number of Phases | 12 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 4 km |
| Error in Depth | 6.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 76958 | IIEES | AHRM | N | 61705.4 | 0.64 | 2011-01-08 00:25:16 | 2011-01-08 12:42:00 | n |
| 76959 | IIEES | AHRM | E | 40345.6 | 0.6 | 2011-01-08 00:25:17 | 2011-01-08 12:42:00 | n |
| 76960 | IIEES | GHIR | N | 15228.6 | 0.44 | 2011-01-08 00:25:42 | 2011-01-08 12:42:00 | n |
| 76961 | IIEES | GHIR | E | 15240.2 | 0.68 | 2011-01-08 00:25:52 | 2011-01-08 12:42:00 | n |
| 76962 | IIEES | SHGR | N | 5353.2 | 0.68 | 2011-01-08 00:26:19 | 2011-01-08 12:42:00 | n |
| 76963 | IIEES | SHGR | E | 6353.5 | 0.68 | 2011-01-08 00:26:32 | 2011-01-08 12:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2011-01-08 00:24:52 | 0.4 | y | 151 | 195 | |||
| IIEES | AHRM | E | Sg | E | 2011-01-08 00:25:10 | 0 | y | 151 | 195 | |||
| IIEES | GHIR | Z | Pn | E | 2011-01-08 00:25:03 | -0.1 | y | 244 | 149 | |||
| IIEES | NASN | Z | Pn | E | 2011-01-08 00:25:11 | 0.2 | y | 309 | 20 | |||
| IIEES | NASN | E | Sg | E | 2011-01-08 00:25:53 | 0.3 | y | 309 | 20 | |||
| IIEES | SHGR | Z | Pn | E | 2011-01-08 00:25:16 | -0.3 | y | 350 | 308 | |||
| IIEES | KHMZ | Z | Pn | E | 2011-01-08 00:25:25 | -0.5 | y | 428 | 338 | |||
| IIEES | GHVR | Z | Pn | E | 2011-01-08 00:25:33 | 0.4 | y | 479 | 355 | |||
| IIEES | KRBR | Z | Pn | E | 2011-01-08 00:25:34 | 0.3 | y | 488 | 91 | |||
| IIEES | KRBR | E | Sg | E | 2011-01-08 00:26:39 | -0.4 | y | 488 | 91 | |||
| IIEES | DAMV | Z | Pn | E | 2011-01-08 00:25:47 | -0.6 | y | 605 | 2 | |||
| IIEES | SNGE | Z | Pn | E | 2011-01-08 00:25:57 | 0 | y | 681 | 324 | |||
