Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2011-08-20 22:40:29.1 |
| Date & Time (Local) | 1390/5/30 03:10:29.1 |

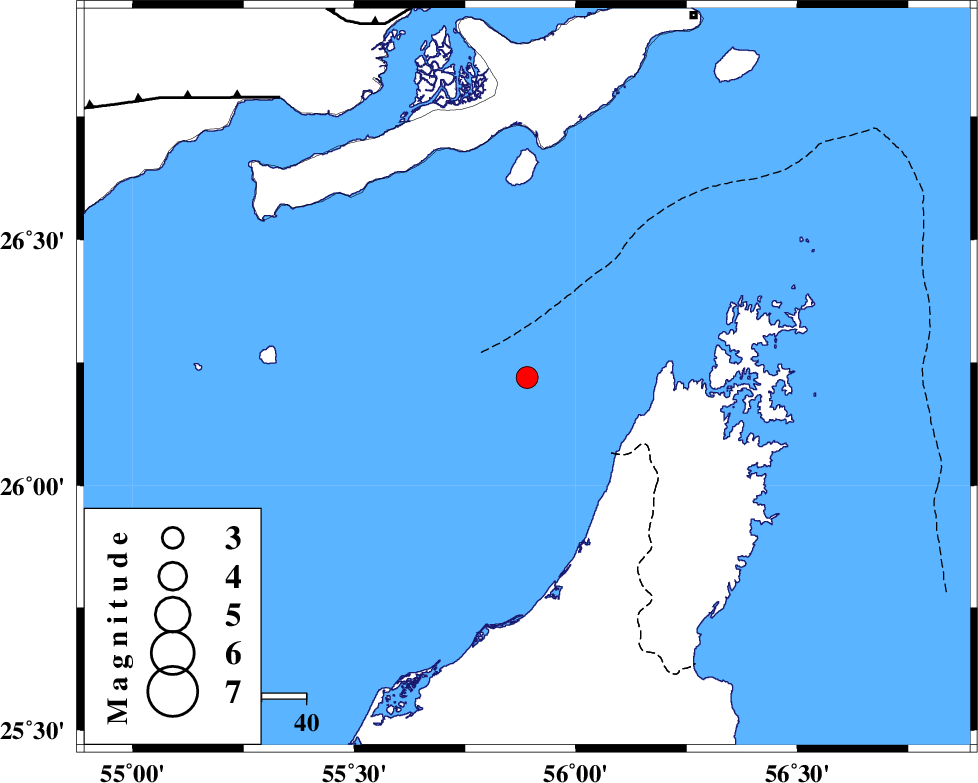

| Location | Lat:26.22 Lon: 55.89 |
| Region | Persian Gulf, 90 km South-West of Qeshm |
Nearest Cities |
|
| 64 km South West of Suza, Hormozgan Province | |
| 87 km South East of Bandar-e khamir, Hormozgan Province | |
| 90 km South West of Qeshm, Hormozgan Province | |
| 93 km North East of Abu Musa, Hormozgan Province | |
| 108 km North East of Sharjah, United Arab Emirates Province | |
| Depth | 33 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 84 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 86 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 132 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >5.4 km |
| Error in Longitude | 5.5 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 80045 | IIEES | BNDS | N | 353.7 | 0.95 | 2011-08-20 22:41:15 | 2011-08-21 12:59:00 | n |
| 80046 | IIEES | BNDS | E | 468.3 | 0.59 | 2011-08-20 22:41:17 | 2011-08-21 12:59:00 | n |
| 80047 | IIEES | GHIR | E | 67.3 | 0.78 | 2011-08-20 22:42:08 | 2011-08-21 12:59:00 | n |
| 80048 | IIEES | KRBR | N | 23.8 | 0.5 | 2011-08-20 22:42:12 | 2011-08-21 12:59:00 | n |
| 80049 | IIEES | KRBR | E | 31.4 | 0.33 | 2011-08-20 22:42:12 | 2011-08-21 12:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2011-08-20 22:40:51 | 0 | y | 134 | 12 | |||
| IIEES | BNDS | E | Sg | E | 2011-08-20 22:41:07 | -0.01 | y | 134 | 12 | |||
| IIEES | GHIR | Z | Pn | E | 2011-08-20 22:41:20 | 0 | y | 368 | 309 | |||
| IIEES | KRBR | Z | Pn | E | 2011-08-20 22:41:28 | 0 | y | 426 | 11 | |||
