Map Title

Magnitude
 3.5
Date & Time (UTC) 2011-09-02 04:45:10.6
Date & Time (Local) 1390/6/11  09:15:10.6

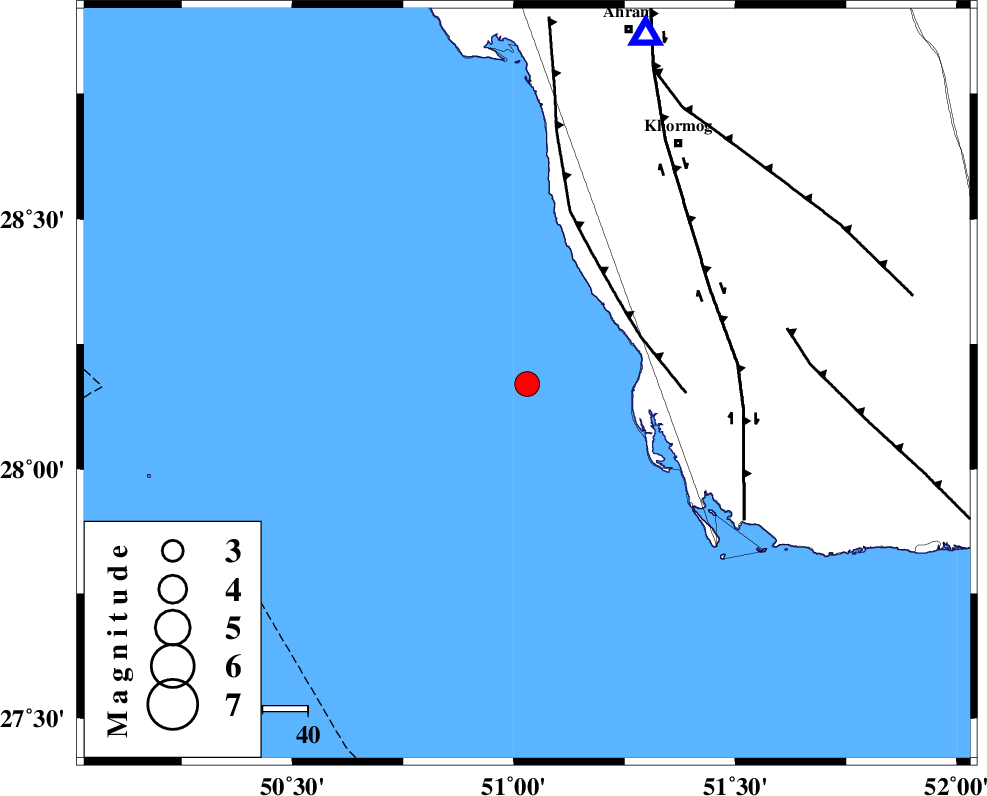

Location Lat:28.17 Lon: 51.03
Region Persian Gulf, 63 km South-West of Khormog
Nearest Cities
33 km West of Ziyarat, Bushehr Province
45 km North West of Bardkhun, Bushehr Province
48 km North West of Abkesh, Bushehr Province
51 km South West of Kaki, Bushehr Province
52 km South West of Baduleh, Bushehr Province
Depth 22 km
Agency
Faults within 150 km:
ZFF2 (Length: 84 km) , Distance to epicenter: 27 km
BORAZJAN_F (Length: 168 km) , Distance to epicenter: 46 km
MFF3 (Length: 292 km) , Distance to epicenter: 59 km
Number of Phases 7
RMS 0.1
Number of Stations 5
Error in Latitude >3.2 km
Error in Longitude 3.5 km
Error in Depth 4.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
80152IIEESAHRMN 1587.70.482011-09-02 04:45:382011-09-02 05:11:00n
80153IIEESGHIRE 580.80.722011-09-02 04:46:182011-09-02 05:11:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESAHRMZ P E2011-09-02 04:45:240.01y81.719
IIEESAHRMN Sg E2011-09-02 04:45:340.03y81.719
IIEESGHIRZ P E2011-09-02 04:45:410.07y19386
IIEESGHIRE Sg E2011-09-02 04:46:04-0.04y19386
IIEESNASNZ P E2011-09-02 04:46:25-0.03y54118
IIEESGHVRZ Pn E2011-09-02 04:46:44-0.14y7002
IIEESTABSZ Pn E2011-09-02 04:47:020.06y84142
