Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2012-02-04 06:19:33.3 |
| Date & Time (Local) | 1390/11/15 09:49:33.3 |

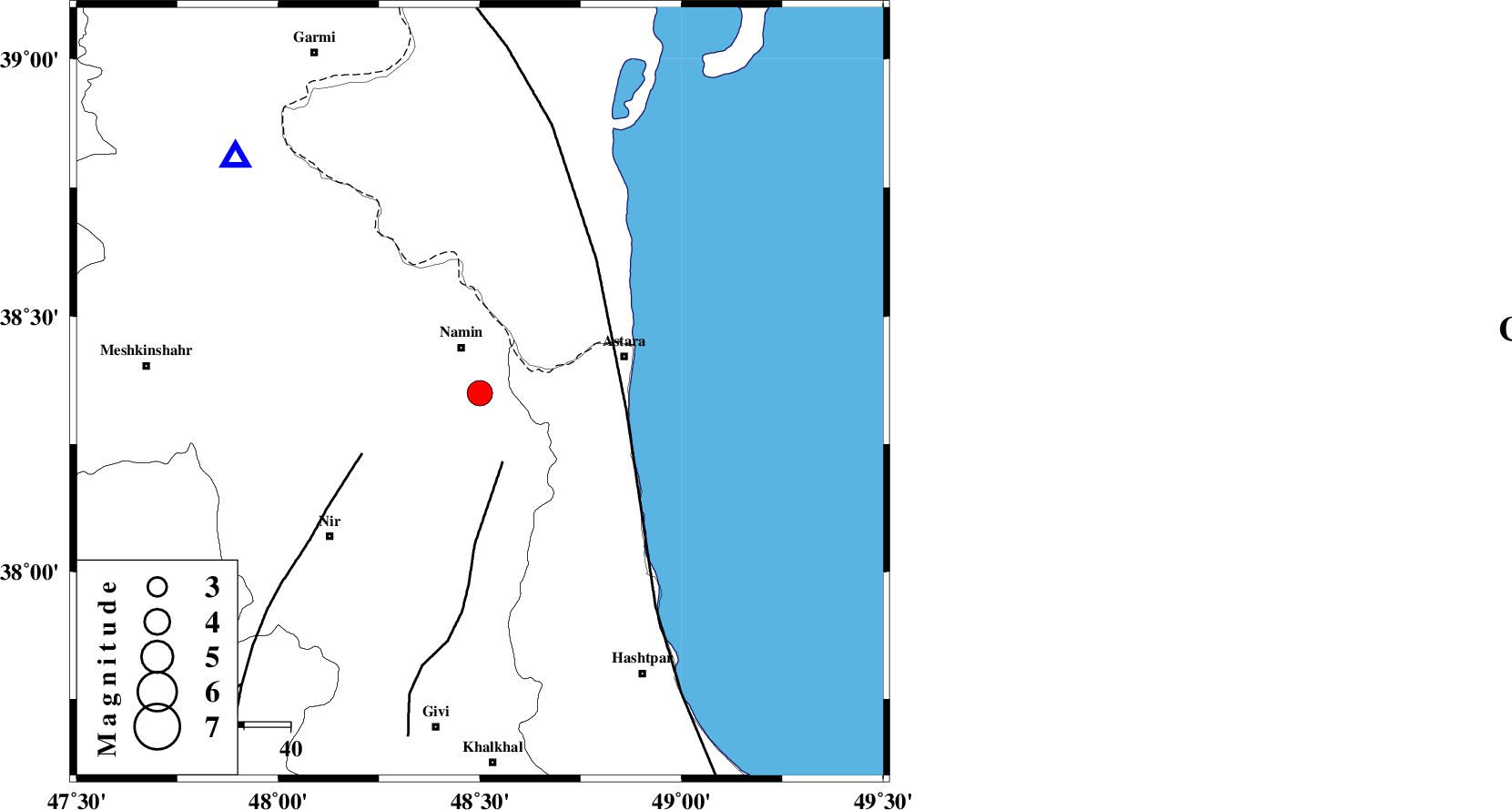

| Location | Lat:38.35 Lon: 48.5 |
| Region | Ardebil Province, 11 km Namin |
Nearest Cities |
|
| 3 km of Nanehkaran, Ardebil Province | |
| 8 km North of Baibiglu, Ardebil Province | |
| 11 km of Namin, Ardebil Province | |
| 14 km West of Kiladeh, Gilan Province | |
| 14 km North East of Niar, Ardebil Province | |
| Depth | 32 km |
| Agency | |
Faults within 150 km: |
|
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 16 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 29 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 32 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >4.4 km |
| Error in Longitude | 7.3 km |
| Error in Depth | 4.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 81736 | IIEES | GRMI | N | 6110.1 | 0.19 | 2012-02-04 06:19:57 | 2012-02-04 05:35:00 | n |
| 81737 | IIEES | THKV | N | 251.5 | 0.35 | 2012-02-04 06:21:00 | 2012-02-04 05:35:00 | n |
| 81738 | IIEES | THKV | E | 273.4 | 0.35 | 2012-02-04 06:21:02 | 2012-02-04 05:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-02-04 06:19:46 | -0.15 | y | 73.5 | 314 | |||
| IIEES | GRMI | E | Sg | E | 2012-02-04 06:19:56 | 0.19 | y | 73.5 | 314 | |||
| IIEES | ZNJK | Z | Pg | E | 2012-02-04 06:20:03 | -0.11 | y | 187 | 175 | |||
| IIEES | THKV | Z | Pn | E | 2012-02-04 06:20:22 | 0.26 | y | 343 | 141 | |||
| IIEES | MAKU | Z | Pn | E | 2012-02-04 06:20:22 | -0.16 | y | 350 | 290 | |||
| IIEES | CHTH | Z | Pn | E | 2012-02-04 06:20:23 | -0.35 | y | 358 | 138 | |||
| IIEES | ASAO | Z | Pn | E | 2012-02-04 06:20:34 | 0.23 | y | 443 | 162 | |||
| IIEES | GHVR | Z | Pn | E | 2012-02-04 06:20:40 | -0.02 | y | 495 | 149 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-02-04 06:20:45 | 0.21 | y | 528 | 165 | |||
