Event Specification
Magnitude |
2.3 |
| Date & Time (UTC) | 2012-03-16 04:35:23.1 |
| Date & Time (Local) | 1390/12/26 08:05:23.1 |
| Location | Lat:36.95 Lon: 49.09 |
| Region | Zanjan Province, 11 km East of Abbar |
Nearest Cities |
|
| 11 km North East of Abbar, Zanjan Province | |
| 15 km South of Qaleh rudkhan, Gilan Province | |
| 15 km North East of Void, Zanjan Province | |
| 16 km South West of Siyahmargi, Gilan Province | |
| 18 km South of Rudkhan, Gilan Province | |
| Depth | 18 km |
| Agency | |

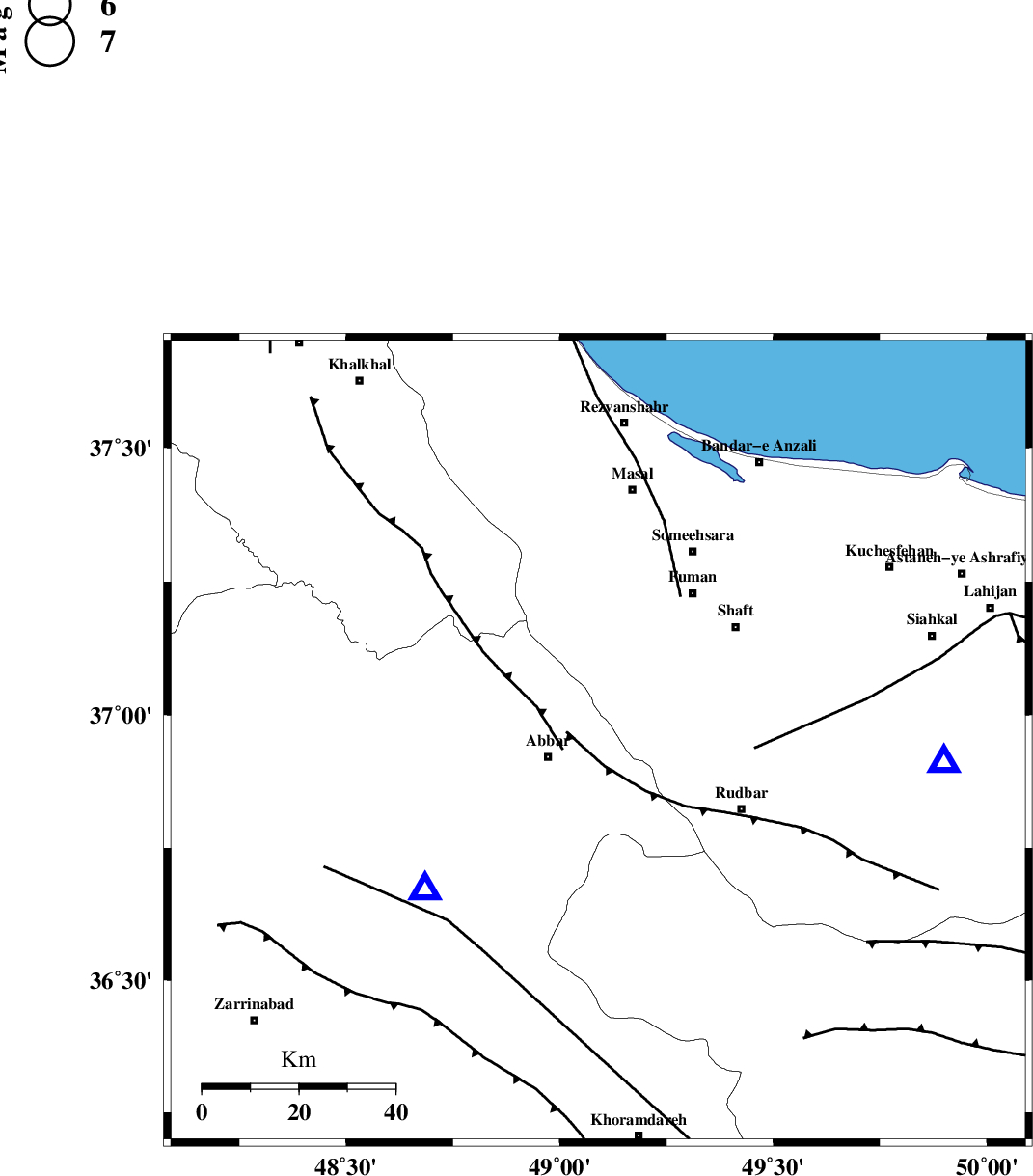

Faults within 150 km: |
|
| RUDBAR_F (Length: 93 km) , Distance to epicenter: 5 km | |
| MASULEL_F (Length: 90 km) , Distance to epicenter: 7 km | |
| LAHIJAN_F (Length: 92 km) , Distance to epicenter: 33 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >8.2 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 82370 | IIEES | ZNJK | N | 315.9 | 0.24 | 2012-03-16 04:35:38 | 2012-03-16 04:27:00 | n |
| 82371 | IIEES | ZNJK | E | 275 | 0.28 | 2012-03-16 04:35:38 | 2012-03-16 04:27:00 | n |
| 82372 | IIEES | THKV | E | 20.7 | 0.32 | 2012-03-16 04:36:23 | 2012-03-16 04:27:00 | n |
| 82373 | IIEES | THKV | N | 20.3 | 0.44 | 2012-03-16 04:36:23 | 2012-03-16 04:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2012-03-16 04:35:32 | 0.08 | y | 47.4 | 229 | |||
| IIEES | ZNJK | N | Sg | E | 2012-03-16 04:35:38 | -0.05 | y | 47.4 | 229 | |||
| IIEES | THKV | Z | Pn | E | 2012-03-16 04:35:55 | 0.1 | y | 197 | 125 | |||
| IIEES | THKV | N | Sg | E | 2012-03-16 04:36:19 | 0.02 | y | 197 | 125 | |||
| IIEES | CHTH | Z | Pn | E | 2012-03-16 04:35:57 | -0.15 | y | 216 | 122 | |||
