Event Specification
Magnitude |
2 |
| Date & Time (UTC) | 2012-03-18 20:47:43.6 |
| Date & Time (Local) | 1390/12/29 00:17:43.6 |

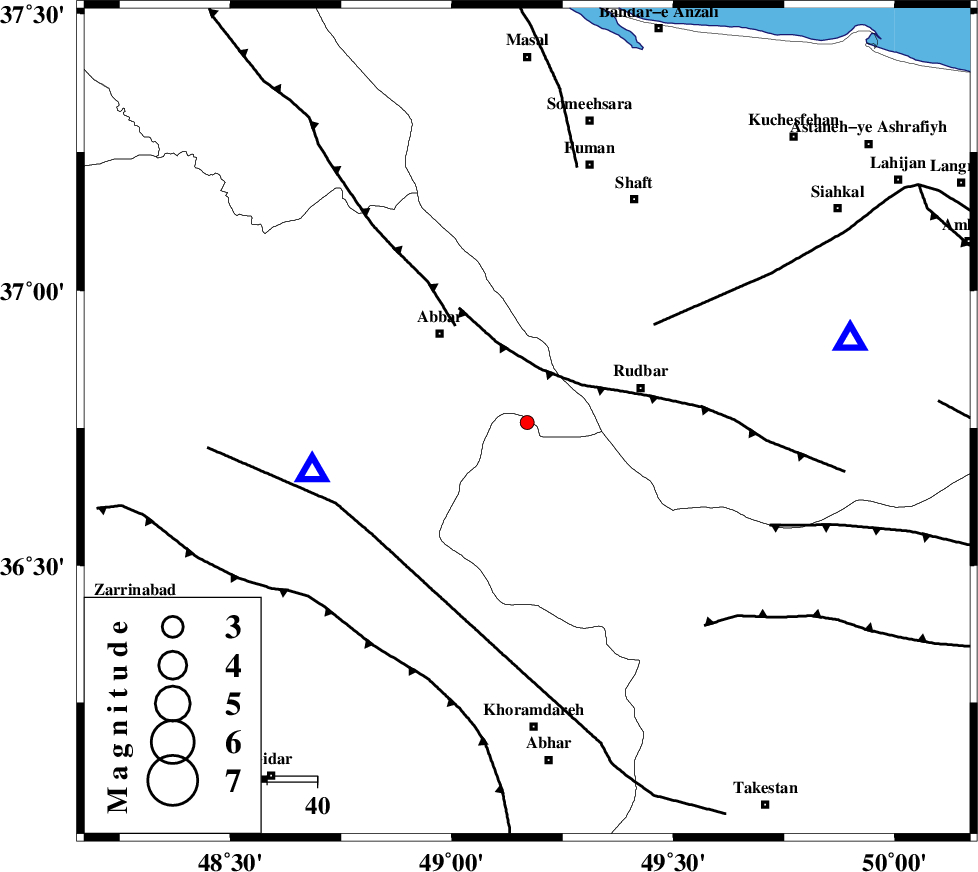

| Location | Lat:36.76 Lon: 49.17 |
| Region | Ghazvin Province, 24 km West of Rudbar |
Nearest Cities |
|
| 13 km North of Sirdan, Ghazvin Province | |
| 18 km North West of Siyahpush, Ghazvin Province | |
| 20 km East of Void, Zanjan Province | |
| 21 km North West of Manjil, Gilan Province | |
| 24 km West of Rudbar, Gilan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| RUDBAR_F (Length: 93 km) , Distance to epicenter: 11 km | |
| MASULEL_F (Length: 90 km) , Distance to epicenter: 24 km | |
| LAHIJAN_F (Length: 92 km) , Distance to epicenter: 32 km | |
| Number of Phases | 6 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >7.2 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 4.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 82406 | IIEES | ZNJK | E | 166.2 | 0.16 | 2012-03-18 20:47:58 | 2012-03-18 08:44:00 | n |
| 82407 | IIEES | ZNJK | N | 193.9 | 0.12 | 2012-03-18 20:47:58 | 2012-03-18 08:44:00 | n |
| 82408 | IIEES | THKV | E | 19.5 | 0.44 | 2012-03-18 20:48:36 | 2012-03-18 08:44:00 | n |
| 82409 | IIEES | THKV | N | 9.7 | 0.12 | 2012-03-18 20:48:37 | 2012-03-18 08:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2012-03-18 20:47:51 | -0.02 | y | 44.2 | 257 | |||
| IIEES | ZNJK | E | Sg | E | 2012-03-18 20:47:57 | 0 | y | 44.2 | 257 | |||
| IIEES | THKV | Z | Pg | E | 2012-03-18 20:48:13 | 0.04 | y | 180 | 121 | |||
| IIEES | THKV | E | Sg | E | 2012-03-18 20:48:35 | 0.04 | y | 180 | 121 | |||
| IIEES | CHTH | Z | Pn | E | 2012-03-18 20:48:16 | 0 | y | 200 | 118 | |||
| IIEES | CHTH | N | Sg | E | 2012-03-18 20:48:40 | -0.07 | y | 200 | 118 | |||
