Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2012-04-21 03:46:09.3 |
| Date & Time (Local) | 1391/2/2 08:16:09.3 |

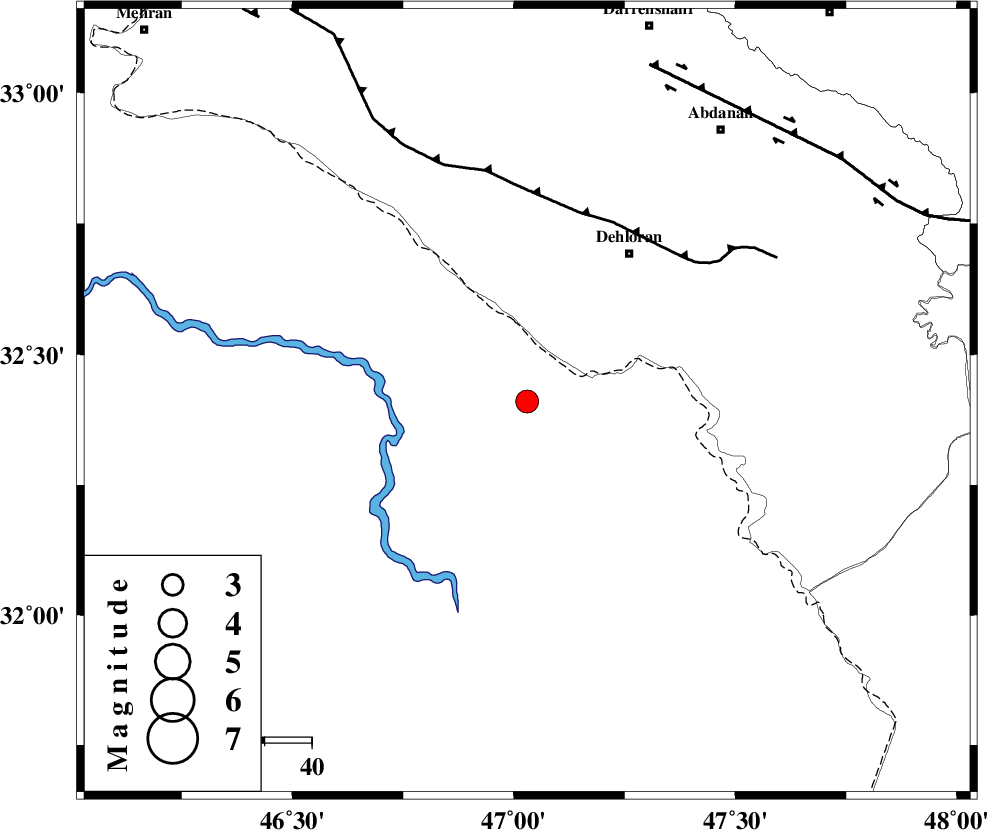

| Location | Lat:32.41 Lon: 47.03 |
| Region | Iraq, 38 km South-West of Dehloran |
Nearest Cities |
|
| 34 km South West of Musian, Ilam Province | |
| 38 km South West of Dehloran, Ilam Province | |
| 46 km South of Bishehzar, Ilam Province | |
| 71 km South West of Abdanan, Ilam Province | |
| 74 km South West of Sarabbagh, Ilam Province | |
| Depth | 39 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 42 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 76 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 99 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 6.8 km |
| Error in Depth | 2.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 82954 | IIEES | SHGR | N | 848.4 | 0.3 | 2012-04-21 03:47:01 | 2012-04-21 04:04:00 | n |
| 82955 | IIEES | SNGE | E | 174 | 0.66 | 2012-04-21 03:47:36 | 2012-04-21 04:04:00 | n |
| 82956 | IIEES | SNGE | N | 89.5 | 0.49 | 2012-04-21 03:47:45 | 2012-04-21 04:04:00 | n |
| 82957 | IIEES | KHMZ | N | 88.4 | 0.53 | 2012-04-21 03:47:38 | 2012-04-21 04:04:00 | n |
| 82958 | IIEES | KHMZ | E | 74.6 | 0.71 | 2012-04-21 03:47:44 | 2012-04-21 04:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2012-04-21 03:46:37 | 0.01 | y | 170 | 101 | |||
| IIEES | SNGE | Z | Pn | E | 2012-04-21 03:46:52 | -0.01 | y | 299 | 5 | |||
| IIEES | SNGE | E | Sg | E | 2012-04-21 03:47:31 | -0.01 | y | 299 | 5 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-04-21 03:46:53 | -0.07 | y | 311 | 61 | |||
| IIEES | ASAO | Z | Pn | E | 2012-04-21 03:47:00 | 0.15 | y | 366 | 49 | |||
| IIEES | GHVR | Z | Pn | E | 2012-04-21 03:47:11 | -0.08 | y | 454 | 58 | |||
| IIEES | CHTH | Z | Pn | E | 2012-04-21 03:47:22 | 0.02 | y | 541 | 43 | |||
