Event Specification
Magnitude |
4.7 |
| Date & Time (UTC) | 2012-08-11 15:43:20.4 |
| Date & Time (Local) | 1391/5/21 20:13:20.4 |

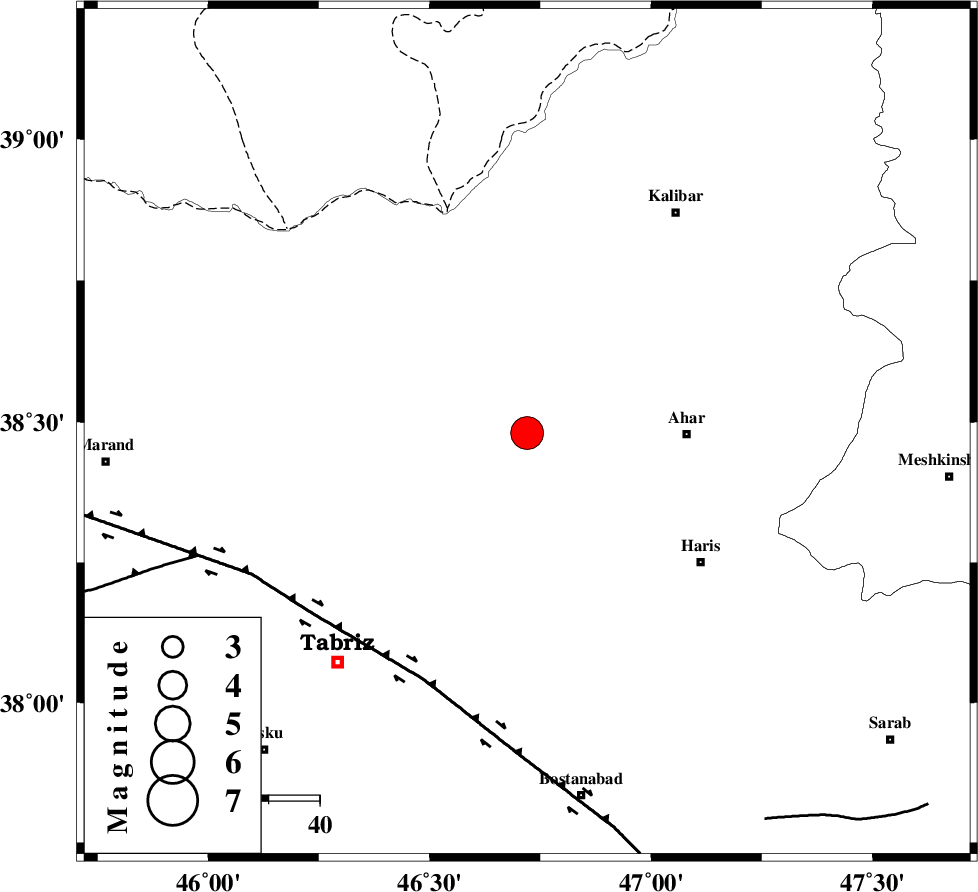

| Location | Lat:38.48 Lon: 46.72 |
| Region | Azarbaijan Sharghi Province, 31 km West of Ahar |
Nearest Cities |
|
| 8 km of Varzagan, Azarbaijan Sharghi Province | |
| 14 km of Tokhmdel, Azarbaijan Sharghi Province | |
| 16 km East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 17 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 22 km South West of Azghan, Azarbaijan Sharghi Province | |
| Depth | 28 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 53 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 69 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 88 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >5.3 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 84963 | IIEES | GRMI | N | 17968.1 | 0.44 | 2012-08-11 15:43:52 | 2012-08-11 04:11:00 | n |
| 84964 | IIEES | GRMI | E | 24371.3 | 0.32 | 2012-08-11 15:43:52 | 2012-08-11 04:11:00 | n |
| 84965 | IIEES | MAKU | N | 5283.6 | 0.68 | 2012-08-11 15:44:23 | 2012-08-11 04:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-11 15:43:38 | -0.06 | y | 108 | 70 | |||
| IIEES | GRMI | N | Sg | E | 2012-08-11 15:43:52 | 0.12 | y | 108 | 70 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-11 15:43:52 | 0.09 | y | 202 | 299 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-11 15:44:16 | -0.08 | y | 202 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-11 15:43:59 | -0.42 | y | 265 | 139 | |||
| IIEES | SNGE | Z | Pn | E | 2012-08-11 15:44:14 | 0.46 | y | 380 | 171 | |||
| IIEES | GHVR | Z | Pn | E | 2012-08-11 15:44:41 | 0.05 | y | 601 | 136 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-08-11 15:44:41 | -0.13 | y | 601 | 150 | |||
