Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2012-08-18 11:21:29.8 |
| Date & Time (Local) | 1391/5/28 15:51:29.8 |

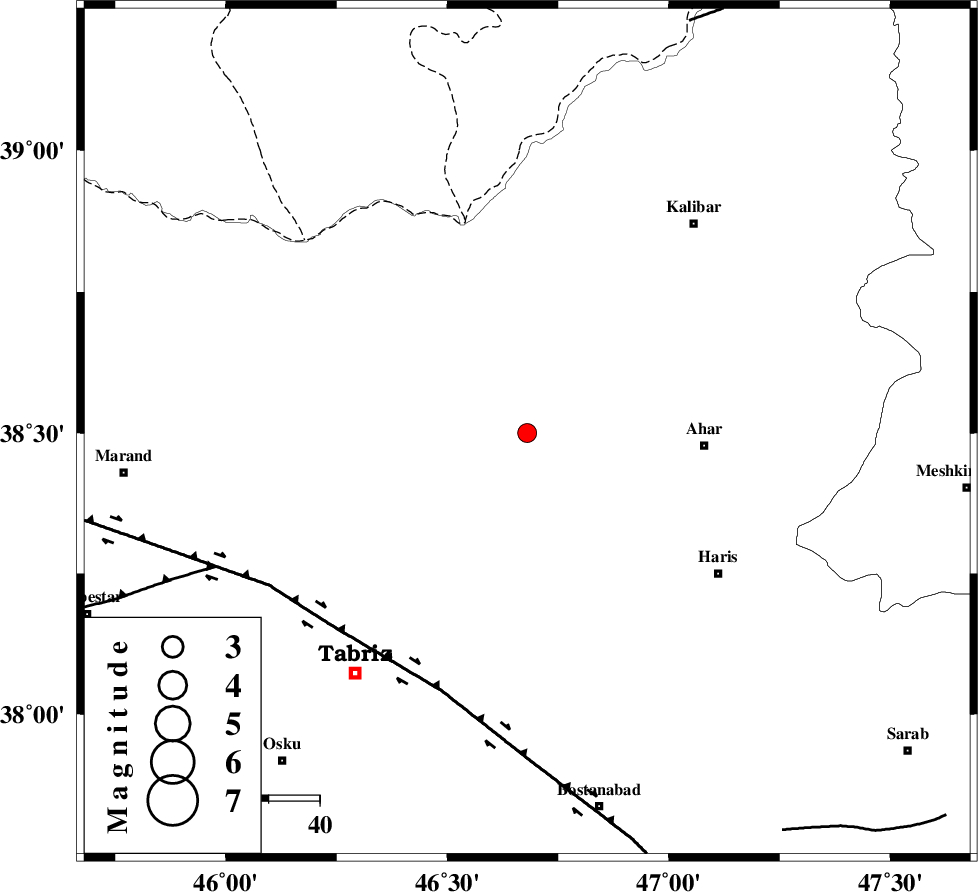

| Location | Lat:38.5 Lon: 46.68 |
| Region | Azarbaijan Sharghi Province, 35 km West of Ahar |
Nearest Cities |
|
| 5 km North of Varzagan, Azarbaijan Sharghi Province | |
| 12 km East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 15 km West of Tokhmdel, Azarbaijan Sharghi Province | |
| 16 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 23 km North of Sarand, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 54 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 67 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 87 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >4.8 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85550 | IIEES | GRMI | N | 137.1 | 0.24 | 2012-08-18 11:22:05 | 2012-08-18 11:40:00 | n |
| 85551 | IIEES | GRMI | E | 179.8 | 0.24 | 2012-08-18 11:22:07 | 2012-08-18 11:40:00 | n |
| 85552 | IIEES | MAKU | E | 74.4 | 0.41 | 2012-08-18 11:22:30 | 2012-08-18 11:40:00 | n |
| 85553 | IIEES | MAKU | N | 77.8 | 0.49 | 2012-08-18 11:22:32 | 2012-08-18 11:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-18 11:21:48 | -0.01 | y | 111 | 72 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-18 11:22:01 | 0 | y | 197 | 299 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-18 11:22:26 | 0 | y | 197 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-18 11:22:10 | 0.01 | y | 270 | 138 | |||
