Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2012-09-01 20:59:33.4 |
| Date & Time (Local) | 1391/6/12 01:29:33.4 |

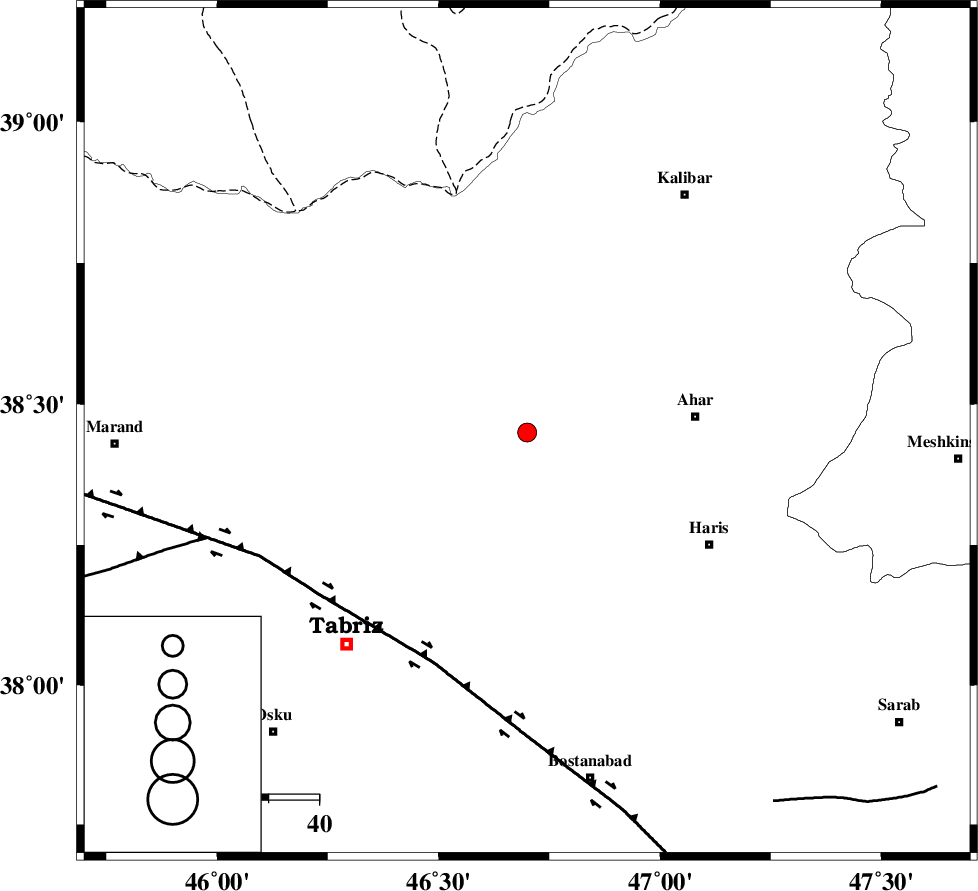

| Location | Lat:38.45 Lon: 46.7 |
| Region | Azarbaijan Sharghi Province, 33 km West of Ahar |
Nearest Cities |
|
| 7 km of Varzagan, Azarbaijan Sharghi Province | |
| 17 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 17 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 19 km North of Sarand, Azarbaijan Sharghi Province | |
| 21 km South of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 49 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 66 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 88 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85903 | IIEES | GRMI | E | 184.8 | 0.2 | 2012-09-01 21:00:06 | 2012-09-02 02:04:00 | n |
| 85904 | IIEES | GRMI | N | 199.9 | 0.28 | 2012-09-01 21:00:08 | 2012-09-02 02:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-09-01 20:59:52 | 0.13 | y | 111 | 68 | |||
| IIEES | GRMI | E | Sg | E | 2012-09-01 21:00:05 | -0.08 | y | 111 | 68 | |||
| IIEES | MAKU | Z | Pn | E | 2012-09-01 21:00:05 | -0.02 | y | 202 | 301 | |||
| IIEES | MAKU | N | Sg | E | 2012-09-01 21:00:31 | -0.01 | y | 202 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-09-01 21:00:13 | -0.03 | y | 264 | 138 | |||
