Event Specification
Magnitude |
5.4 |
| Date & Time (UTC) | 2012-12-05 17:08:12.3 |
| Date & Time (Local) | 1391/9/15 20:38:12.3 |

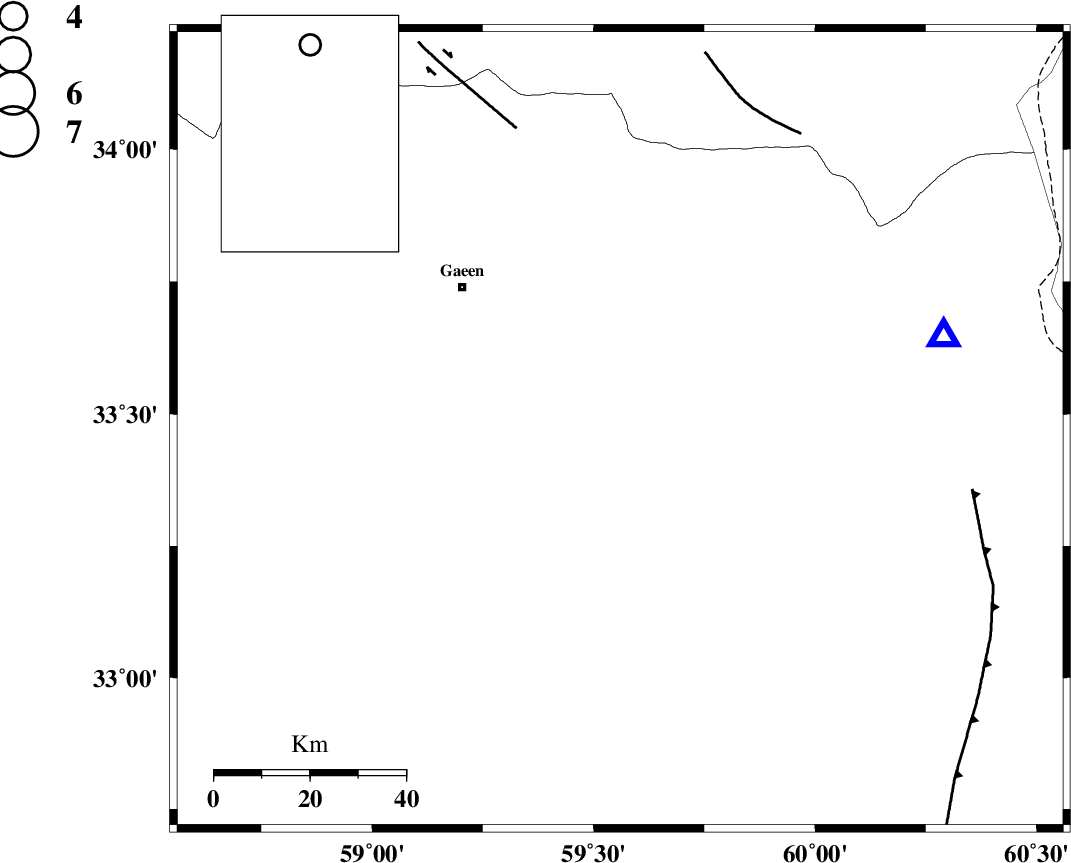

| Location | Lat:33.47 Lon: 59.56 |
| Region | Khorasan(south) Province, 45 km South-East of Qaen |
Nearest Cities |
|
| 18 km East of Khoshk, Khorasan(south) Province | |
| 23 km North West of Zahan, Khorasan(south) Province | |
| 23 km North East of Gazar, Khorasan(south) Province | |
| 34 km North East of Sadeh, Khorasan(south) Province | |
| 35 km South West of Hajiabad, Khorasan(south) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ABRIZ_F (Length: 114 km) , Distance to epicenter: 40 km | |
| NOZAD_F (Length: 27 km) , Distance to epicenter: 42 km | |
| FERDOWS_F (Length: 101 km) , Distance to epicenter: 54 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 10.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87272 | IIEES | SHRT | N | 179000 | 0.56 | 2012-12-05 17:08:36 | 2012-12-05 05:30:00 | n |
| 87273 | IIEES | SHRT | E | 175000 | 0.48 | 2012-12-05 17:08:38 | 2012-12-05 05:30:00 | n |
| 87274 | IIEES | KRBR | N | 4218.7 | 0.6 | 2012-12-05 17:10:42 | 2012-12-05 05:30:00 | n |
| 87275 | IIEES | KRBR | E | 4408.3 | 0.76 | 2012-12-05 17:10:44 | 2012-12-05 05:30:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pg | E | 2012-12-05 17:08:24 | 0.04 | y | 70.3 | 74 | |||
| IIEES | SHRT | N | Sg | E | 2012-12-05 17:08:33 | -0.04 | y | 70.3 | 74 | |||
| IIEES | TABS | Z | Pn | E | 2012-12-05 17:08:48 | -0.1 | y | 228 | 276 | |||
| IIEES | KRBR | Z | Pn | E | 2012-12-05 17:09:18 | 0.03 | y | 469 | 215 | |||
| IIEES | YZKH | Z | Pn | E | 2012-12-05 17:09:19 | 0.04 | y | 480 | 257 | |||
| IIEES | BJRD | Z | Pn | E | 2012-12-05 17:09:23 | 0.07 | y | 508 | 338 | |||
