Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2012-12-05 17:57:03.9 |
| Date & Time (Local) | 1391/9/15 21:27:03.9 |
| Location | Lat:33.45 Lon: 59.58 |
| Region | Khorasan(south) Province, 48 km South-East of Qaen |
Nearest Cities |
|
| 20 km North West of Zahan, Khorasan(south) Province | |
| 20 km East of Khoshk, Khorasan(south) Province | |
| 22 km North East of Gazar, Khorasan(south) Province | |
| 34 km North West of Derakhsh, Khorasan(south) Province | |
| 35 km South West of Hajiabad, Khorasan(south) Province | |
| Depth | 18 km |
| Agency | |

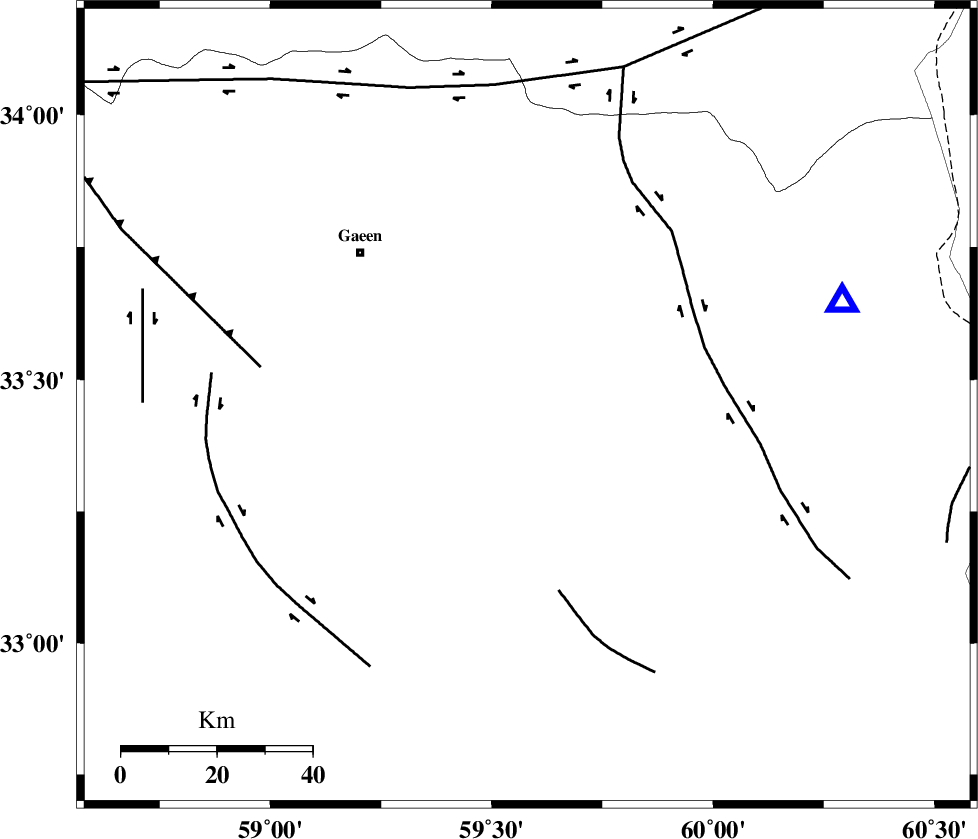

Faults within 150 km: |
|
| ABRIZ_F (Length: 114 km) , Distance to epicenter: 39 km | |
| NOZAD_F (Length: 27 km) , Distance to epicenter: 39 km | |
| FERDOWS_F (Length: 101 km) , Distance to epicenter: 56 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 5.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87276 | IIEES | SHRT | E | 650.4 | 0.2 | 2012-12-05 17:57:26 | 2012-12-05 06:31:00 | n |
| 87277 | IIEES | KRBR | E | 19.1 | 0.6 | 2012-12-05 17:59:34 | 2012-12-05 06:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pg | E | 2012-12-05 17:57:16 | 0.01 | y | 69.1 | 72 | |||
| IIEES | SHRT | E | Sg | E | 2012-12-05 17:57:24 | -0.01 | y | 69.1 | 72 | |||
| IIEES | TABS | Z | Pn | E | 2012-12-05 17:57:39 | 0.07 | y | 230 | 276 | |||
| IIEES | KRBR | Z | Pn | E | 2012-12-05 17:58:09 | -0.23 | y | 469 | 216 | |||
| IIEES | KRBR | E | Sg | E | 2012-12-05 17:59:14 | 0.05 | y | 469 | 216 | |||
| IIEES | YZKH | Z | Pn | E | 2012-12-05 17:58:11 | 0.1 | y | 482 | 257 | |||
| IIEES | BJRD | Z | Pn | E | 2012-12-05 17:58:14 | -0.01 | y | 511 | 338 | |||
| IIEES | MRVT | Z | Pn | E | 2012-12-05 17:58:21 | -0.02 | y | 564 | 327 | |||
