Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2012-12-09 01:36:11.5 |
| Date & Time (Local) | 1391/9/19 05:06:11.5 |

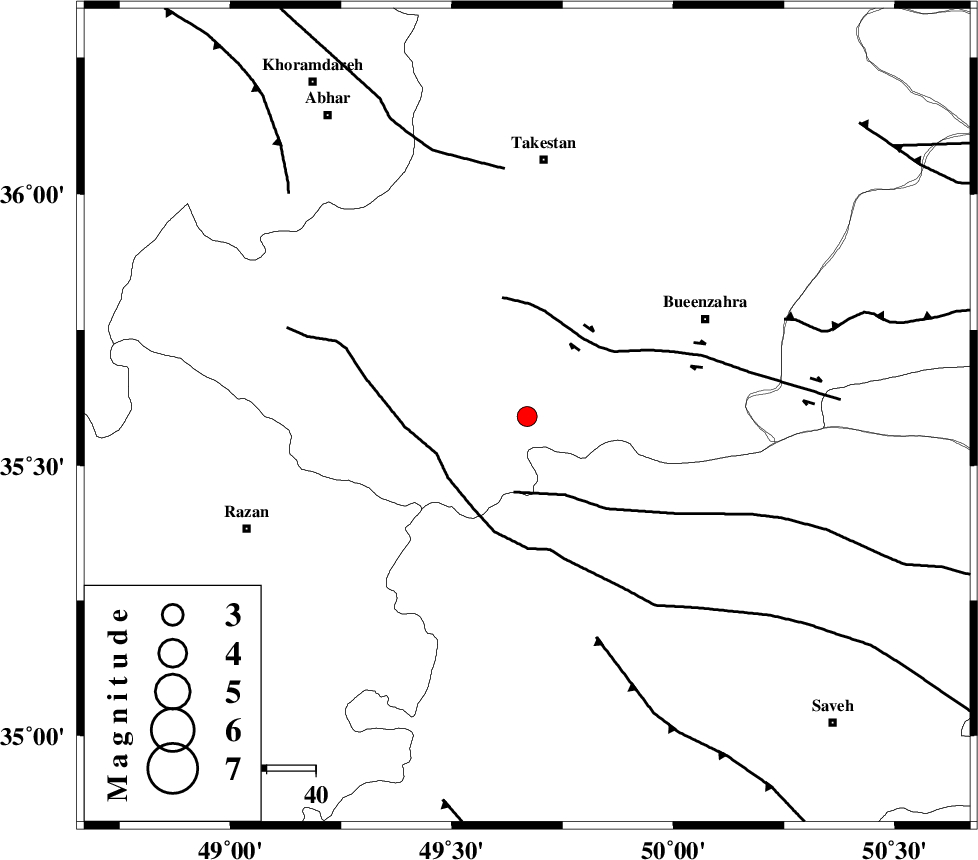

| Location | Lat:35.59 Lon: 49.67 |
| Region | Ghazvin Province, 53 km South of Takestan |
Nearest Cities |
|
| 18 km East of Kolanjin, Ghazvin Province | |
| 22 km South of Danesfahan, Ghazvin Province | |
| 25 km North West of Duzaj, Markazi Province | |
| 31 km South West of Sagezabad, Ghazvin Province | |
| 35 km South West of Shal, Ghazvin Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| S_PARANDAK_F (Length: 116 km) , Distance to epicenter: 16 km | |
| IPAK_F (Length: 80 km) , Distance to epicenter: 20 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 20 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >10.2 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 22.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87299 | IIEES | THKV | E | 234.6 | 0.12 | 2012-12-09 01:36:46 | 2012-12-09 02:02:00 | n |
| 87300 | IIEES | THKV | N | 265.1 | 0.12 | 2012-12-09 01:36:52 | 2012-12-09 02:02:00 | n |
| 87301 | IIEES | GHVR | N | 94.3 | 0.44 | 2012-12-09 01:37:10 | 2012-12-09 02:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | THKV | Z | Pg | E | 2012-12-09 01:36:31 | 0.07 | y | 115 | 71 | |||
| IIEES | THKV | N | Sg | E | 2012-12-09 01:36:45 | -0.05 | y | 115 | 71 | |||
| IIEES | ZNJK | Z | Pg | E | 2012-12-09 01:36:36 | -0.01 | y | 150 | 324 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-12-09 01:36:44 | -0.01 | y | 207 | 173 | |||
