Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2012-12-12 06:51:59.8 |
| Date & Time (Local) | 1391/9/22 10:21:59.8 |

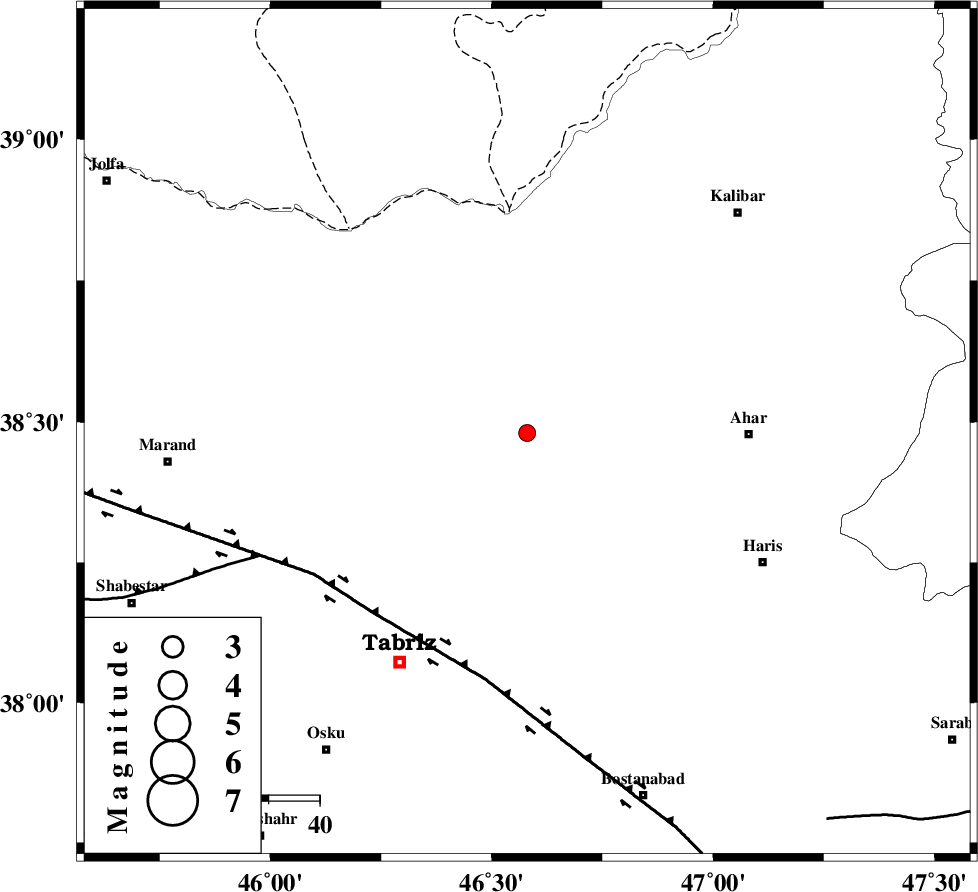

| Location | Lat:38.48 Lon: 46.58 |
| Region | Azarbaijan Sharghi Province, 44 km West of Ahar |
Nearest Cities |
|
| 5 km of Varzagan, Azarbaijan Sharghi Province | |
| 9 km of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 21 km North of Sarand, Azarbaijan Sharghi Province | |
| 23 km South East of Joshin, Azarbaijan Sharghi Province | |
| 23 km South West of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 47 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 58 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 92 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 6.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87323 | IIEES | GRMI | E | 78.4 | 0.17 | 2012-12-12 06:52:38 | 2012-12-12 08:22:00 | n |
| 87324 | IIEES | GRMI | N | 87.6 | 0.21 | 2012-12-12 06:52:38 | 2012-12-12 08:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-12-12 06:52:19 | -0.22 | y | 120 | 72 | |||
| IIEES | GRMI | N | Sg | E | 2012-12-12 06:52:34 | 0.12 | y | 120 | 72 | |||
| IIEES | MAKU | Z | Pg | E | 2012-12-12 06:52:31 | -0.02 | y | 191 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-12-12 06:52:41 | 0.22 | y | 274 | 137 | |||
| IIEES | ZNJK | E | Sg | E | 2012-12-12 06:53:17 | -0.11 | y | 274 | 137 | |||
