Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2013-02-14 05:23:24.5 |
| Date & Time (Local) | 1391/11/26 08:53:24.5 |

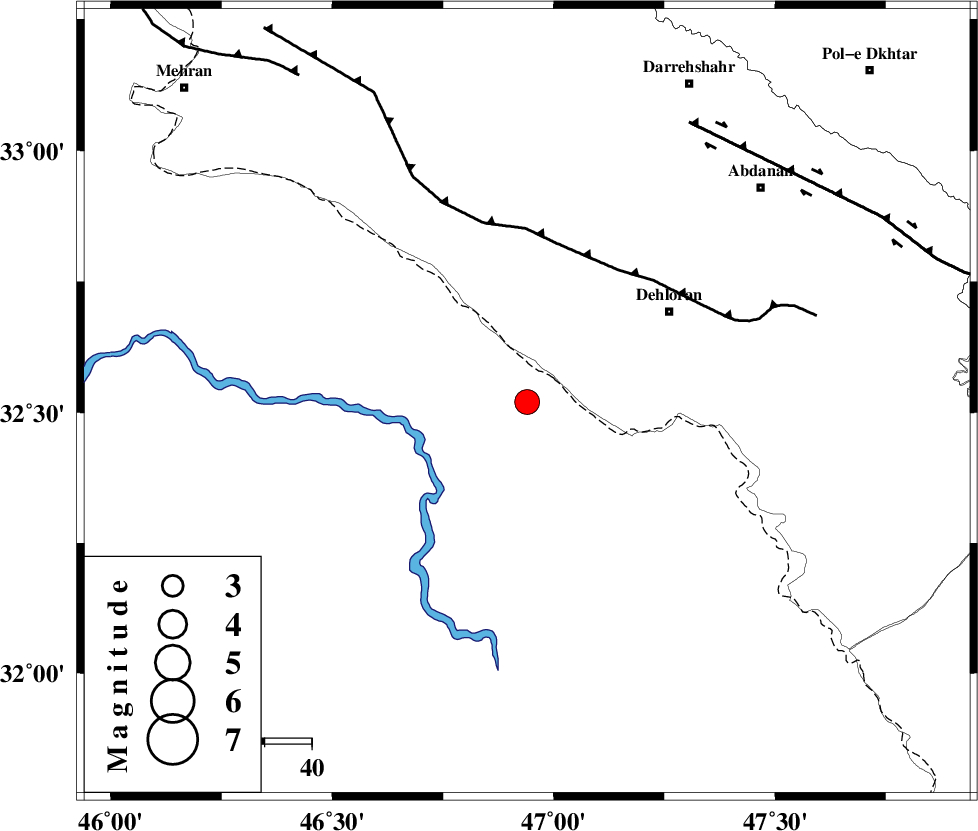

| Location | Lat:32.52 Lon: 46.94 |
| Region | Iraq, 36 km South-West of Dehloran |
Nearest Cities |
|
| 34 km South of Bishehzar, Ilam Province | |
| 36 km South West of Dehloran, Ilam Province | |
| 39 km West of Musian, Ilam Province | |
| 67 km South West of Abdanan, Ilam Province | |
| 72 km South West of Sarabbagh, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 34 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 69 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 84 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 7.3 km |
| Error in Depth | 3.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87888 | IIEES | SNGE | E | 221.8 | 0.7 | 2013-02-14 05:24:49 | 2013-02-14 06:12:00 | n |
| 87889 | IIEES | SNGE | N | 162.4 | 0.64 | 2013-02-14 05:24:52 | 2013-02-14 06:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2013-02-14 05:23:54 | -0.07 | y | 182 | 104 | |||
| IIEES | SNGE | Z | Pn | E | 2013-02-14 05:24:08 | 0 | y | 288 | 8 | |||
| IIEES | SNGE | E | Sg | E | 2013-02-14 05:24:45 | -0.02 | y | 288 | 8 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-02-14 05:24:11 | 0.11 | y | 313 | 64 | |||
| IIEES | ASAO | Z | Pn | E | 2013-02-14 05:24:17 | -0.08 | y | 365 | 51 | |||
| IIEES | GHVR | Z | Pn | E | 2013-02-14 05:24:28 | 0.09 | y | 456 | 60 | |||
