Event Specification
Magnitude |
2.2 |
| Date & Time (UTC) | 2013-02-28 06:23:16.0 |
| Date & Time (Local) | 1391/12/10 09:53:16.0 |

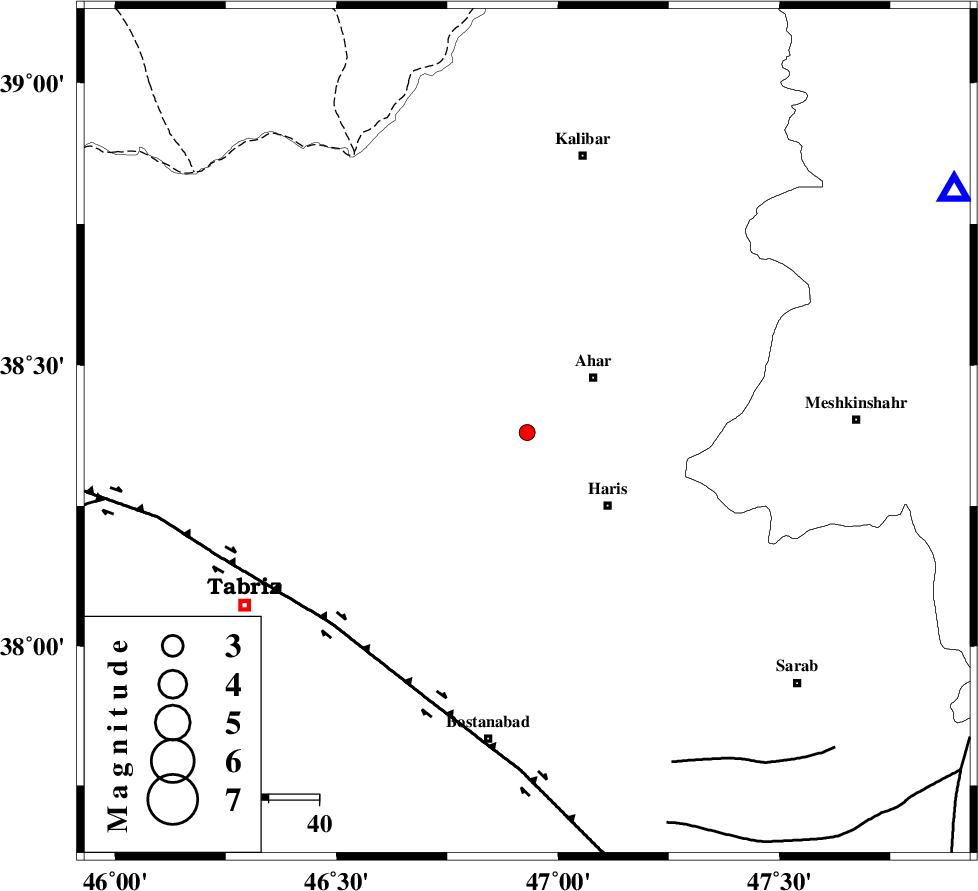

| Location | Lat:38.38 Lon: 46.93 |
| Region | Azarbaijan Sharghi Province, 17 km West of Ahar |
Nearest Cities |
|
| 8 km North of Nikcheh, Azarbaijan Sharghi Province | |
| 12 km West of Khuniq, Azarbaijan Sharghi Province | |
| 16 km North West of Maqsudlu, Azarbaijan Sharghi Province | |
| 17 km North of Bilverdi, Azarbaijan Sharghi Province | |
| 17 km West of Ahar, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 54 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 71 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 84 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88052 | IIEES | GRMI | E | 68 | 0.12 | 2013-02-28 06:23:49 | 2013-02-28 07:02:00 | n |
| 88053 | IIEES | GRMI | N | 73.8 | 0.16 | 2013-02-28 06:23:49 | 2013-02-28 07:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-02-28 06:23:32 | -0.05 | y | 96.5 | 60 | |||
| IIEES | GRMI | E | Sg | E | 2013-02-28 06:23:44 | 0.02 | y | 96.5 | 60 | |||
| IIEES | MAKU | Z | Pn | E | 2013-02-28 06:23:51 | 0.11 | y | 223 | 300 | |||
| IIEES | MAKU | E | Sg | E | 2013-02-28 06:24:19 | -0.06 | y | 223 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-02-28 06:23:54 | -0.02 | y | 245 | 140 | |||
