Event Specification
Magnitude |
4.1 |
| Date & Time (UTC) | 2013-04-09 17:21:00.3 |
| Date & Time (Local) | 1392/1/20 21:51:00.3 |

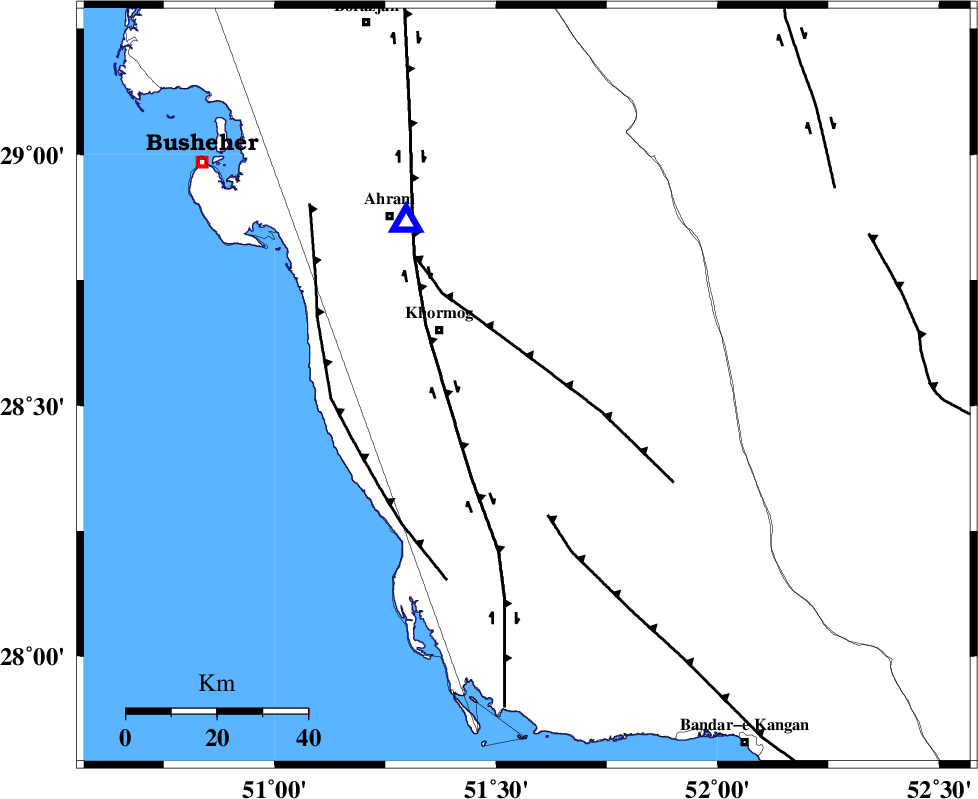

| Location | Lat:28.54 Lon: 51.57 |
| Region | Bushehr Province, 23 km South-East of Khormog |
Nearest Cities |
|
| 18 km North of Baduleh, Bushehr Province | |
| 20 km East of Buheyri, Bushehr Province | |
| 23 km South East of Khormog, Bushehr Province | |
| 23 km North of Kaki, Bushehr Province | |
| 25 km North West of Shanbeh, Bushehr Province | |
| Depth | 22 km |
| Agency | |
Faults within 150 km: |
|
| MFF5 (Length: 74 km) , Distance to epicenter: 8 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 18 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 29 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >11.2 km |
| Error in Longitude | 9.8 km |
| Error in Depth | 3.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88476 | IIEES | AHRM | N | 14664.2 | 0.52 | 2013-04-09 17:21:23 | 2013-04-09 06:37:00 | n |
| 88477 | IIEES | AHRM | E | 13199 | 0.56 | 2013-04-09 17:21:24 | 2013-04-09 06:37:00 | n |
| 88478 | IIEES | GHIR | E | 3645.9 | 0.56 | 2013-04-09 17:21:47 | 2013-04-09 06:37:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-04-09 17:21:08 | -0.01 | y | 44.7 | 323 | |||
| IIEES | AHRM | N | Sg | E | 2013-04-09 17:21:14 | 0 | y | 44.7 | 323 | |||
| IIEES | GHIR | Z | Pg | E | 2013-04-09 17:21:23 | 0.01 | y | 142 | 101 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-04-09 17:22:21 | 0.01 | y | 596 | 346 | |||
